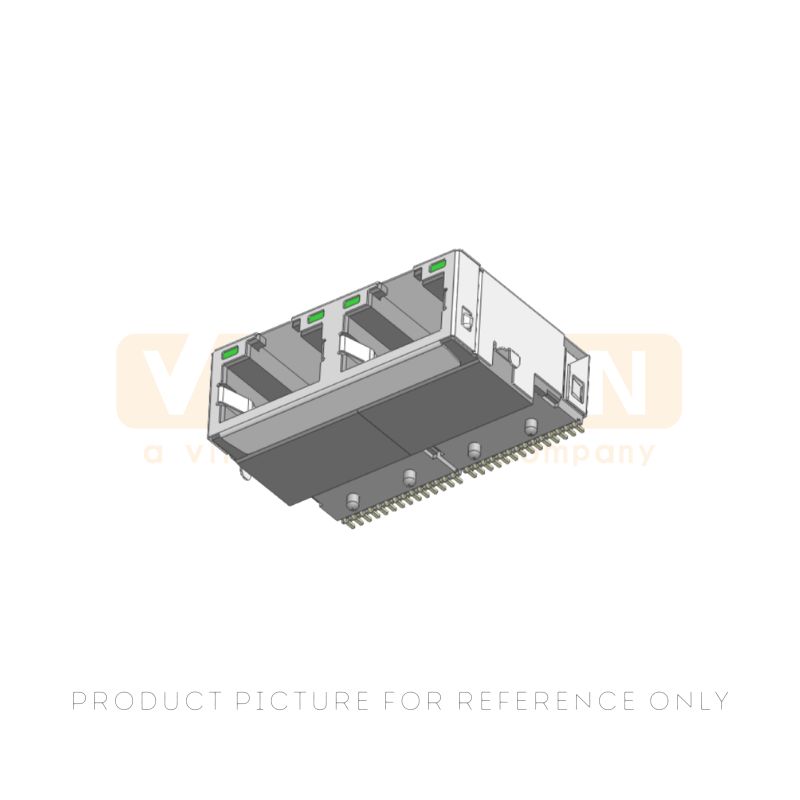

Dual Port 1000Base-T PoE RJ45 Jack Ethernet Connector J12RB15N7DNF7（Cross out BelFuse 0826-1X2T-HS-F）

Product Overview

This dual port PoE RJ45 jack integrates 1000Base-T magnetics with 90W Power over Ethernet capability in one shielded housing. PBT and LCP UL94V-0 construction, gold plated phosphor bronze contacts and tri-color LEDs provide reliable Gigabit links, while 350uH inductance and 2250VDC isolation suit PoE switches, wireless access points and NVR systems.

Product Specifications

Product Features

• 90W PoE Capability: Delivers up to 90W with 950 mA balanced DC line current for powering network devices.
• Gigabit Magnetics Integration: Built-in 1000Base-T transformer with 350 uH inductance simplifies PHY circuit design.
• Tri-Color LED Indication: Green, yellow and orange LEDs show link and activity status for each port.
• 2250VDC Isolation: Hi-pot rated barrier between PCB and cable sides protects powered circuits.
• Durable Through-Hole Design: RJ45 Connector rated for 750 mating cycles and wave soldering at 265 Degree C.

Packing Details

Each J12RB15N7DNF7 unit is packed in anti-static PE bags, seated in protective trays and boxed in standard export cartons. Bulk quantities ship on pallets with desiccant to protect the gold plated contacts and stainless shields during ocean and air transportation.

Applications

• PoE Switches: Access switches delivering power and Gigabit data together.
• Wireless Access Points: Ceiling and outdoor APs powered over the data cable.
• Network Video Recorders: Surveillance NVRs connecting multi-port camera links.
• PTZ IP Cameras: High power dome cameras requiring 90W PoE budgets.
• Industrial Gateways: Embedded gateways in noisy factory environments.

Frequently Asked Questions (FAQ)

Q: How much power can this PoE RJ45 jack deliver to powered devices?

A: The J12RB15N7DNF7 supports up to 90W PoE with a balanced DC line current of 950 mA maximum at 57VDC continuous across any two of the four available pairs. Its 2250VDC isolation barrier keeps the power path safely separated from the PHY circuitry.

Q: Why choose a dual port RJ45 magnetic jack for a PoE switch design?

A: A dual port part puts two shielded Gigabit PoE connections in one footprint, halving placement area compared with two single port jacks. Shared magnetics specifications simplify sourcing and reflow or wave soldering, while separate tri-color LEDs keep per port status visible for users and installers.

Q: Which LED colors are built into this RJ45 connector?

A: Each port carries green, yellow and orange LEDs. Green and yellow typically indicate link speed and activity, while the orange LED can signal PoE power status or custom conditions defined by the system firmware, giving equipment makers flexible status reporting options.
