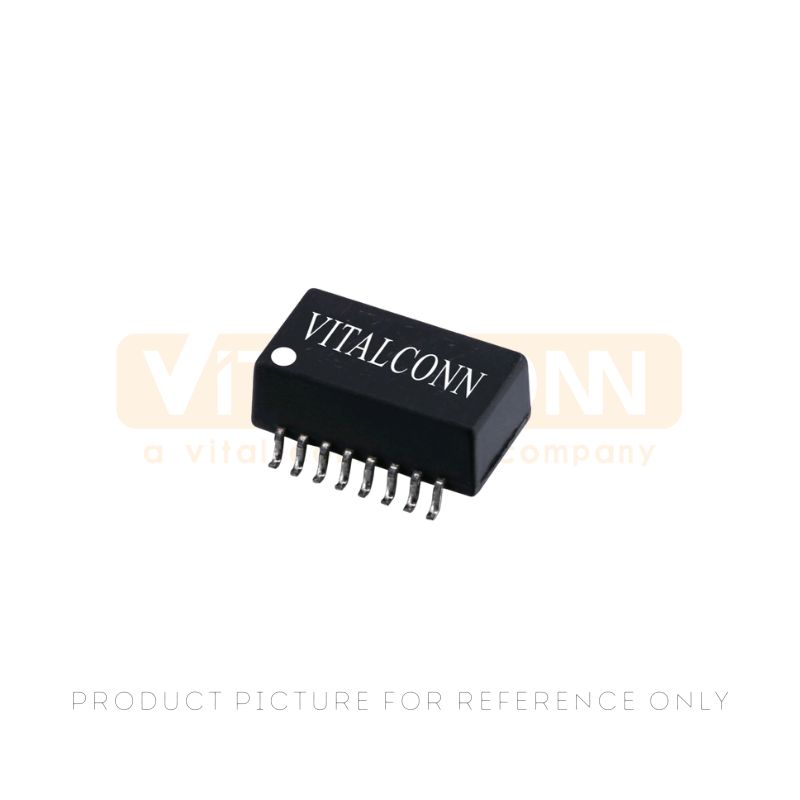

Networking Connectors LAN Transformer Modules10 100 Base-T 16-Pin SMD LAN Transformer Modules TH16060S4
The TH16060S4 is a 16-pin SMD LAN Transformer Modules designed for 10/100 Base-T Ethernet applications, providing reliable signal coupling and isolation for high-speed networking equipment.
Part Number :
TH16060S4Product Category :
LAN Magnetics
Product Overview
This TH16060S4 SMD LAN Transformer Modules features a compact surface-mount package for automated assembly, ensuring stable Ethernet module performance in industrial and commercial networking applications.
Product Specifications / Attributes
● Package: 16-pin SMD (Surface Mount Device)
● Application: 10/100 Base-T Ethernet
● Turns Ratio: 1CT:1CT (TX & RX)
● OCL: 350 uH Min @100kHz, 100mV with 8mA DC Bias
● Insertion Loss: -1.1 dB Max (0.1~125 MHz)
● Return Loss: -16 to -14 dB Min (1~60 MHz), -14 to -10 dB Min (60~100 MHz)
● Common Mode Rejection: -35 dB Min (1~60 MHz), -30 dB Min (60~100 MHz)
● Cross Talk: -40 dB Min (1~60 MHz), -38 dB Min (60~100 MHz)
● HIPOT: 1500 VAC
● Operating Temperature: -40°C to +85°C
● RoHS Compliant
Features&Benefits
● RoHS Compliant design for environmental requirements
● SMD package suitable for automated pick-and-place assembly
● Designed to meet IR reflow soldering requirements
● Operating temperature range from -40°C to +85°C for wide application
Packing Details
If you need detailed information about our packaging specifications and requirements, please feel free to contact us directly. We will be happy to provide you with the details.
Applications
● 10/100 Base-T Ethernet switches and routers
● Industrial Ethernet modules
● Network interface cards (NICs)
● Embedded networking systems
