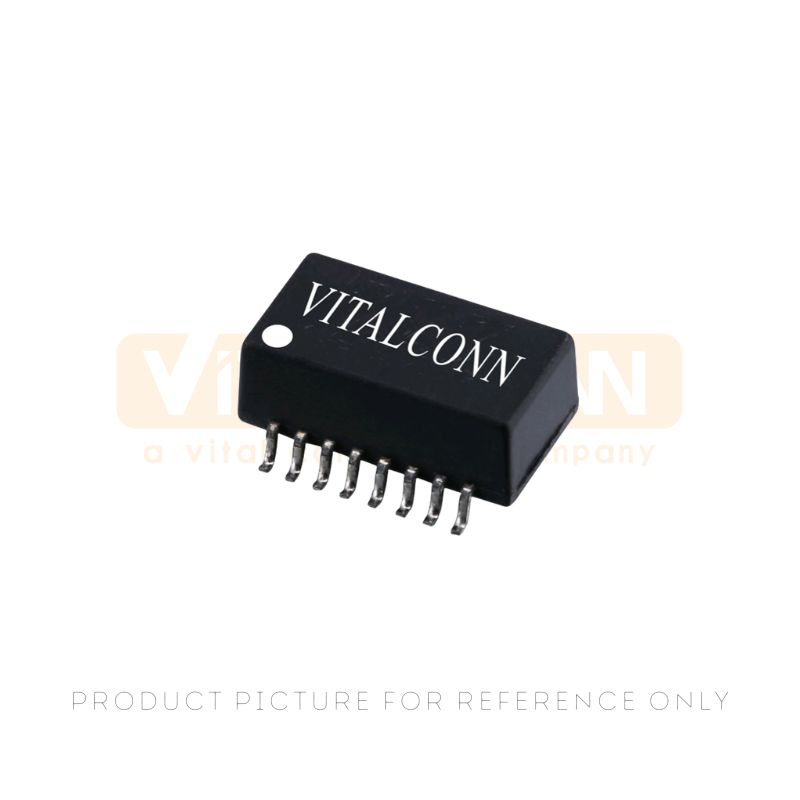

Networking Connectors LAN Transformer Modules10 Base-T SMT LAN Transformer Modules TH16091S1
The TH16091S1 is a 10 Base-T SMT LAN Transformer Modules designed for 10 Mbps Ethernet applications, providing reliable signal isolation and impedance matching for basic network connectivity.
Part Number :
TH16091S1Product Category :
LAN Magnetics
Product Overview
This TH16091S1 10 Base-T SMT LAN Transformer Modules features a compact 16-pin surface-mount package, offering a cost-effective solution for low-speed Ethernet module designs in embedded systems and industrial applications.
Product Specifications / Attributes
● Package: 16-Pin SMD (Surface Mount Device)
● Application: 10 Base-T Ethernet
● Turns Ratio: 1CT:1CT & 1CT:1.41CT (Primary Pins 1~3 & 6~8)
● Primary OCL: 130 uH Min @100kHz, 100mV
● Leakage Inductance: 0.35 uH Max
● Cw/w: 12 pF Max
● Primary DCR: 0.5 Ω Max
● HIPOT: 2000 VAC / 5mA / 1s
● Operating Temperature: -20°C to +80°C
● Storage Temperature: -40°C to +85°C
● RoHS Compliant
Features&Benefits
● Cost-effective 10 Base-T solution for low-speed applications
● Dual turns ratio (1CT:1CT & 1CT:1.41CT) for design flexibility
● RoHS Compliant for environmental requirements
● Designed to meet IR reflow soldering requirements
● Compact SMD package for space-constrained designs
Packing Details
If you need detailed information about our packaging specifications and requirements, please feel free to contact us directly. We will be happy to provide you with the details.
Applications
● 10 Base-T Ethernet networks
● Embedded systems with low-speed Ethernet
● Industrial control and automation
● Legacy network equipment
