Networking Connectors LAN Transformer Modules1000 BASE T Quad Port LAN Transformer Module with PoE Plus TG88010D1
1000 BASE T Quad Port LAN Transformer Module with PoE Plus design and IEEE 802.3at compliance for reliable Gigabit Ethernet networking applications.
Part Number :
TG88010D1Product Category :
LAN Magnetics
Product Overview

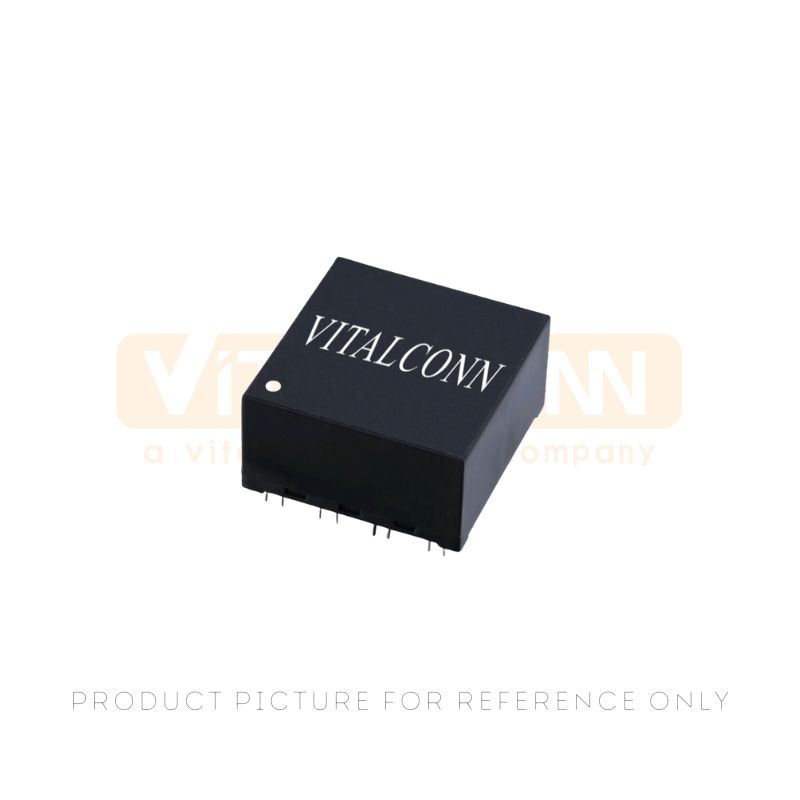

1000 BASE T Quad Port LAN Transformer Module designed for Gigabit Ethernet networking with PoE Plus capability. TG88010D1 complies with IEEE 802.3at requirements and supports stable signal transmission across 1000 BASE-T applications.
Product Specifications / Attributes
| Specification | Details |
|---|---|
| Product Type | LAN Transformer Module |
| Part Number | TG88010D1 |
| Module Type | 1000 BASE-T Quad Port Magnetic Module |
| Ethernet Standard | IEEE 802.3at |
| Data Rate | 1000 BASE-T |
| PoE Support | PoE Plus |
| Operating Temperature | -40°C to +85°C |
| Storage Temperature | -25°C to +85°C |
| OCL | 350 uH Min. @100 kHz 100 mV with 8 mA DC Bias; 200 uH Min. @100 kHz 100 mV with 18 mA DC Bias |
| Insertion Loss | -1.0 dB Max. at 1-100 MHz |
| Return Loss | -18 dB Min. at 1-30 MHz; -16 dB Min. at 40 MHz; -14 dB Min. at 50 MHz; -12 dB Min. at 60-80 MHz; -10 dB Min. at 100 MHz |
| Hi-Pot | 1500 Vrms Min. |
Features&Benefits
Packing Details
If you need detailed information about our packaging specifications and requirements, please feel free to contact us directly. We will be happy to provide you with the details.
Applications
Frequently Asked Questions (FAQ)
Q: What Ethernet standard does the TG88010D1 LAN transformer module support?
A: TG88010D1 is designed for 1000 BASE-T applications and complies with IEEE 802.3at requirements for PoE Plus applications.
Q: How does the PoE Plus feature benefit a Gigabit Ethernet transformer module?
A: PoE Plus support enables the magnetic module to be used in Ethernet equipment designed for power and data transmission over network connections.
Q: What is the operating temperature range of this 1000 BASE-T magnetic module?
A: TG88010D1 supports an operating temperature range of -40°C to +85°C.
