Networking Connectors LAN Transformer Modules10/100 Base-T 16-Pin SMT LAN Transformer Modules TH16060S2

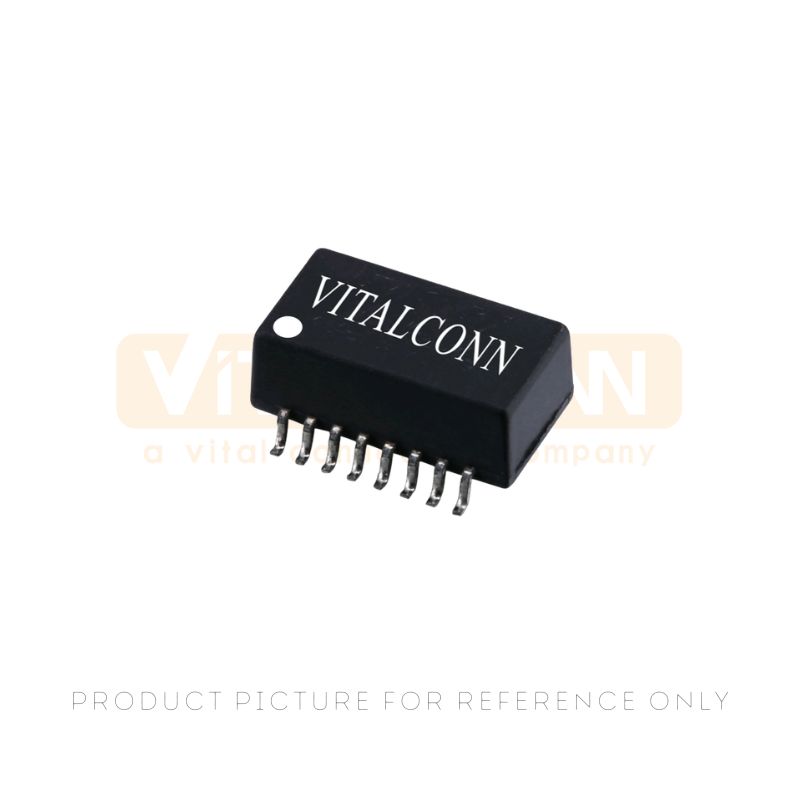

The TH16060S2 is a 16-pin SMT LAN Transformer Modules designed for 10/100 Base-T Ethernet applications, providing reliable signal isolation and impedance matching with a high isolation voltage of 3000 VAC for enhanced safety.
Part Number :
TH16060S2Product Category :
LAN Magnetics
Product Overview
This TH16060S2 SMT LAN Transformer Modules features a compact surface-mount package with bottom open construction, supporting a wide operating temperature range from -40°C to +85°C for industrial networking environments.
Product Specifications / Attributes
● OCL: 350 uH Min @100kHz, 100mV with 8mA DC Bias
● Turns Ratio: 1CT:1CT (TX and RX) ±5%
● Insertion Loss: -1.1 dB Max (0.1~125 MHz)
● Return Loss: -16 ~ -14 dB Min (1~60 MHz), -14 ~ -10 dB Min (60~100 MHz)
● Common Mode Rejection: -42 dB Min @30 MHz, -37 dB Min @50 MHz, -33 dB Min @100 MHz
● Cross Talk: -40 dB Min (1~60 MHz), -38 dB Min (60~100 MHz)
● HI-POT: 3000 VAC
● Operating Temperature: -40°C to +85°C
Features&Benefits
● RoHS Compliant with peak solder rating 260°C / 35 Sec
● Designed to meet IR reflow requirements
● 16-pin SMT package for space-constrained designs
● High isolation voltage of 3000 VAC for enhanced safety
● Bottom open construction for easy inspection and cleaning
Packing Details
If you need detailed information about our packaging specifications and requirements, please feel free to contact us directly. We will be happy to provide you with the details.
Applications
● 10/100 Base-T Ethernet switches and routers
● Industrial Ethernet equipment
● Embedded networking systems
● VoIP phone systems
