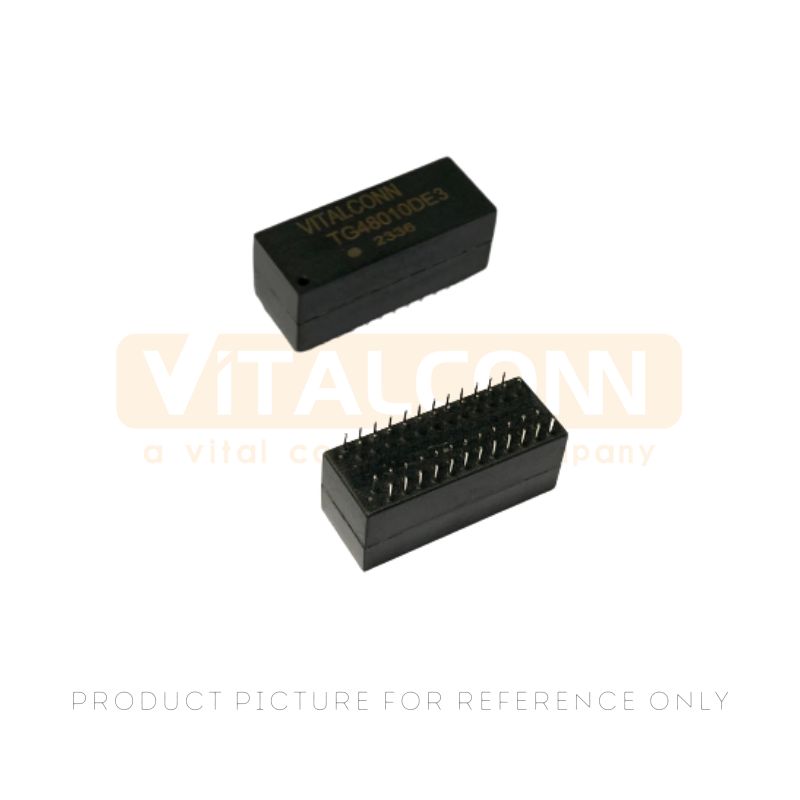

Networking Connectors LAN Transformer Modules10/100/1000 BASE-T Dual Port LAN Transformer Modules Gigabit Ethernet TG48010DE3
Discover the TG48010DE3 LAN Magnetics module offering 10/100/1000 BASE-T dual-port capability, full IEEE 802.3ab compliance, and exceptional high-speed signal integrity for robust networking designs.
Part Number :
TG48010DE3Product Category :
LAN Magnetics
Product Overview
The TG48010DE3 is a dual-port 10/100/1000 BASE-T LAN Magnetics module engineered for optimal network signal processing and isolation. Compliant with IEEE 802.3ab standards, it delivers superior EMI performance, stable signal transmission, and durable protection across industrial operating temperatures ranging from 0°C to +70°C.
Product Specifications / Attributes
| Parameter | Specification |
| Product Type |
LAN Transformer Modules |
| Standard |
IEEE 802.3ab Compliant |
| Port Configuration |
Dual Port |
| Speed |
10/100/1000 BASE-T |
| Open Circuit Inductance (OCL) |
350uH Min @ 100KHz/0.1V with 8mA DC Bias |
| Hi-Pot Isolation |
1500Vrms |
| Turns Ratio |
1:1 ± 3% |
| Leakage Inductance (LK) |
0.5uH Max @ 100KHz/0.2V |
| Interwinding Capacitance (Cw/w) |
35pF Max @ 100KHz/0.2V |
| DC Resistance (D.C.R) |
1.2 ohm Max |
| Operating Temperature |
0°C to +70°C |
| Environmental Compliance |
RoHS Compliant |
Features&Benefits
Packing Details
If you need detailed information about our packaging specifications and requirements, please feel free to contact us directly. We will be happy to provide you with the details.
Applications
Enterprise Ethernet switches and routers
Network Interface Cards (NICs)
Industrial automation communication hardware
Broadband access gateways and hubs
Dual-port Gigabit network infrastructure equipment
Frequently Asked Questions (FAQ)
Q: What standard does this LAN Transformer Modules support?
A: The TG48010DE3 is fully compliant with the IEEE 802.3ab standard, providing seamless compatibility with Gigabit 10/100/1000 BASE-T Ethernet applications.
Q: What is the isolation rating of the TG48010DE3 LAN Magnetics?
A: This module features a high dielectric isolation (Hi-POT) of 1500Vrms, ensuring safe signal isolation and equipment protection against electrical surges.
Q: What is the operating temperature range for this module?
A: It is designed for reliable operation across standard commercial environments, supporting temperatures from 0°C to +70°C with an extended storage range.
