12 Pin 0.50 mm Pitch FPC Connector with ZIF design for compact electronic applications. F05057FA012M1WLJ9 provides a compact 12 pin FPC interface.
Part Number :
F05057FA012M1WLJ9Product Category :
FPC connector
Product Overview

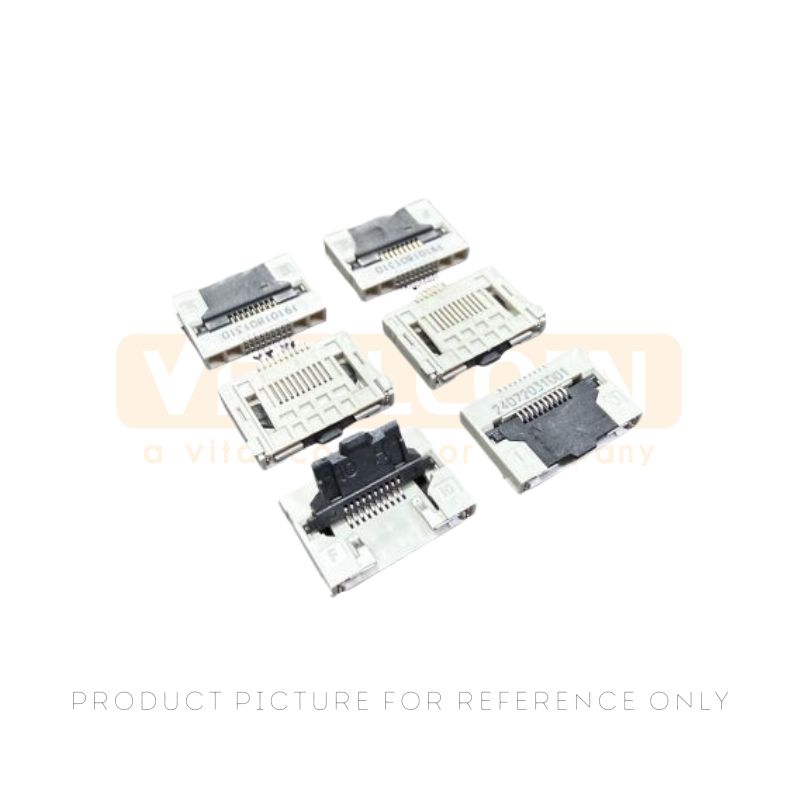

The F05057FA012M1WLJ9 is a ZIF FPC connector featuring 12 pins, a 0.50 mm pitch, and 2.1 mm height. Its compact assembly design supports space-conscious electronic applications.
Product Specifications
| Specification | Details |
|---|---|
| Product Type | ZIF FPC Connector |
| Part Number | F05057FA012M1WLJ9 |
| Connector Type | FPC Connector |
| Number of Pins | 12 |
| Pitch | 0.50 mm |
| Height | 2.1 mm |
| Locking Type | ZIF |
| Product Structure | Assembly |
| Drawing Number | VTC-TZ-J9-040 |
| Revision | A0 |
| Unit | mm |
| Manufacturer Part Series | FCN J9 |
Features&Benefits
Packing Details
If you need detailed information about our packaging specifications and requirements, please feel free to contact us directly. We will be happy to provide you with the details.
Frequently Asked Questions (FAQ)
Q: What is the pitch of this 12 pin FPC connector?
A: The connector has a 0.50 mm pitch and 12 pins, according to the product drawing.
Q: Is this connector suitable for compact FPC connection applications?
A: Yes. Its 2.1 mm height and fine 0.50 mm pitch make it suitable for compact electronic assemblies.
Q: What does the ZIF structure provide in an FPC connector?
A: The ZIF structure is designed to reduce insertion force when connecting the flexible printed circuit.
