High Current USB Type-C Connector 16Pin UC22-1E1H1A103-0HR-02(Cross out MOLEX 2169900002)

High Current USB Type-C Connector 16Pin UC22-1E1H1A103-0HR-02(Cross out MOLEX 2169900002)

This high-performance USB Type-C Connector is engineered for high-speed data transfer and efficient power delivery in modern, compact electronic devices.

  • Part Number :

    UC22-1E1H1A103-0HR-02

  • Product Category :

    USB Type-C Connector
Inquire Now
PDF Download

Product Overview

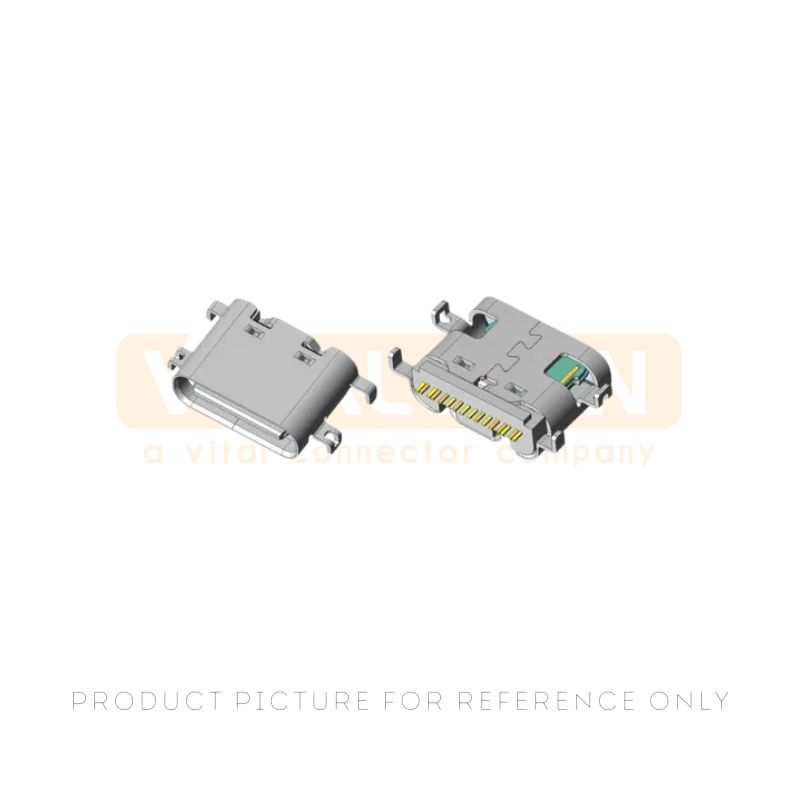

The 16 Pin USB Type-C Connector (model UC22-1E1H1A103-0HR-02) features a mid-mount 0.8mm design with a compact 6.5mm length. It is constructed using high-temperature resistant plastic (LCP or PA9T) and a stainless steel shell to ensure structural integrity and stable electrical performance during high-temperature reflow soldering.



Product Specifications / Attributes

  • Voltage Rating: 5V DC/AC (RMS max).
  • Current Rating: 5 Amps for total VBUS/GND pins; 1.25 Amps for CC pin.
  • Durability: This Mid Mount USB Type-C Connector is rated for 10,000 mating cycles.
  • Materials: Copper alloy (C1815) terminals with gold plating options (3u", 15u", or 30u") and a SUS304 stainless steel front shell.
  • Environmental: Operating temperature range from -25°C to +85°C.



Features&Benefits

  • Space-Saving Design: This SMT USB Type-C Connector utilizes a mid-mount configuration to minimize the vertical profile on the PCB.
  • High Power Delivery: Optimized to support up to 5A for fast-charging applications.
  • Robust Shielding: Equipped with a stainless steel mid-plate and front shell for enhanced mechanical strength and EMI protection.



Packing Details

If you need detailed information about our packaging specifications and requirements, please feel free to contact us directly. We will be happy to provide you with the details.



Applications

This connector is ideal for slim portable electronics, including smartphones, tablets, high-speed charging modules, and IoT devices that require a durable and high-current power interface.



Frequently Asked Questions (FAQ)

  • Q: What is the maximum current capacity for this USB Type-C Connector?
  • A: It supports a high current rating of 5 Amps for the VBUS and GND pins, making it suitable for fast-charging solutions.
  • Q: What is the durability rating for the mating cycles?
  • A: The connector is designed for high-frequency use, with a tested durability of 10,000 cycles.
  • Q: Is the housing material compatible with lead-free reflow soldering?
  • A: Yes, the housing is made of high-temperature resistant plastic (UL94 V-0) capable of withstanding peak temperatures of 260°C during IR reflow.
