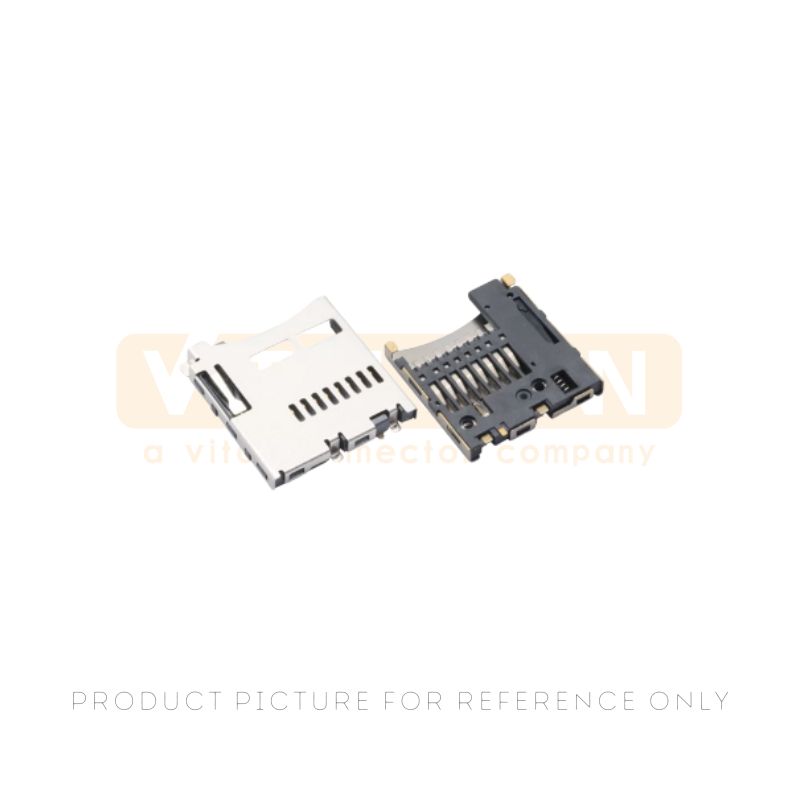

1.85H Push Push TF Micro SD SMT card sockets connectors VTC102014462(Cross out WÜRTH 693071010811)

1.85H Push Push TF Micro SD SMT card sockets connectors VTC102014462(Cross out WÜRTH 693071010811)

This professional-grade Micro SD memory interface is a robust solution within our card sockets connectors series, specifically engineered with a 1.85mm profile and a reliable push-push mechanism for secure storage in mobile electronics.

  • Part Number :

    VTC102014462

  • Product Category :

    card sockets connectors
Inquire Now
PDF Download

Product Overview

The VTC102014462 is a high-precision Push Push Micro SD card sockets connectors model designed for high-density hardware environments. It features an integrated normally closed (NC) detection switch to monitor card presence in real-time, ensuring optimal functionality for compact handheld devices.



Product Specifications / Attributes

  • Card Type: TF (Micro SD) Card.
  • Profile Height: 1.85mm.
  • Voltage/Current Rating: 30V Max / 0.5A Max.
  • Insulation Resistance: 1000 MΩ min.
  • Operating Temperature: -40°C to +85°C.
  • Durability: 5,000 Mating Cycles.
  • This 1.85H Low Profile card sockets connectors architecture is constructed using high-temperature LCP 30%GF plastic (UL94V-0) and a SUS304 stainless steel cover for superior structural strength.



Features&Benefits

  • Superior Conductivity: Utilizes Gold Flash in the contact area and Tin plating in the solder area to ensure high signal integrity and oxidation resistance for this SMT Internal Solder card sockets connectors unit.
  • Normally Closed Switch Logic: Features an integrated detection switch designed as "Normally Closed" (NC) to facilitate automated system status recognition upon card insertion.
  • Robust Shell Construction: Engineered with a 0.15mm thick stainless steel cover and 0.12mm phosphor bronze terminals to withstand rigorous operational cycles.
  • Precision Manufacturing: Adheres to strict dimensional tolerances of ±0.10mm for critical measurements to ensure a perfect fit in space-constrained enclosures.



Packing Details

If you need detailed information about our packaging specifications and requirements, please feel free to contact us directly. We will be happy to provide you with the details.



Applications

  • High-performance smartphones and cellular communication handsets.
  • Security surveillance cameras and automotive dash cams.
  • UAVs, drones, and handheld industrial data terminals.
  • Wearable smart devices and portable IoT gateways.
  • Action cameras and miniature recording equipment requiring high-durability storage.



Frequently Asked Questions (FAQ)

  • Q: What is the circuit logic of the detection switch for these card sockets connectors?
  • A: This model features a Normally Closed (NC) switch integrated into the main housing to detect card insertion status.
  • Q: What is the maximum operating temperature for the VTC102014462?
  • A: This component is rated for a wide industrial temperature range from -40°C to +85°C.
  • Q: How many mating cycles can these card sockets connectors withstand?
  • A: It is engineered for high durability, supporting up to 5,000 cycles, making it suitable for long-term professional use.

Hot Tags :

Push Push Micro SD card sockets connectors

1.85H Low Profile card sockets connectors

SMT Internal Solder card sockets connectors

leave a message
If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.
submit

Related Products

We sincerely hope that customers to visit and exchange, We will be committed to customer personalized products to help customers win the market and achieve a win-win situation.
Nano SIM card sockets connectors
Nano SIM H1.50 6 Pin SMT card sockets connectors CT113115018E7(Cross out ALPS SCGP1B0102)

This high-precision Nano SIM interface is a premium solution within our card sockets connectors lineup, specifically designed to offer reliable cellular connectivity for modern, ultra-slim electronic devices with a 1.50mm profile.

Read More

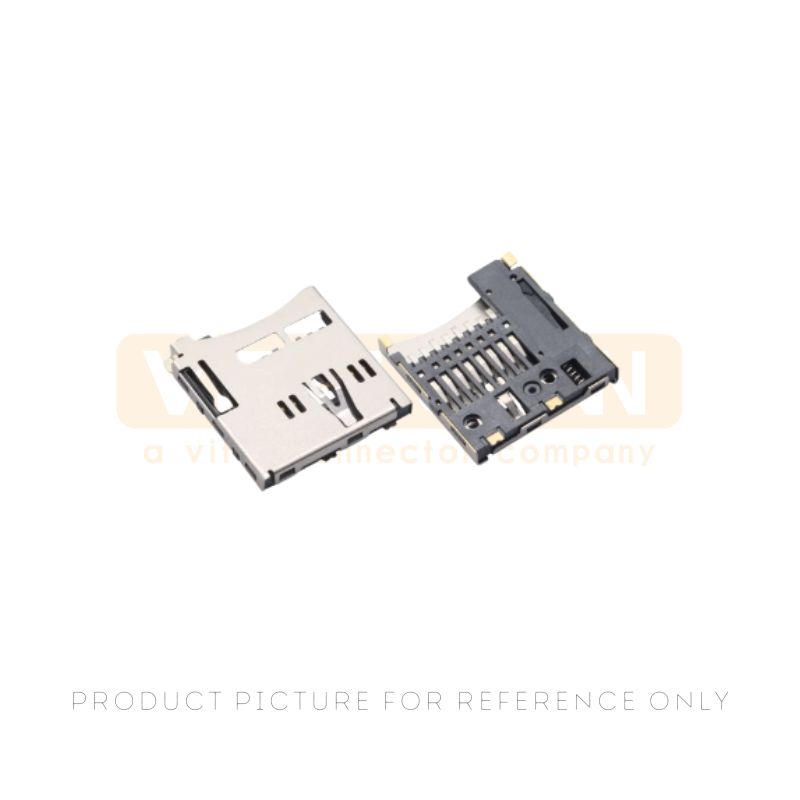

Push Push Micro SD card sockets connectors
Micro SD H1.28 8 Pin Push Push SMT card sockets connectors CT115112802E7(Cross out Molex 5033981892）

This precision-engineered Micro SD interface is a high-performance solution within our card sockets connectors series, featuring a ultra-low 1.28mm profile and a reliable push-push mechanism for secure memory card management in compact electronic devices.

Read More

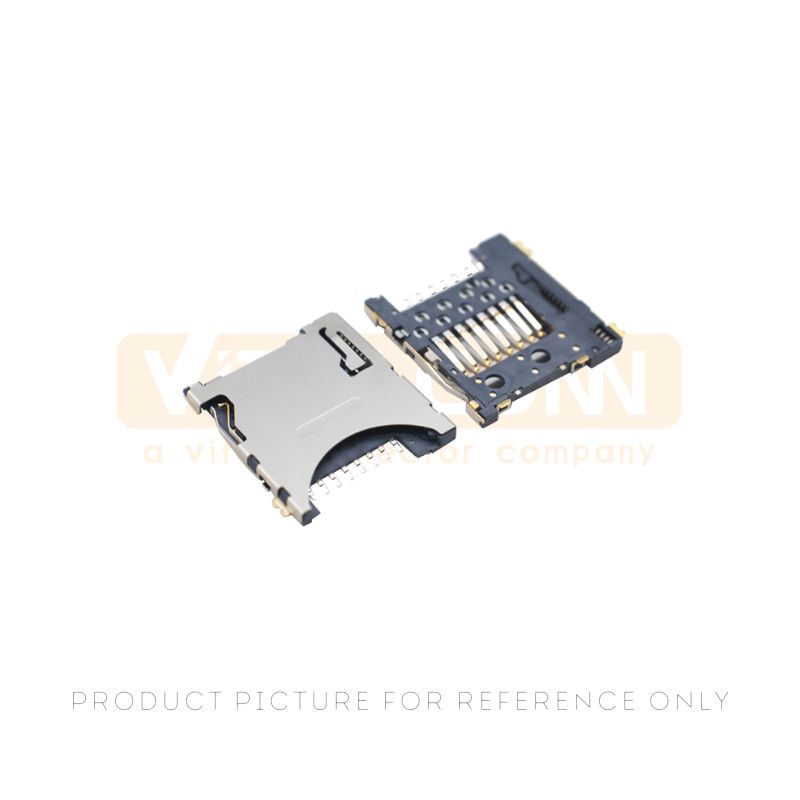

Push Push Micro SD card sockets connectors
