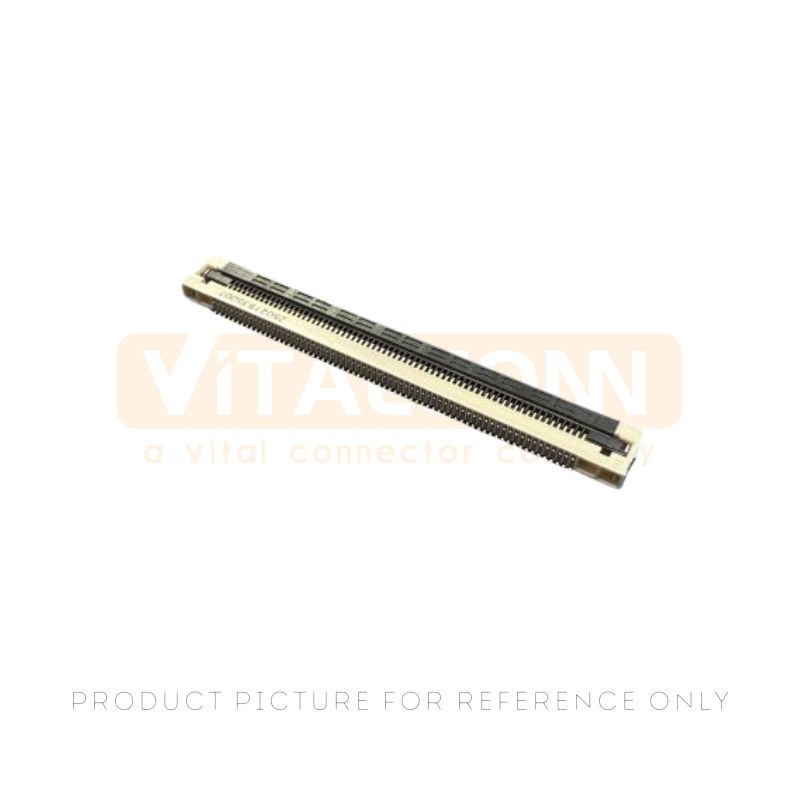

FPC Connectors 0.5mm PitchFPC connector 0.5mm Pitch 96 Pin ZIF Assembly F05055FA096M1WLJ9
High performance 96 pin FPC connector with 0.5mm pitch and 2.1mm height. Premium ZIF flexible printed circuit connector for precise electronic connections.
Part Number :
F05055FA096M1WLJ9Product Category :
FPC connector
Product Overview
FPC connector F05055FA096M1WLJ9 is a high-reliability ZIF assembly featuring a 0.5mm pitch and 96 pins. Engineered with high-temperature LCP plastic and phosphor copper contacts, it provides smooth insertion, secure latching, and outstanding electrical performance for modern compact electronic devices.
Product Specifications
| Specification | Details |
| Product Type |
ZIF FPC connector |
| Part Number |
F05055FA096M1WLJ9 |
| Pitch |
0.50 mm |
| Pin Count |
96 Pins |
| Profile Height |
2.1 mm |
| Current Rating |
0.5A AC/DC |
| Voltage Rating |
50V AC/DC |
| Contact Resistance |
30 mΩ Max |
| Insulation Resistance |
100 MΩ Min at 500V DC |
| Withstanding Voltage |
500V AC/minute |
| Operating Temperature |
-40°C to +85°C |
| Insulator Material |
LCP Plastic, UL 94V-0 |
Features&Benefits
High-Density Design: 0.5mm pitch 96-pin layout optimizes board space for compact electronics.
Low Profile Height: 2.1mm assembly height suits ultra-thin device architectures.
Flip-Lock Actuator: Thermo-plastic cover ensures secure flex cable locking and easy operation.
Robust Contacts: Phosphor copper terminals deliver superior conductivity and high reliability.
Durable Housing: UL 94V-0 rated LCP insulator withstands high operating temperatures.
Packing Details
Packaging Method: Tape & Reel in sealed vacuum bag with desiccant
Reel Quantity: 2,000 PCS per reel
Box Quantity: 8,000 PCS per outer carton
Carton Dimensions: 340 mm x 340 mm x 310 mm
Compliance: Standard EIA-481-C tape packaging
Applications
Display Modules: High-resolution LCD and OLED panel interconnections.
Consumer Electronics: Tablets, laptops, and smart wearable hardware.
Medical Devices: Compact diagnostic and portable monitoring equipment.
Automotive Systems: In-vehicle infotainment and digital dashboard units.
Industrial Controls: High-density control boards and handheld terminals.
Frequently Asked Questions (FAQ)
Q: What are the main electrical specifications of this 96 Pin FPC connector?
A: It supports a current rating of 0.5A AC/DC, voltage rating of 50V AC/DC, max contact resistance of 30mΩ, and insulation resistance of 100MΩ Min at 500V DC.
Q: What temperature range can this ZIF FPC connector endure?
A: The connector operates reliably across a temperature range from -40°C to +85°C, making it suitable for industrial and consumer electronic applications.
Q: How is the product packaged for automated SMT assembly?
A: It comes packaged in Tape & Reel format per EIA-481-C standards, containing 2,000 pieces per reel and 8,000 pieces per master carton.
