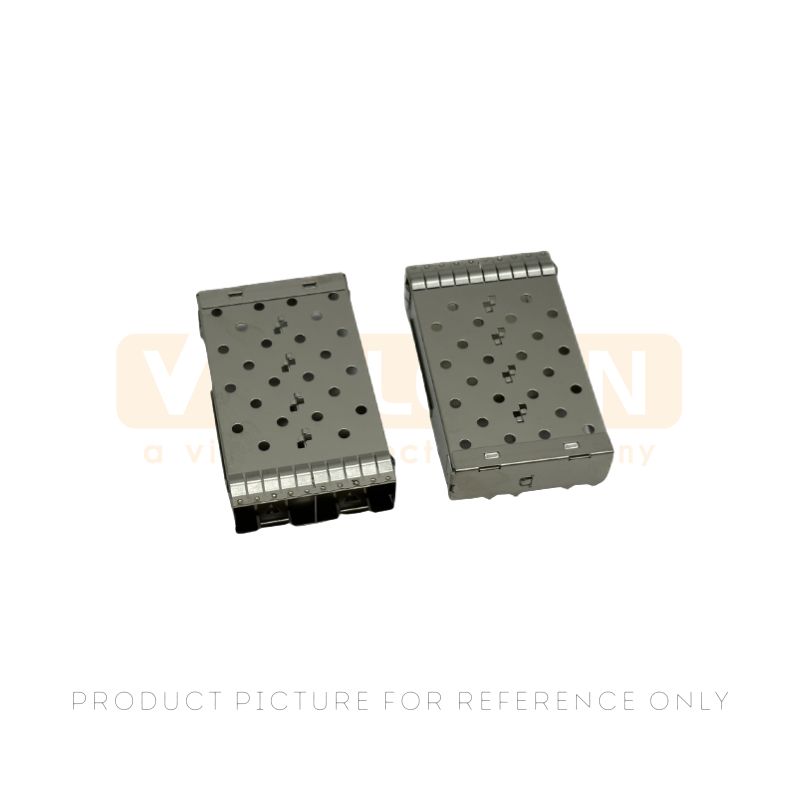

SFP+ 1x2 Cage Copper Alloy 0.25mm SFP Cage Connector VTC-2N32H01-00N（Cross out Molex 747548220）

Product Overview

SFP+ 1x2 Cage Copper Alloy 0.25mm VTC-2N32H01-00N is engineered for high-density networking applications. Featuring durable nickel-plated copper alloy construction, this 2-port cage connector ensures excellent signal integrity, low insertion loss, and dependable mechanical mounting across both single-sided and belly-to-belly PCB configurations.

Product Specifications

Product Features

• Dual-Port Layout: Provides a 1x2 gang configuration to maximize front-panel port density.
• Durable Construction: Made from 0.25mm copper alloy with nickel plating for long-term reliability.
• Wide Thermal Range: Functions smoothly in operating temperatures from -40°C to +85°C.
• Flexible PCB Mounting: Supports both single-sided and belly-to-belly PCB layout applications.
• RoHS Compliant: Built to meet global environmental compliance standards.

Packing Details

If you need detailed information about our packaging specifications and requirements, please feel free to contact us directly. We will be happy to provide you with the details.

Applications

• High-Speed Ethernet Switches
• Data Center Storage Systems
• Telecommunication Equipment
• Enterprise Edge Routers
• Optical Transceiver Interfaces

Frequently Asked Questions (FAQ)

Q: How to install dual port SFP+ cage on belly to belly PCB design?
A: Align the mounting pins of the VTC-2N32H01-00N with the designated PCB layout holes on both top and bottom sides, adhering to the recommended bezel dimensions (29.70mm x 10.40mm) and keep-out areas specified in the technical drawing.

Q: What is the operating temperature range for VTC-2N32H01-00N SFP+ cage?
A: The VTC-2N32H01-00N SFP+ cage supports an operating temperature range of -40°C to +85°C and a non-operating storage temperature range of -55°C to +105°C, ensuring reliable performance in harsh telecom environments.

Q: Is the VTC-2N32H01-00N cage RoHS compliant?
A: Yes, the VTC-2N32H01-00N is fully RoHS compliant, constructed with 0.25mm nickel-plated copper alloy material to meet global environmental and safety standards for electronic equipment.
