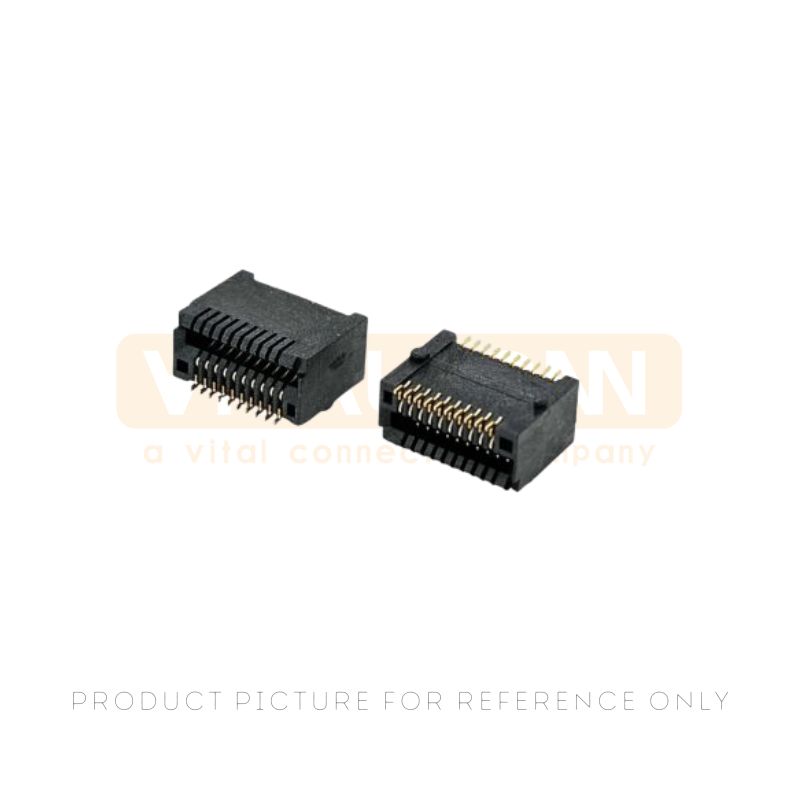

1x1 SFP28 Connector for High Speed SFP Cage Connector Applications S7C2100D00CA4（Cross out MOLEX 170382-0002）

Product Overview

1x1 SFP28 Connector designed for SFP28 transceiver applications, featuring a compact 20-contact configuration, high temperature LCP housing and phosphor bronze contacts. The connector provides 20 mOhm maximum initial contact resistance, 0.5 A current rating and reliable operation from -40 to +95 C.

Product Specifications

Product Features

• 1x1 SFP28 Configuration
  Supports a compact single-port SFP28 interface for high density transceiver designs.
• 20 Contact Positions
  Provides 20 contacts arranged for reliable electrical connection with compatible SFP28 modules.
• 20 mOhm Low Contact Resistance
  Delivers low initial contact resistance for stable electrical performance.
• High Temperature Housing
  Uses black high temperature LCP with UL94 V-0 flame-retardant performance.
• Durable Contact Design
  Phosphor bronze contacts with gold plating support reliable mating performance and up to 100 cycles.



Packing Details

If you need detailed information about our packaging specifications and requirements, please feel free to contact us directly. We will be happy to provide you with the details.

Applications

Optical Transceivers：For SFP28 optical transceiver interfaces.
Network Switches：Supports compact high speed network switch designs.
Data Center Equipment：Suitable for high density data communication hardware.
Fiber Networking：Used in fiber optic communication equipment.
Communication Systems：Designed for board level transceiver interface applications.

Frequently Asked Questions (FAQ)

Q: What is a 1x1 SFP28 connector used for?
A: A 1x1 SFP28 connector provides a single-port interface for SFP28 transceiver modules in networking and data communication equipment, supporting compact board level designs.

Q: What are the benefits of a 20 contact SFP28 connector?
A: A 20 contact SFP28 connector provides the required contact positions for compatible transceiver interfaces while maintaining a compact form factor for high density equipment.

Q: How does low contact resistance improve connector performance?
A: The 20 mOhm maximum initial contact resistance helps maintain stable electrical continuity and supports reliable signal and power transmission during normal operation.
