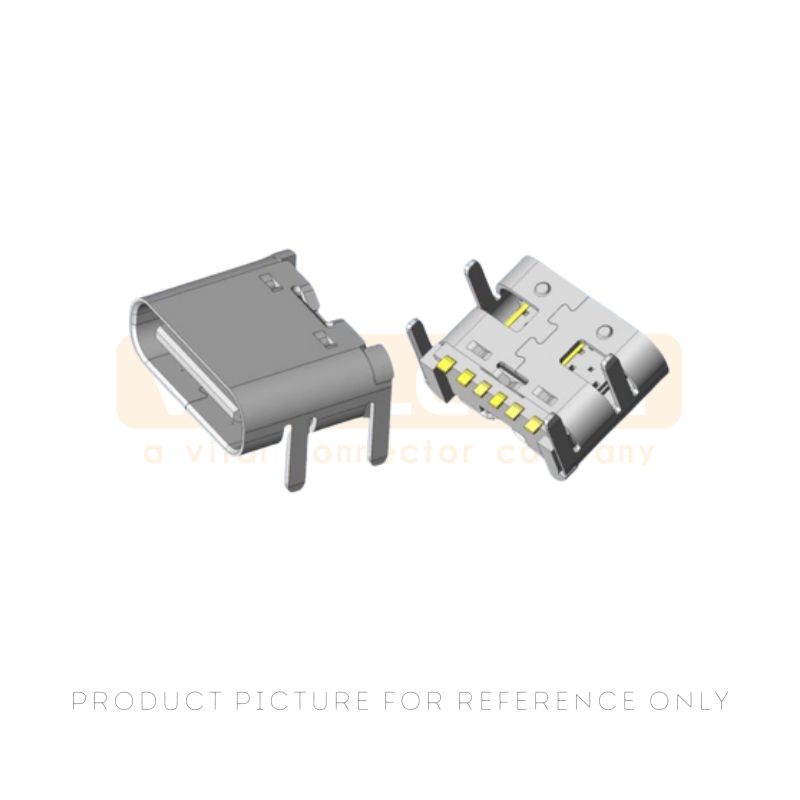

Cross-out ReferenceUSB Type-C Connector 24Pin SMT UC22-1E1H1A101-0HR-22(Cross out MOLEX 2171750001 )
The UC22-1E1H1A101-0HR-22 is a compact surface-mount USB Type-C Connector designed for space-constrained PCB layouts without compromising performance. This 24-pin horizontal receptacle supports USB 3.2 Gen2 data rates up to 10Gbps and USB Power Delivery up to 100W.
Its low-profile SMT design makes it an excellent USB Type-C Connector for ultra-thin notebooks, tablets, and portable devices where board real estate is at a premium.
Part Number :
UC22-1E1H1A101-0HR-22Product Category :
USB Type-C Connector
Product Overview
VITALCONN introduces the UC22-1E1H1A101-0HR-22, a USB Type-C SMT horizontal USB Type-C Connector optimized for modern slim-form-factor electronics. Featuring a pure SMT horizontal mounting design, this connector minimizes PCB footprint while delivering full USB 3.2 Gen2 functionality including 10Gbps data transfer, DisplayPort Alt Mode video output, and 100W USB Power Delivery.
The precision-engineered contact design ensures consistent electrical performance across the full operating temperature range of -40C to +85C.
Product Specifications / Attributes
|
Connector Type |
USB Type-C Receptacle (Female) |
|
Mounting Style |
SMT Horizontal |
|
Number of Positions |
24 Pin |
|
USB Standard |
USB 3.2 Gen2 (10Gbps) |
|
Power Delivery |
Up to 100W (20V/5A) |
|
Orientation |
Horizontal / Right Angle |
|
Contact Material |
Copper Alloy, Gold Plated |
|
Housing Material |
LCP, UL94-V0 |
|
Operating Temperature |
-40C to +85C |
|
Mating Cycles |
10,000 Cycles Minimum |
|
Part Number |
UC22-1E1H1A101-0HR-22 |
