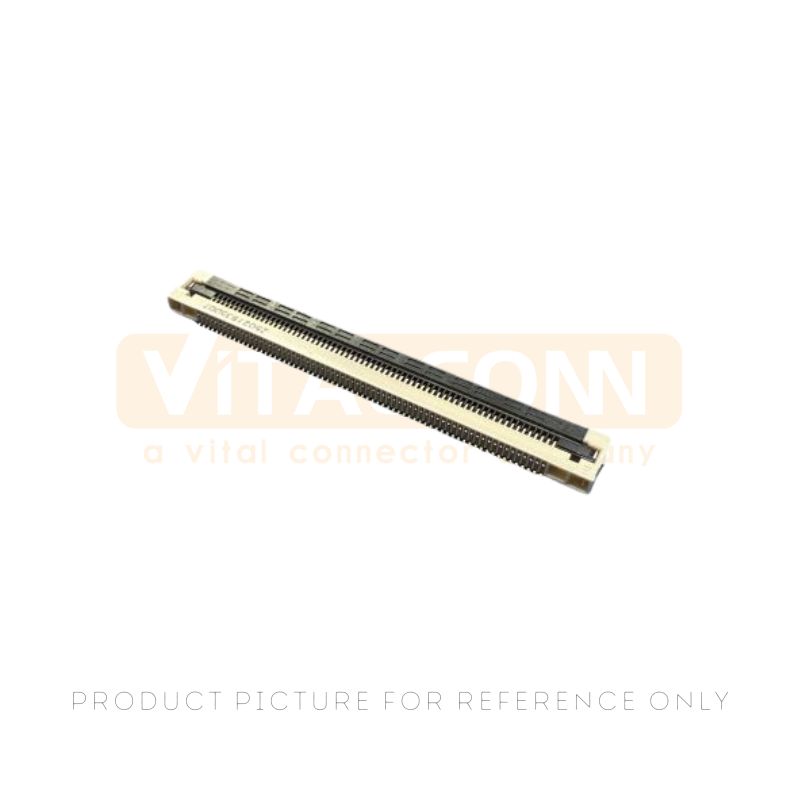

0.5mm Pitch 80 Pin FPC Connector 2.1mm Height ZIF FFC FPC Board Connector F05054FA080M1WLJ9

Product Overview

0.5mm Pitch 80 Pin FPC Connector 2.1mm Height F05054FA080M1WLJ9 provides high-density interconnection for flexible printed circuits and flat flexible cables. Featuring a low-profile 2.1mm height, zero insertion force mechanism, and SMT layout, this ZIF FFC FPC board connector ensures superior electrical performance and robust PCB retention across demanding compact electronic applications.

Product Specifications

Product Features

• • Zero Insertion Force Actuation: Effortless cable insertion with flip-lock latch mechanism preventing contact damage.
  • Low-Profile 2.1mm Height: Engineered for space-constrained electronics requiring high-density pin counts.
  • Enhanced Grounding Tabs: Dual copper alloy side tabs deliver excellent PCB retention and EMI shielding.
  • High-Temperature LCP Housing: UL 94V-0 rated plastic withstands rigorous SMT reflow soldering processes.
  • Reliable Phosphor Bronze Contacts: Gold-over-nickel plating ensures stable conductivity and wear resistance.

Packing Details

If you need detailed information about our packaging specifications and requirements, please feel free to contact us directly. We will be happy to provide you with the details.

Applications

• Display & Touch Panels: High-resolution LCD, OLED, and touch screen module connections.
• Medical & Industrial Devices: Compact diagnostic equipment and portable handheld terminal interfaces.
• Consumer Electronics: Laptops, tablets, digital cameras, and wearable devices.
• Automotive Electronics: Infotainment displays and dashboard control modules.

Frequently Asked Questions (FAQ)

Q: What is the mating orientation and actuator type for this 80 pin ZIF connector?

A: This connector features a right-angle surface-mount configuration with a flip-lock (hinged cover) actuator mechanism that allows zero insertion force cable insertion and secure locking.

Q: Is this 0.5mm pitch flex cable connector suitable for high-density automotive applications?

A: Yes, with an operating temperature range of -40°C to +85°C, high-temperature LCP housing, and dual grounding tabs for vibration resistance, it operates reliably in automotive and industrial environments.

Q: What are the recommended FPC thickness and mating requirements?

A: The connector accommodates standard 0.30mm (±0.03mm) total thickness flexible printed circuits or flat flexible cables, including contact layer plating.
