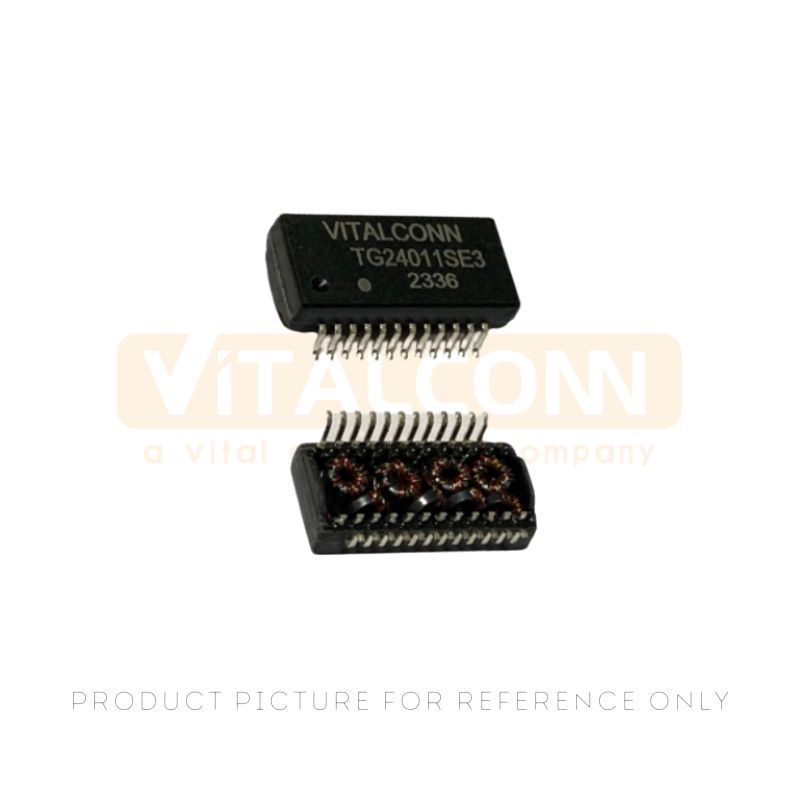

Networking Connectors LAN Transformer Modules1000 Base-T 24-Pin PCMCIA LAN Transformer Modules TG24011SE3
The TG24011SE3 is a 24-pin PCMCIA-compatible LAN Transformer Modules designed for 1000 Base-T Gigabit Ethernet applications, providing reliable signal isolation and impedance matching for high-speed networking equipment.
Part Number :
TG24011SE3Product Category :
LAN Magnetics
Product Overview
This TG24011SE3 PCMCIA LAN Transformer Modules features a compact PCMCIA-compatible package for portable networking applications, supporting IEEE 802.3ab 1000 Base-T with a wide operating temperature range.
Product Specifications / Attributes
● OCL: 350 uH Min @100kHz, 100mV with 8mA DC Bias
● Turns Ratio: 1CT:1CT (TX and RX)
● Insertion Loss: -1.0 dB Max (1~100 MHz)
● Return Loss: -18 dB Min (1~30 MHz), -14.4 dB Min (40 MHz), -13.1 dB Min (50 MHz), -12 dB Min (60~80 MHz), -10 dB Min (100 MHz)
● Differential to Common Mode Rejection: -40 dB Min (30 MHz), -35 dB Min (60 MHz), -30 dB Min (100 MHz)
● Cross Talk: -45 dB Min (30 MHz), -40 dB Min (60 MHz), -35 dB Min (100 MHz)
● HIPOT: 1500 VAC
● Operating Temperature: 0°C to +70°C
Features&Benefits
● RoHS Compliant design for environmental compliance
● PCMCIA-compatible 24-pin package for easy integration
● Compliant with IEEE 802.3ab standard for 1000 Base-T
● Suitable for portable and embedded networking applications
Packing Details
If you need detailed information about our packaging specifications and requirements, please feel free to contact us directly. We will be happy to provide you with the details.
Applications
● 1000 Base-T Gigabit Ethernet PCMCIA cards and adapters
● Portable networking equipment
● Embedded systems requiring compact package
● Industrial Ethernet modules
