SMA Female to ePSMP Female Precision Test RF Adapter SMA(F)-ePSMP(F)

SMA Female to ePSMP Female Precision Test RF Adapter SMA(F)-ePSMP(F)

This high-performance SMA Female to ePSMP Female Test RF Adapter is meticulously engineered to provide a seamless and reliable interface between different connector standards, ensuring superior signal integrity for high-frequency measurement applications.

  • Part Number :

    SMA(F)-ePSMP(F)

  • Product Category :

    Test RF Adapter
Inquire Now

Product Overview

The SMA(F)-ePSMP(F) is a professional-grade 50 Ohm Precision Test RF Adapter designed for rigorous laboratory and production line testing. Featuring a total body length of 22.3mm and high-precision machining, it offers a stable interface for high-density hardware configurations where performance and space are critical factors.



Product Specifications / Attributes

  • Characteristic Impedance: 50Ω.
  • Frequency Range: DC to 6GHz.
  • VSWR (Voltage Standing Wave Ratio): ≤1.15.
  • Dielectric Withstanding Voltage: 500V.
  • Insulation Resistance: 1000MΩ.

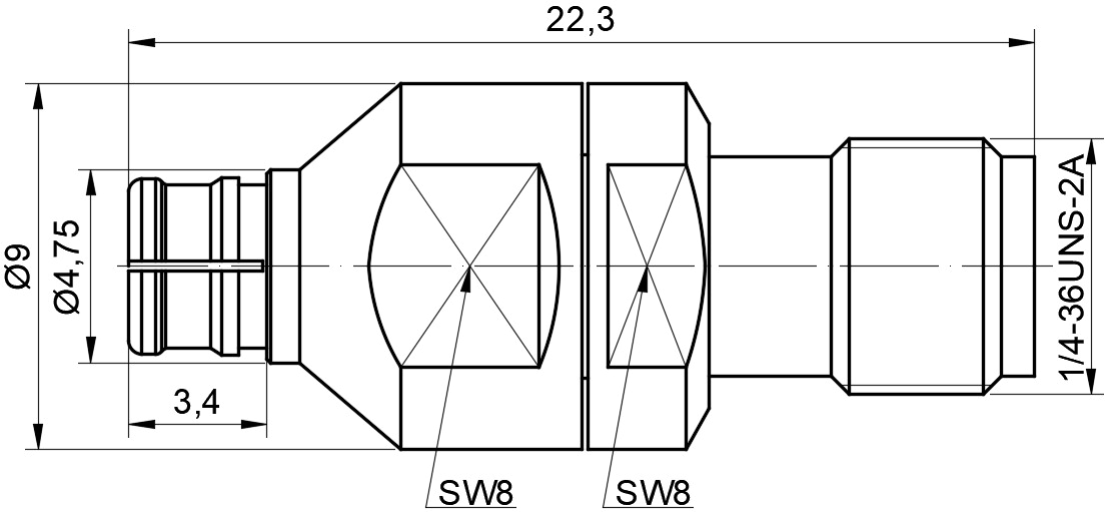

  • This DC to 6GHz Test RF Adapter is manufactured with precision 1/4-36UNS-2A threads on the SMA interface and includes dual SW8 wrench flats for secure installation.



Features&Benefits

  • Superior Signal Integrity: Optimized for a low VSWR of 1.15 or less to minimize signal reflection and loss in sensitive circuits.
  • Robust Construction: Manufactured as a high-quality Brass Beryllium Copper Test RF Adapter, ensuring excellent electrical conductivity and mechanical durability for repeated mating cycles.
  • Precision Machining: Built with a specialized ePSMP female interface (Ø4.75) to guarantee consistent performance across its entire operational bandwidth.



Packing Details

If you need detailed information about our packaging specifications and requirements, please feel free to contact us directly. We will be happy to provide you with the details.



Applications

  • RF and microwave laboratory testing and calibration.
  • Wireless communication module verification (5G, IoT).
  • Automated Test Equipment (ATE) system integration.
  • Telecommunications infrastructure signal routing.
  • High-speed data transmission hardware development.



Frequently Asked Questions (FAQ)

  • Q: What is the operational frequency range for this Test RF Adapter?
  • A: This specific model is designed for high-performance signal transmission across a frequency range of DC up to 6GHz.
  • Q: What materials are utilized to ensure the reliability of the SMA(F)-ePSMP(F)?
  • A: It is constructed using high-quality Brass and Beryllium Copper for the metallic components and PTFE for the internal insulation to ensure superior electrical performance.
  • Q: Does this adapter support secure manual tightening?
  • A: Yes, it features integrated dual SW8 wrench flats that allow for precise and secure torque application during mounting onto test equipment.
