SMA Female to eMFBX Male Precision Test RF Adapter SMA(F)-eMFBX(M)

SMA Female to eMFBX Male Precision Test RF Adapter SMA(F)-eMFBX(M)

This high-performance SMA Female to eMFBX Male Test RF Adapter is engineered to provide a seamless and reliable interface for precision high-frequency measurement applications, ensuring superior signal integrity between different connector standards.

  • Part Number :

    SMA(F)-eMFBX(M)

  • Product Category :

    Test RF Adapter
Inquire Now

Product Overview

The SMA(F)-eMFBX(M) is a professional-grade 50 Ohm Precision Test RF Adapter designed for rigorous laboratory and field testing. Featuring a compact 16mm total length, it allows for high-density configurations in automated test environments while maintaining a stable characteristic impedance.



Product Specifications / Attributes

  • Impedance: 50Ω.
  • Frequency Range: DC ~ 6GHz.
  • VSWR: ≤1.15.
  • Dielectric Withstanding Voltage: 500V.
  • Insulation Resistance: 1000MΩ.
  • Materials: Brass and Beryllium Copper with PTFE insulation.

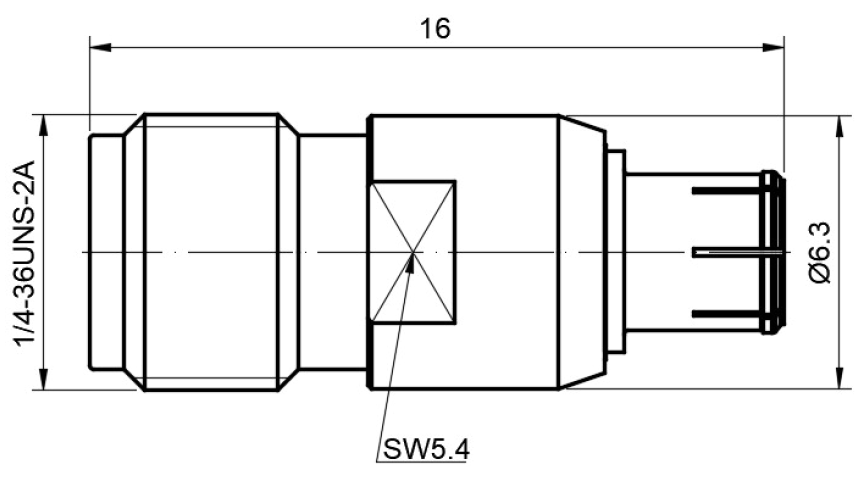

  • This DC to 6GHz Test RF Adapter is manufactured with precision threads (1/4-36UNS-2A) and a standard SW5.4 wrench flat for secure installation.



Features&Benefits

  • Low Signal Loss: Optimized for a low Voltage Standing Wave Ratio (VSWR) of 1.15 or less to minimize signal reflection in sensitive circuits.
  • Robust Construction: Built using high-quality metallic components to ensure long-term durability and repeatable mating cycles for this SMA Female to eMFBX Male Test RF Adapter.
  • Space-Efficient Profile: The ultra-short 16mm body length makes it ideal for use in compact test fixtures and handheld instruments.



Packing Details

If you need detailed information about our packaging specifications and requirements, please feel free to contact us directly. We will be happy to provide you with the details.



Applications

  • RF laboratory testing and instrument calibration.
  • Telecommunications infrastructure signal routing.
  • Wireless module testing and hardware debugging.
  • Automated Test Equipment (ATE) system integration.
  • R&D for high-frequency IoT and 5G communication devices.



Frequently Asked Questions (FAQ)

  • Q: What is the operational frequency range for this Test RF Adapter?
  • A: This specific model is designed for high-performance signal transmission from DC up to 6GHz.
  • Q: What are the primary metallic materials used in the construction of the SMA(F)-eMFBX(M)?
  • A: It is constructed using high-quality Brass and Beryllium Copper to ensure a stable electrical connection for this Test RF Adapter.
  • Q: Is this adapter suitable for precision measurement systems?
  • A: Yes, with a low VSWR of ≤1.15, it is specifically engineered for precision testing where signal accuracy is critical.
