SMA Female to eMBX Male Precision Test RF Adapter SMA(F)-eMBX(M)

SMA Female to eMBX Male Precision Test RF Adapter SMA(F)-eMBX(M)

This high-performance SMA Female to eMBX Male Test RF Adapter is engineered to provide a seamless and reliable interface between different connector standards, ensuring superior signal integrity for precision high-frequency measurement applications.

  • Part Number :

    SMA(F)-eMBX(M)

  • Product Category :

    Test RF Adapter
Inquire Now

Product Overview

The SMA(F)-eMBX(M) is a professional-grade 50 Ohm Precision Test RF Adapter designed for rigorous laboratory and field testing. Featuring a total body length of 16.8mm, it allows for high-density configurations in automated test environments while maintaining a stable 50Ω characteristic impedance.



Product Specifications / Attributes

  • Characteristic Impedance: 50Ω.
  • Frequency Range: DC to 6GHz.
  • VSWR: ≤1.15.
  • Dielectric Withstanding Voltage: 500V.
  • Insulation Resistance: 1000MΩ.
  • Materials: Brass & Beryllium Copper with PTFE insulation.

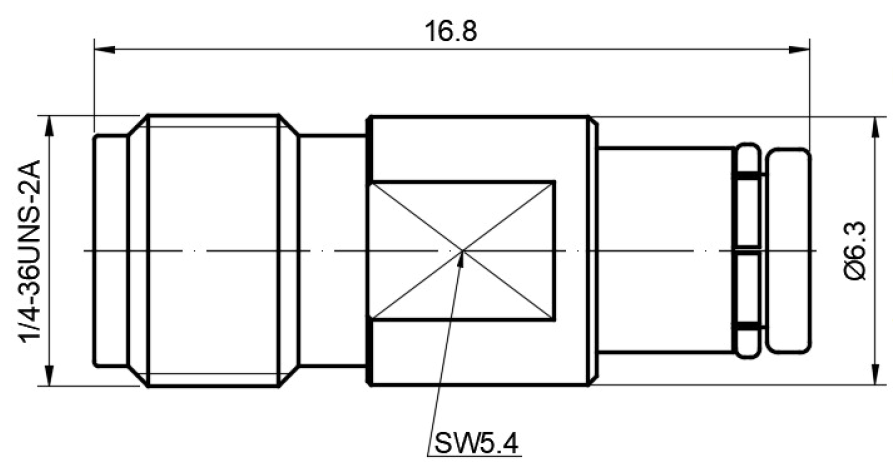

  • This DC to 6GHz Test RF Adapter is manufactured with precision 1/4-36UNS-2A threads and an integrated SW5.4 wrench flat for secure and accurate installation.



Features&Benefits

  • Robust Construction: Manufactured as a high-quality Brass Beryllium Copper Test RF Adapter, ensuring long-term durability and repeatable mating cycles in professional environments.
  • Low Signal Loss: Optimized for a low Voltage Standing Wave Ratio (VSWR) of 1.15 or less to minimize signal reflection in sensitive RF circuits.
  • Space-Efficient Profile: The compact 16.8mm length makes it ideal for use in compact test fixtures and hardware debugging setups.



Packing Details

If you need detailed information about our packaging specifications and requirements, please feel free to contact us directly. We will be happy to provide you with the details.



Applications

  • RF laboratory testing and instrument calibration.
  • Telecommunications infrastructure signal routing.
  • Wireless module testing and hardware debugging.
  • Automated Test Equipment (ATE) system integration.
  • Research and development for high-frequency IoT and 5G communication devices.



Frequently Asked Questions (FAQ)

  • Q: What is the operational frequency range for this Test RF Adapter?
  • A: This specific model is designed for high-performance signal transmission from DC up to 6GHz.
  • Q: What are the primary metallic materials used in the construction of the SMA(F)-eMBX(M)?
  • A: It is constructed using high-quality Brass and Beryllium Copper to ensure a stable electrical connection for this Test RF Adapter.
  • Q: Is this adapter suitable for precision measurement systems?
  • A: Yes, with a low VSWR of ≤1.15, it is specifically engineered for precision testing where signal accuracy and low reflection are critical.
