SMA Female to eZSMP Female Precision Test RF Adapter SMA(F)-eZSMP(F)

SMA Female to eZSMP Female Precision Test RF Adapter SMA(F)-eZSMP(F)

This high-performance SMA Female to eZSMP Female Test RF Adapter is meticulously engineered to provide a seamless and reliable interface between connector standards, ensuring superior signal integrity for high-frequency measurement and communication systems.

  • Part Number :

    SMA(F)-eZSMP(F)

  • Product Category :

    Test RF Adapter
Inquire Now

Product Overview

The SMA(F)-eZSMP(F) is a professional-grade 50 Ohm Precision Test RF Adapter designed for laboratory testing and field verification. With a compact total body length of 19mm and high-precision machining, it offers a stable interface for high-density hardware configurations where space and performance are critical.



Product Specifications / Attributes

  • Characteristic Impedance: 50Ω.
  • Frequency Range: DC to 6GHz.
  • VSWR: ≤1.15.
  • Dielectric Withstanding Voltage: 500V.
  • Insulation Resistance: 1000MΩ.
  • Materials: Brass & Beryllium Copper with PTFE insulation.

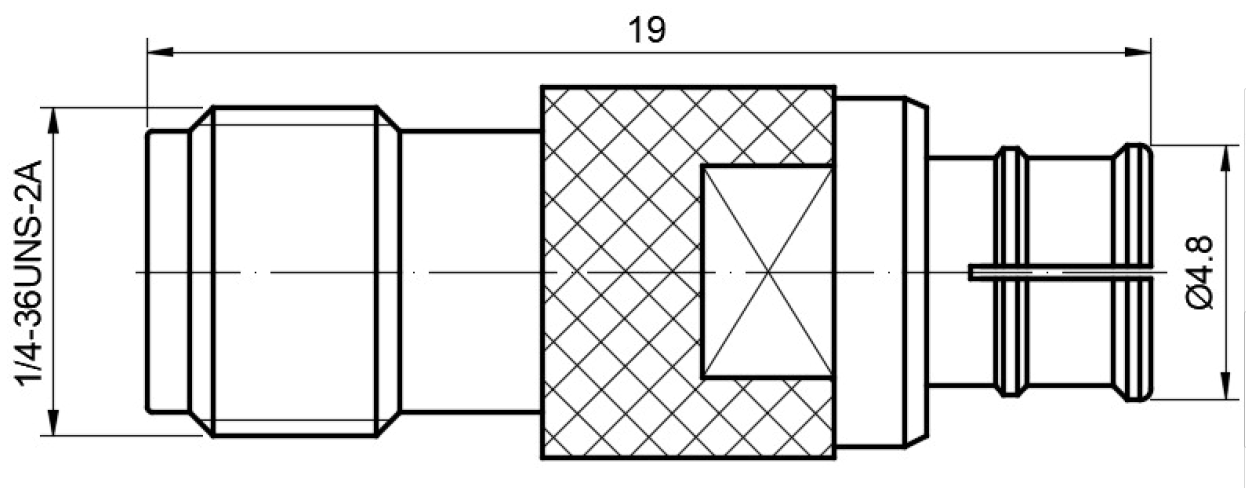

  • This DC to 6GHz Test RF Adapter features standard 1/4-36UNS-2A threads on the SMA interface and a specialized eZSMP female interface with a Ø4.8 diameter.



Features&Benefits

  • Superior Signal Integrity: Optimized for a low Voltage Standing Wave Ratio (VSWR) of 1.15 or less to minimize signal reflection in sensitive circuits.
  • Durable Build: Constructed as a high-quality Brass Beryllium Copper Test RF Adapter, providing excellent electrical conductivity and mechanical robustness for repeatable mating cycles.
  • Compact Architecture: The 19mm body profile makes it ideal for use in compact test fixtures and handheld instruments.
  • Precision Machining: Manufactured to strict industrial tolerances to guarantee consistent performance across its entire operational bandwidth.



Packing Details

If you need detailed information about our packaging specifications and requirements, please feel free to contact us directly. We will be happy to provide you with the details.



Applications

  • RF and microwave laboratory testing.
  • Wireless communication module verification.
  • Automated Test Equipment (ATE) system integration.
  • Telecommunications infrastructure signal routing.
  • Research and development for 5G, IoT, and high-speed data transmission hardware.



Frequently Asked Questions (FAQ)

  • Q: What is the maximum operational frequency for this Test RF Adapter?
  • A: This specific model is designed for high-performance signal transmission across a frequency range of DC up to 6GHz.
  • Q: What materials are utilized to ensure the reliability of the SMA(F)-eZSMP(F)?
  • A: It is built using Brass and Beryllium Copper for the metallic components and PTFE for the internal insulation to ensure superior electrical performance.
  • Q: Is this adapter suitable for precision measurement environments?
  • A: Yes, as a dedicated Test RF Adapter with a very low VSWR of ≤1.15, it is specifically engineered for precision testing where signal accuracy is critical.
