4.3 10 Male to SMA Female Precision High Performance Test RF Adapter 4.3/10(M)-SMA(F)

4.3 10 Male to SMA Female Precision High Performance Test RF Adapter 4.3/10(M)-SMA(F)

This professional-grade 4.3/10 Male to SMA Female Test RF Adapter is meticulously engineered to provide a seamless and reliable interface between different connector standards, ensuring superior signal integrity for precision high-frequency measurement applications.

  • Part Number :

    4.3/10(M)-SMA(F)

  • Product Category :

    Test RF Adapter
Inquire Now

Product Overview

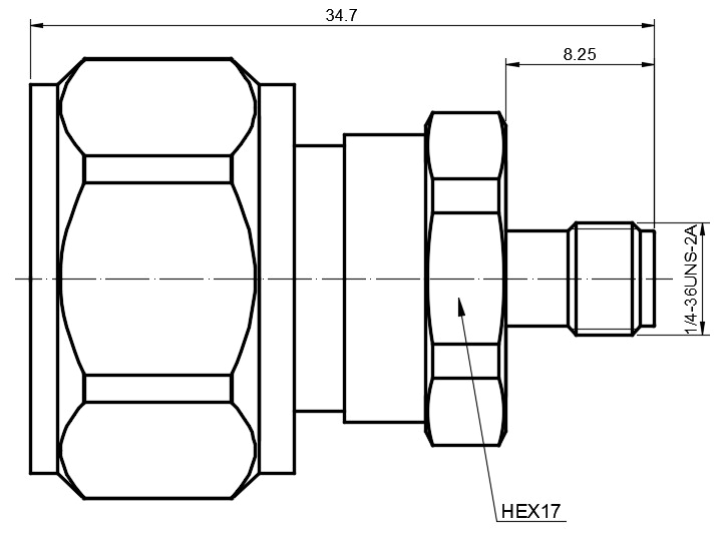

The 4.3/10(M)-SMA(F) is a premium 50 Ohm Precision Test RF Adapter designed for rigorous laboratory and infrastructure verification. With a total body length of 34.7mm and high-precision machining, it offers a stable and low-loss interface for high-density hardware configurations where space and electrical performance are critical factors.



Product Specifications / Attributes

  • Characteristic Impedance: 50Ω.
  • Frequency Range: DC to 6GHz.
  • VSWR (Voltage Standing Wave Ratio): ≤1.15.
  • Dielectric Withstanding Voltage: 500V.
  • Insulation Resistance: 1000MΩ.
  • This DC to 6GHz Test RF Adapter features a specialized coupling nut on the 4.3/10 male interface and an integrated SW17 (HEX17) wrench flat to ensure secure and accurate installation.



Features&Benefits

  • Superior Signal Performance: Optimized for a low VSWR of 1.15 or less to minimize signal reflection and transmission loss in sensitive RF circuits.
  • Robust Construction: Manufactured as a high-quality Brass Beryllium Copper Test RF Adapter, ensuring excellent electrical conductivity and mechanical durability for repeated mating cycles in professional environments.
  • Precision Engineering: Built with a combination of brass and beryllium copper contacts and PTFE insulation to guarantee consistent performance across its entire operational bandwidth.



Packing Details

If you need detailed information about our packaging specifications and requirements, please feel free to contact us directly. We will be happy to provide you with the details.



Applications

  • RF and microwave laboratory testing and instrument calibration.
  • Telecommunications infrastructure (base stations) and signal routing.
  • Wireless communication module verification (5G, IoT).
  • Automated Test Equipment (ATE) system integration.
  • Research and development for high-speed data transmission hardware.



Frequently Asked Questions (FAQ)

  • Q: What is the maximum frequency supported by this Test RF Adapter?
  • A: This specific model is designed for high-performance signal transmission across a frequency range of DC up to 6GHz.
  • Q: What metallic materials are used to ensure the reliability of the 4.3/10(M)-SMA(F)?
  • A: It is constructed using high-quality Brass and Beryllium Copper for the metallic components to ensure superior electrical performance and durability.
  • Q: Does this Test RF Adapter include features for secure manual tightening?
  • A: Yes, it features an integrated SW17 (HEX17) wrench flat that allows for precise and secure torque application during mounting onto test equipment.

Hot Tags :

50 Ohm Precision Test RF Adapter

DC to 6GHz Test RF Adapter

Brass Beryllium Copper Test RF Adapter
