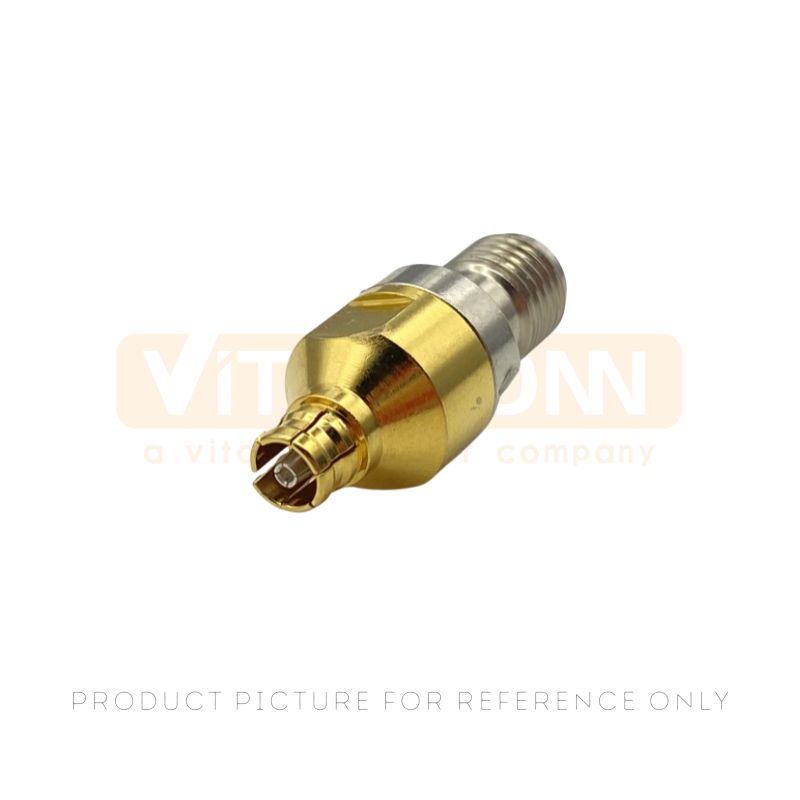

SMA Female to eSMP-MAX Female Precision Test RF Adapter SMA(F)-eSMP-MAX(F)

SMA Female to eSMP-MAX Female Precision Test RF Adapter SMA(F)-eSMP-MAX(F)

This precision-engineered SMA Female to eSMP-MAX Female Test RF Adapter is specifically designed to provide a stable and high-performance interface for high-frequency measurement systems, ensuring optimal signal integrity between different connector standards.

  • Part Number :

    SMA(F)-eSMP-MAX(F)

  • Product Category :

    Test RF Adapter
Inquire Now

Product Overview

The SMA(F)-eSMP-MAX(F) is a professional-grade 50 Ohm Precision Test RF Adapter built for rigorous laboratory and production line testing. With a compact total length of 18.8mm and an integrated SW5.4 wrench flat, it allows for secure and accurate connections in high-density tesg a consistent 50Ωt environments while maintainin characteristic impedance.



Product Specifications / Attributes

  • Characteristic Impedance: 50Ω.
  • Frequency Range: DC to 6GHz.
  • VSWR: ≤1.15.
  • Dielectric Withstanding Voltage: 500V.
  • Insulation Resistance: 1000MΩ.
  • Materials: High-grade Beryllium Copper and PTFE insulation.
  • This DC to 6GHz Test RF Adapter is manufactured with precision 1/4-36UNS-2A threads on the SMA interface to guarantee repeatable performance.




Features&Benefits

  • Low Signal Reflection: Optimized for a very low Voltage Standing Wave Ratio (VSWR) of 1.15 or less, minimizing signal loss in sensitive RF circuits.
  • Robust Construction: Manufactured as a high-quality Beryllium Copper Test RF Adapter, ensuring excellent mechanical durability and electrical conductivity for repeated mating cycles.

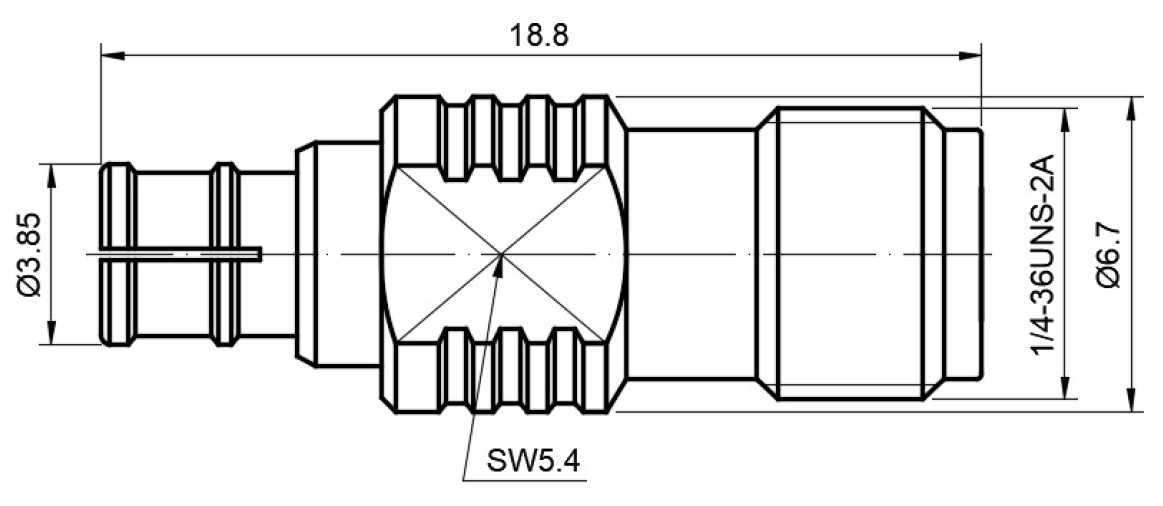

  • Space-Efficient Profile: The 18.8mm body length and specialized interface diameters (Ø6.7 and Ø3.85) make it ideal for use in compact test fixtures and handheld instruments.



Packing Details

If you need detailed information about our packaging specifications and requirements, please feel free to contact us directly. We will be happy to provide you with the details.



Applications

  • RF laboratory testing and instrument calibration.
  • Wireless module verification and hardware debugging.
  • Automated Test Equipment (ATE) system integration.
  • Telecommunications infrastructure signal routing.
  • Research and development for IoT and 5G communication hardware.



Frequently Asked Questions (FAQ)

  • Q: What is the maximum operating frequency for this adapter?
  • A: This model is designed for high-performance signal transmission across a frequency range of DC up to 6GHz.
  • Q: What materials are used to ensure the reliability of this Test RF Adapter?
  • A: It is constructed using premium Beryllium Copper for the metallic components and PTFE for the internal insulation to ensure superior electrical performance.
  • Q: Does this adapter include features for secure installation?
  • A: Yes, it features an integrated SW5.4 wrench flat that allows for precise and secure torque application during mounting onto test equipment.
