1x1 SFP Cage Connector with Grounding Pin for EMI Shielding S2N31Y0100NA4（Cross out TE 2007194-1 ）

Product Overview

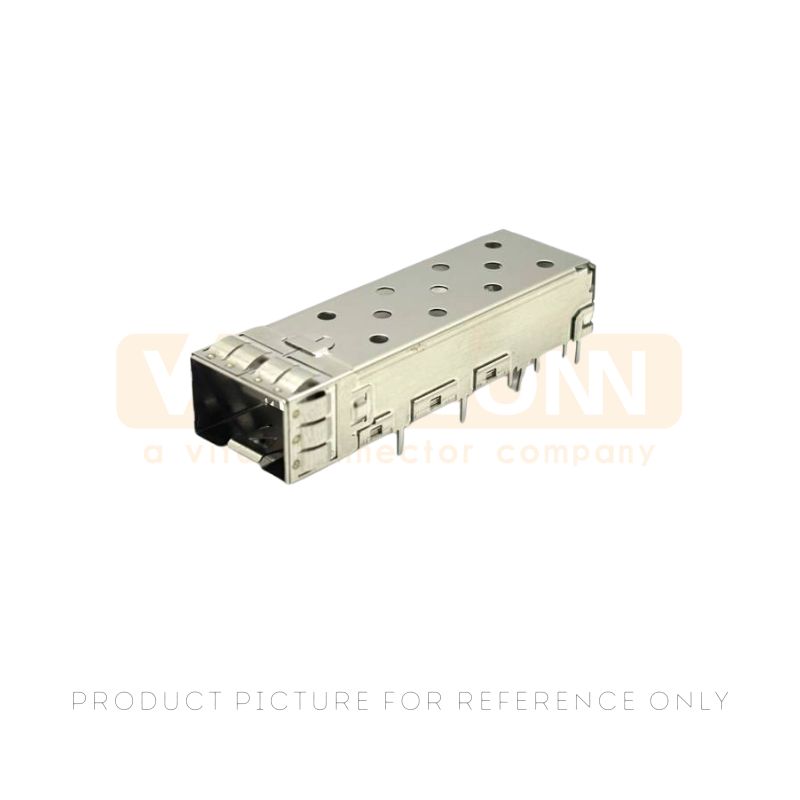

1x1 SFP Cage Connector with grounding pin designed for SFP+ pluggable I/O applications. The cage supports a single port configuration, through hole solder termination and external EMI springs. It is designed for board mounting and PCI applications, with a recommended PCB thickness of 1.5 mm and an operating temperature range of -55 to 105 C.

Product Specifications

Product Features

• 1x1 Single Port Design
  Provides a compact single-port cage configuration for SFP+ pluggable interfaces.
• Grounding and EMI Control
  External EMI springs help provide shielding and grounding around the pluggable interface.
• Through Hole Mounting
  Designed for reliable PCB mounting with solder termination and 2.8 mm tail length.
• SFP+ Compatibility
  Supports SFP+ applications and data rates up to 16 Gb/s.
• Industrial Temperature Range
  Supports operation from -55 to 105 C for demanding networking environments.

Packing Details

If you need detailed information about our packaging specifications and requirements, please feel free to contact us directly. We will be happy to provide you with the details.

Applications

• Network Switches
  SFP+ interfaces for high speed network switching equipment.
• Routers
  Suitable for SFP+ connectivity in networking hardware.
• Servers
  Used for pluggable optical or copper network interfaces.
• Storage Systems
  Supports SFP+ connectivity in data storage equipment.
• PCI Applications
  Designed for board level applications requiring SFP+ cage mounting.

Frequently Asked Questions (FAQ)

Q: What is a 1x1 SFP cage connector with grounding pin used for?
A: It is designed to house and shield a single SFP+ module on a PCB. The grounding and EMI features help provide controlled shielding around the pluggable interface.

Q: How does external EMI spring shielding improve an SFP+ cage?
A: External EMI springs help establish shielding around the cage and support EMI containment when the SFP+ module is installed, making the cage suitable for networking and PCI applications.

Q: What PCB mounting method does this SFP cage connector use?
A: The design uses through hole solder termination with 2.8 mm termination tails and is intended for board mounting. The recommended PCB thickness is 1.5 mm.
