2x4 SFP Cage Connector with Integrated Connector and EMI Springs S2N3D23004BA4（Cross out TE Connectivity 2007394-5)

Product Overview

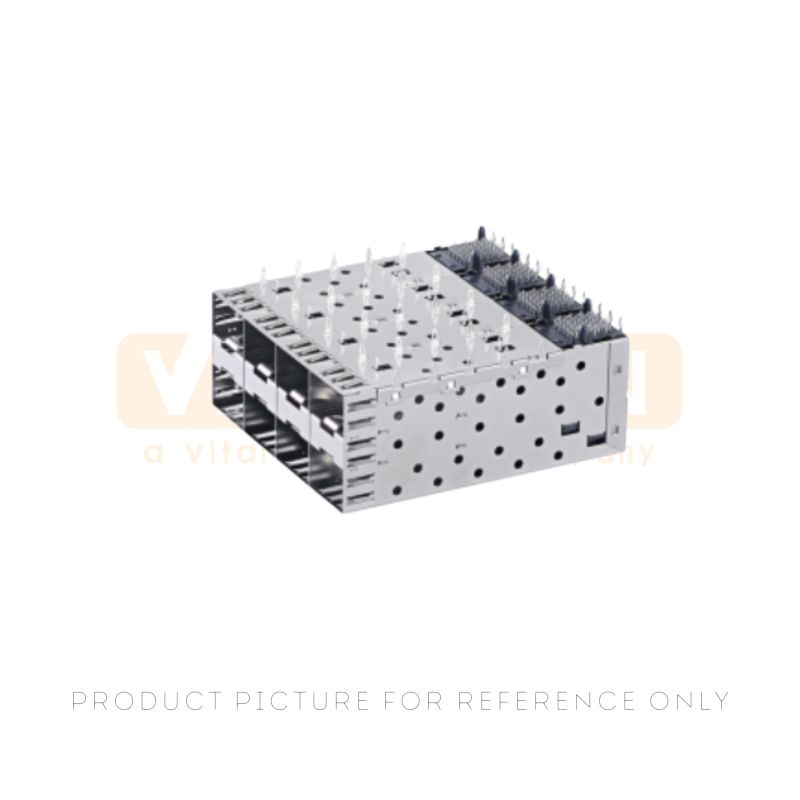

2x4 SFP Cage Connector designed as a stacked eight-port SFP+ cage assembly with integrated connector. It features a 0.8 mm pitch, through hole press fit termination, internal and external EMI springs, integrated lightpipes and support for data rates up to 16 Gb/s. The assembly operates from -55 to 105 C.

Product Specifications

Product Features

• 2x4 Stacked Configuration
  Provides eight SFP+ ports in a compact stacked arrangement for high density board designs.
• Integrated Connector
  Combines the SFP cage and connector assembly into one integrated interface.
• Press Fit Termination
  Supports through hole press fit PCB mounting with 3 mm termination tails.
• EMI Shielding
  Internal and external EMI springs help provide electromagnetic shielding around the interface.
• Integrated Lightpipes
  Includes integrated lightpipes for visual status indication in SFP+ equipment.

Packing Details

If you need detailed information about our packaging specifications and requirements, please feel free to contact us directly. We will be happy to provide you with the details.

Applications

• Network Switches
  High density SFP+ interfaces for network switching equipment.
• Data Center Equipment
  Supports compact high speed connectivity in data center systems.
• Routers
  Suitable for stacked SFP+ interfaces in network routing platforms.
• Storage Systems
  Provides high density pluggable interfaces for storage equipment.
• Communication Equipment
  Designed for signal applications requiring multiple SFP+ ports.
