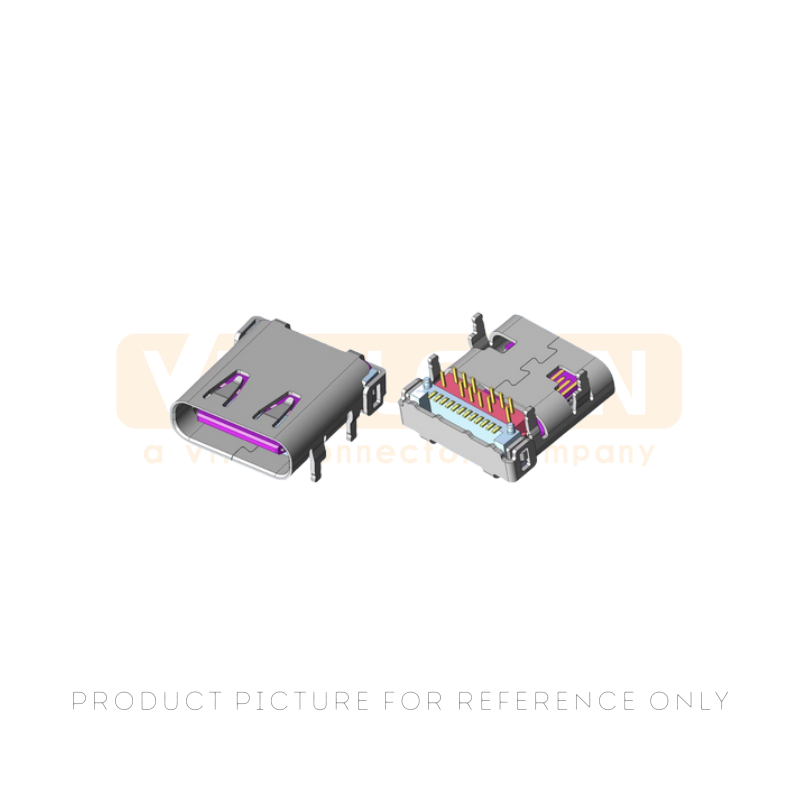

Cross-out Reference24 Pin 1.6 mm Mid Mount USB Type C Connector UC015752E1(Cross out JAE USB3_J117601-1090959)
24 Pin 1.6 mm USB Type C Connector with double row SMT design supports 5A VBUS current and 10000 mating cycles for reliable compact applications.
Part Number :
UC015752E1Product Category :
USB Type-C Connector
Product Overview
24 Pin 1.6 mm Mid Mount USB Type C Connector featuring 24 contacts, double row SMT construction, and a compact recessed design. UC015752E1 supports up to 5A VBUS current and 20V rated voltage.
Product Specifications / Attributes
| Specification | Details |
|---|---|
| Product Type | USB Type C Connector |
| Part Number | UC015752E1 |
| Number of Pins | 24 |
| Mounting Type | SMT |
| Connector Structure | Double Row |
| PCB Thickness | 1.6 mm |
| Rated Current | 5A VBUS; 0.25A Other Pins |
| Rated Voltage | 20V |
| Contact Resistance | 40 mΩ Max Initial; 50 mΩ Max After Test |
| Insulation Resistance | 100 MΩ Min |
| Durability | 10000 Cycles |
| Operating Temperature | -40°C to +85°C |
Features&Benefits
Packing Details
If you need detailed information about our packaging specifications and requirements, please feel free to contact us directly. We will be happy to provide you with the details.
Applications
Frequently Asked Questions (FAQ)
Q: What are the key specifications of this 24 pin USB Type C connector?
A: UC015752E1 has 24 pins, a 1.6 mm PCB thickness design, SMT mounting, 20V rated voltage, and 5A VBUS current rating.
Q: Is the UC015752E1 suitable for compact PCB applications?
A: Yes. Its mid mount recessed structure and double row SMT design support space-conscious PCB layouts.
Q: How many mating cycles does this USB Type C connector support?
A: The drawing specifies a durability rating of 10000 cycles.
