Cross-out Reference24 Pin 9.17 mm USB4 Type C Connector with Double SMT Mounting UC42812706482G2(Cross out TE 12402076)
24 Pin 9.17 mm USB4 Type C Connector with double SMT design and 5A rated current for compact PCB applications and reliable USB4 connectivity.
Part Number :
UC42812706482G2Product Category :
USB Type-C Connector
Product Overview

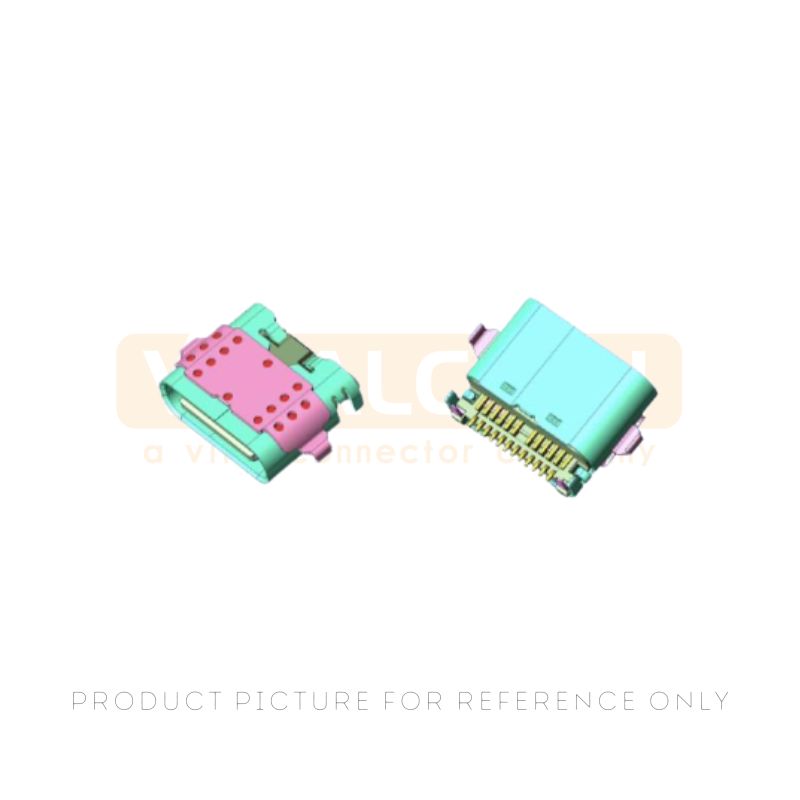

24 Pin 9.17 mm USB4 Type C Connector designed as a board-mounted receptacle with a rear cover and single-shell construction. UC42812706482G2 features double SMT mounting, 5A rated current, and 10000 mating cycles.
Product Specifications / Attributes
| Specification | Details |
|---|---|
| Product Type | USB4 Type C Connector |
| Part Number | UC42812706482G2 |
| Connector Type | USB Type C Receptacle |
| Number of Pins | 24 |
| Overall Length | 9.17 mm |
| Mounting Type | SMT |
| Mounting Structure | Double SMT |
| Rated Current | 5.0 A |
| Voltage Rating | 5V AC |
| Contact Resistance | 40 mΩ Max. |
| Durability | 10000 Cycles |
| Operating Temperature | -40°C to +85°C |
Features&Benefits
Packing Details
If you need detailed information about our packaging specifications and requirements, please feel free to contact us directly. We will be happy to provide you with the details.
Applications
Frequently Asked Questions (FAQ)
Q: What are the key specifications of this 24 pin USB4 Type C connector?
A: UC42812706482G2 features 24 pins, 9.17 mm overall length, 5A rated current, SMT mounting, and 10000-cycle durability.
Q: Is this 9.17 mm USB Type C receptacle suitable for compact PCB designs?
A: Yes. Its compact 9.17 mm length and board-mounted SMT construction support space-conscious PCB applications.
Q: How durable is the UC42812706482G2 USB4 connector for repeated connections?
A: The product drawing specifies a durability rating of 10000 cycles, supporting repeated mating and unmating operations.
