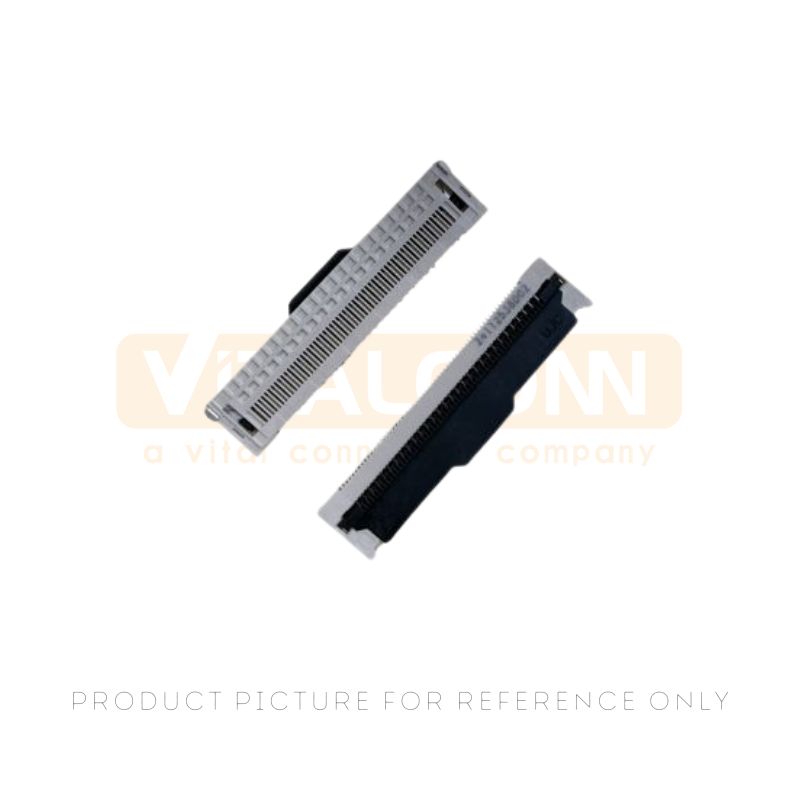

FPC Connectors 0.5mm PitchFPC connector 0.5mm Pitch ZIF Right Angle SMT F05057FA010M1WLJ9
This high-performance FPC connector features a 0.5mm pitch and a low-profile 2.1mm height design. Engineered with a durable ZIF flip-lock mechanism, it guarantees secure flex cable retention and optimal conductivity for modern compact electronic applications.
Part Number :
F05057FA010M1WLJ9Product Category :
FPC connector
Product Overview
The F05057FA010M1WLJ9 is a high-reliability ZIF flex cable connector built for high-density SMT PCB layouts. Featuring a heat-resistant LCP plastic housing and phosphor copper terminals , this 0.5mm pitch 10-pin component delivers superior electrical performance and mechanical durability in space-constrained designs.
Product Specifications
| Parameter | Specification |
| Pitch |
0.50 mm |
| Pin Count |
10 Pins |
| Connector Type |
ZIF (Zero Insertion Force), Flip-Lock |
| Mounting Type |
Surface Mount (SMT) |
| Profile Height |
2.10 mm |
| Current Rating |
0.5A AC/DC |
| Voltage Rating |
50V AC/DC |
| Contact Resistance |
30 mΩ Max |
| Insulation Resistance |
100 MΩ Min at 500V DC |
| Operating Temp |
-40°C to +85°C |
| Housing Material |
LCP UL94V-0 (Natural Color) |
| Contact Material |
Phosphor Copper / Copper Alloy |
Features&Benefits
0.5mm Pitch Design: Enables high-density circuit routing in ultra-compact electronic devices.
ZIF Flip-Lock Actuator: Ensures effortless flex cable insertion and robust mating retention strength.
Low-Profile Form Factor: Features a minimal 2.1mm height to save valuable board space.
High-Temp SMT Housing: Made with LCP plastic for excellent reflow soldering heat resistance.
Reliable Contact Interface: Phosphor copper contacts provide stable conductivity and corrosion resistance.
Packing Details
Packaging Type: Tape & Reel with Vacuum Sealed Bag and Desiccant.
Reel Quantity: 2,000 PCS / Reel.
Carton Quantity: 20,000 PCS / Outer Box (10 Reels).
Carton Dimensions: 340 mm x 340 mm x 310 mm.
Applications
Consumer Electronics: Smartphones, tablets, digital cameras, and wearable devices.
Display Modules: LCD, OLED screens, and touch panel module connections.
Medical Equipment: Portable medical monitors and handheld diagnostic devices.
Automotive Systems: Infotainment displays, dashboard controls, and sensor modules.
Industrial Controls: Compact robotics, handheld terminals, and automation hardware.
Frequently Asked Questions (FAQ)
Q: What type of cable is compatible with this ZIF flex cable connector?
A: It is designed for standard 0.5mm pitch FPC/FFC cables with a recommended contact thickness of 0.30mm.
Q: What is the operating temperature range for this low-profile surface mount connector?
A: The connector operates reliably across a temperature range of -40°C to +85°C, suitable for harsh environments.
Q: Does this high-density FPC connector support automated SMT assembly line production?
A: Yes, it is supplied in industry-standard Tape & Reel packaging designed for high-speed automated SMT pick-and-place processes.
