High Precision 1.35H Push Push Micro SIM card sockets connectors VTC102032572(Cross out MOLEX 5039600696)

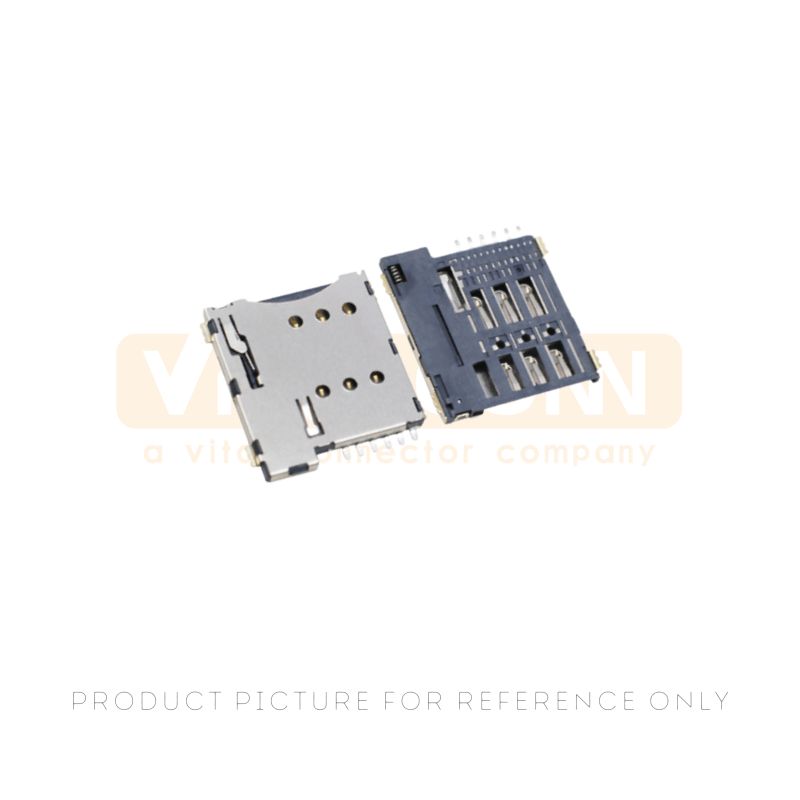

High Precision 1.35H Push Push Micro SIM card sockets connectors VTC102032572(Cross out MOLEX 5039600696)

The VTC102032572 is a high-performance Micro SIM interface solution within our professional card sockets connectors lineup, specifically engineered with a reliable push-push mechanism to facilitate effortless card management in space-constrained mobile hardware.

  • Part Number :

    VTC102032572

  • Product Category :

    card sockets connectors
Inquire Now
PDF Download

Product Overview

The VTC102032572 is a professional-grade 1.35mm Push Push Micro SIM card sockets connectors solution designed for high-density electronic assemblies. Built with industrial-grade LCP UL94V-0 black housing and a durable SUS304 stainless steel cover, it ensures mechanical robustness and signal integrity for cellular communication modules.



Product Specifications / Attributes

  • Card Type: Micro SIM (3FF).
  • Mating Mechanism: Push-Push (P-P).
  • Profile Height: 1.35mm.
  • Voltage/Current Rating: 30V / 0.5A.
  • Insulation Resistance: 1000MΩ Min.
  • Operating Temperature: -40℃ to +75℃.
  • This 6 Pin SMT Micro SIM card sockets connectors model includes an integrated card detection switch configured as "Normally Short" which triggers to "Open" upon card insertion.



Features&Benefits

  • Space-Efficient Architecture: The ultra-slim 1.35mm height makes this Low Profile Push Push card sockets connectors unit ideal for ultra-thin portable electronics and handheld devices.
  • Superior Conductivity: Utilizes phosphor bronze terminals with gold flash plating in the contact area and matte tin in the solder area to ensure high signal integrity.
  • Integrated Sensing: Features a built-in detection switch (CD) to provide real-time card presence status for system firmware.
  • Automated Assembly Ready: Supplied in 24mm width PET carrier tape format, fully compatible with high-speed automated pick-and-place manufacturing processes.



Packing Details

  • Quantity per Reel: 1,000 PCS per 13-inch blue reel.
  • Quantity per Carton: 10,000 PCS per box (consisting of 10 reels).
  • Internal Protection: Each master carton (350350340mm) includes pearl wool cushioning and anti-collision beams to ensure safe global transit.
  • Packaging Materials: PET carrier band (W=24mm), self-adhesive tape, and PE moisture-barrier bags.



Applications

  • Ultra-slim smartphones and high-end mobile handsets.
  • Industrial IoT gateway modules and smart sensors.
  • Portable handheld data terminals and scanning equipment.
  • Wearable smart technology and cellular tracking devices.
  • Automotive infotainment and navigation systems.



Frequently Asked Questions (FAQ)

  • Q: What is the circuit logic of the detection switch for this model?
  • A: The integrated detection switch is "Normally Short" and changes to an "Open" state immediately upon card insertion within these card sockets connectors.
  • Q: What metallic materials ensure the durability of the VTC102032572?
  • A: This unit is constructed with a SUS304 stainless steel cover and phosphor bronze terminals with nickel underplating to ensure long-term mechanical reliability.
  • Q: Is this product suitable for high-density SMT assembly?
  • A: Yes, these card sockets connectors are designed for surface-mount technology and are supplied in reels optimized for high-speed automated production lines.
