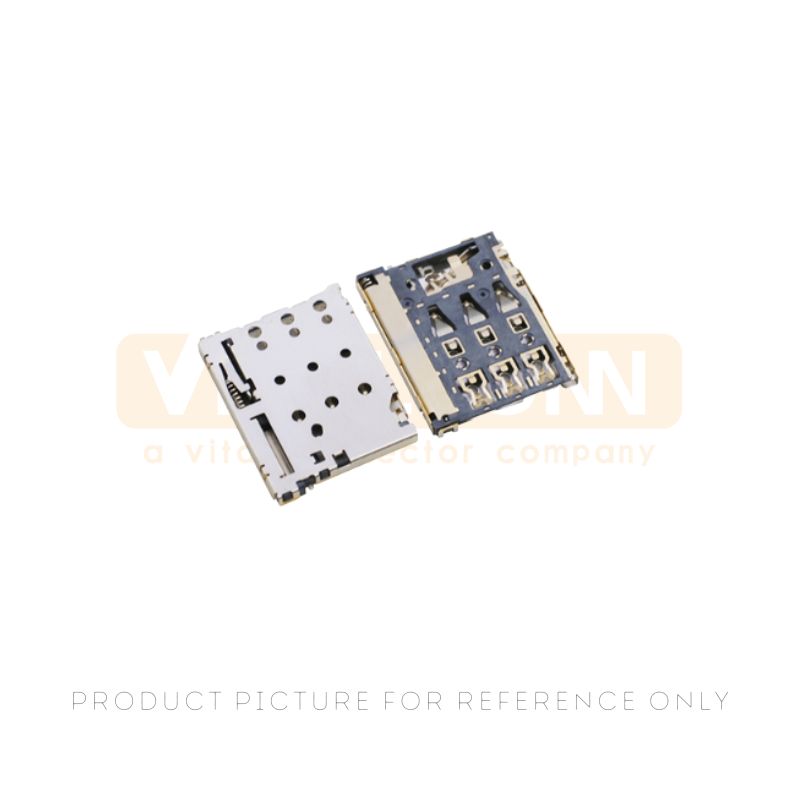

High Precision Nano SIM 6 Pin H1.25 Push Push card sockets connectors VTC102322824(Cross out JAE SF72S006VBDR2500)

High Precision Nano SIM 6 Pin H1.25 Push Push card sockets connectors VTC102322824(Cross out JAE SF72S006VBDR2500)

The VTC102322824 is a high-performance Nano SIM interface solution within our professional card sockets connectors lineup, specifically engineered with a reliable push-push mechanism to facilitate effortless card insertion and ejection in compact mobile hardware.

  • Part Number :

    VTC102322824

  • Product Category :

    card sockets connectors
Inquire Now
PDF Download

Product Overview

The VTC102322824 is a professional-grade Push Push Nano SIM card sockets connectors model designed for high-density electronic assemblies. With its ultra-slim 1.25mm profile and integrated card detection switch, it offers a robust electrical and mechanical interface for Nano SIM cards while significantly saving board space.



Product Specifications / Attributes

  • Card Type: Nano SIM (6 Pin).
  • Mating Mechanism: Push-Push (P-P).
  • Profile Height: 1.25mm.
  • Voltage/Current Rating: 30V / 0.5A.
  • Insulation Resistance: 1000MΩ Min.
  • Withstanding Voltage: 500V DC for 1 minute.
  • Operating Temperature: -40℃ to +85℃.
  • This H1.25 Low Profile card sockets connectors unit is constructed with high-temperature LCP UL94V-0 plastic and a SUS304 stainless steel cover for superior structural integrity.



Features&Benefits

  • Advanced Contact Design: Every 6 Pin SMT SIM card sockets connectors unit utilizes phosphor bronze terminals with gold flash plating in both contact and solder areas to ensure optimal conductivity and oxidation resistance.
  • Integrated Monitoring: Features a built-in detection switch (CD1/CD2) to provide real-time card presence status for system firmware.
  • High Precision Manufacturing: Adheres to strict industrial tolerances, including ±0.10mm for critical fine-pitch dimensions, ensuring high assembly yields.
  • Automated Assembly Ready: Supplied in 24mm width carrier tape format, fully compatible with high-speed automated pick-and-place manufacturing processes.



Packing Details

  • Quantity per Reel: 2,000 PCS.
  • Quantity per Carton: 20,000 PCS (consisting of 10 reels).
  • Packaging Materials: PS carrier band (W=24mm), blue 13-inch reels, and vacuum-sealed PE bags.
  • Internal Protection: Each master carton (350350340mm) includes pearl wool cushioning and anti-collision beams to ensure safe global transit.



Applications

  • Ultra-slim smartphones and high-end mobile handsets.
  • Cellular IoT gateway modules and smart sensors.
  • Portable handheld data terminals and scanning equipment.
  • Wearable smart technology and 5G communication devices.
  • Automotive infotainment and telematics systems.



Frequently Asked Questions (FAQ)

  • Q: What is the circuit state of the detection switch for this model?
  • A: The integrated detection switch allows the system to monitor the status of the card, triggering signal changes between "Without Card" and "Card Inserted".
  • Q: What metallic materials ensure the durability of the VTC102322824?
  • A: The connector is built with a SUS304 stainless steel cover and high-grade phosphor bronze terminals for long-term mechanical reliability in card sockets connectors applications.
  • Q: What is the maximum height of this Nano SIM interface?
  • A: This model features an ultra-low profile height of only 1.25mm, making it ideal for space-constrained hardware designs.
