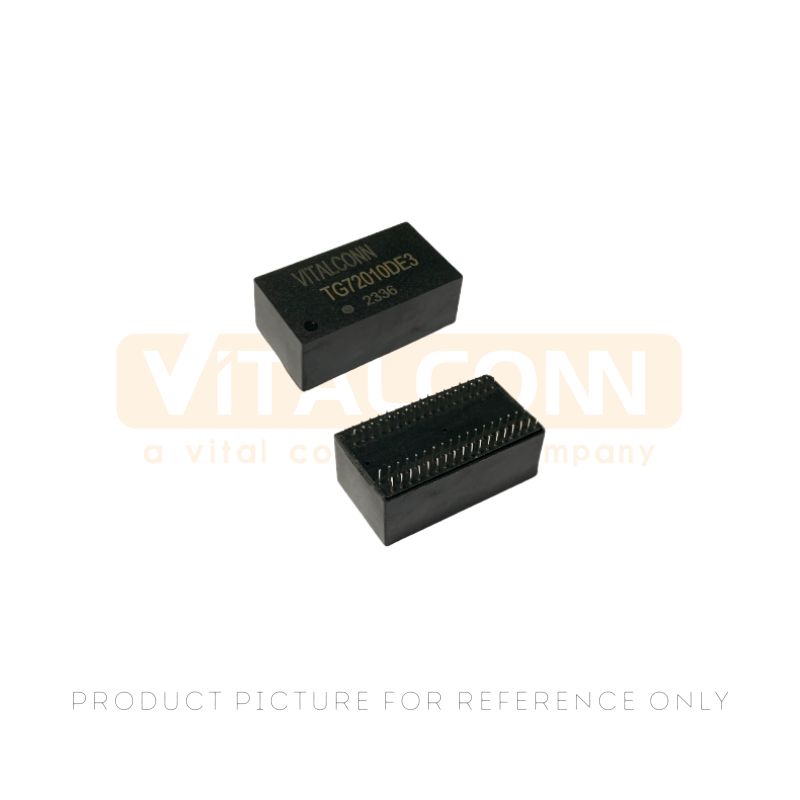

Networking Connectors LAN Transformer ModulesLAN Transformer Modules High Performance Gigabit LAN Magnetics Solutions TG72010DE3
Explore high performance Gigabit Quad Port Ethernet Magnetics for reliable network equipment designs, optimized using quality LAN Transformer Modules for clear signal integrity.
Part Number :
TG72010DE3Product Category :
LAN Magnetics
Product Overview
LAN Magnetics performance is critical for reliable data transmission. The TG72010DE3 is a high-grade 10/100/1000 BASE-T quad port module designed to optimize signal integrity, reduce electromagnetic interference, and deliver high electrical isolation in dense networking environments.
Product Specifications / Attributes
| Parameter | Specification |
| Part Number | TG72010DE3 |
| Interface / Speed | 10/100/1000 BASE-T Gigabit Ethernet |
| Port Configuration | Quad Port (4-Port) |
| Standard Compliance | IEEE 802.3ab Standard |
| Environmental Standard | RoHS Compliant |
| Inductance (OCL) | 350uH Min @ 100KHz, 0.1V with 8mA DC Bias |
| Isolation Voltage (Hi-POT) | 1500VAC, 1mA, 2S |
| Turns Ratio | 1:1 ± 2% |
| Insertion Loss | -1.0dB Max (1-100MHz) |
| Return Loss (1-30MHz) | -18dB Min |
| Cross Talk (1-100MHz) | -30dB Min |
Features&Benefits
Packing Details
If you need detailed information about our packaging specifications and requirements, please feel free to contact us directly. We will be happy to provide you with the details.
Applications
Frequently Asked Questions (FAQ)
Q: What standards do these LAN Transformer Modules comply with?
A: The TG72010DE3 complies fully with the IEEE 802.3ab standard for 10/100/1000 BASE-T Gigabit Ethernet applications, ensuring seamless interoperability and high signal integrity across industrial and enterprise networking environments.
Q: What are the primary electrical isolation characteristics of these components?
A: These Quad Port Ethernet Magnetics provide a Hi-POT isolation voltage rating of 1500VAC for 2 seconds, effectively shielding connected PHY controllers and networking equipment from ground loops and line voltage transients.
Q: What is the operating temperature range for the TG72010DE3?
A: The TG72010DE3 features an operating temperature range from 0°C to +70°C and a storage temperature range from -20°C to +125°C, making it suitable for commercial and standard industrial networking setups.
