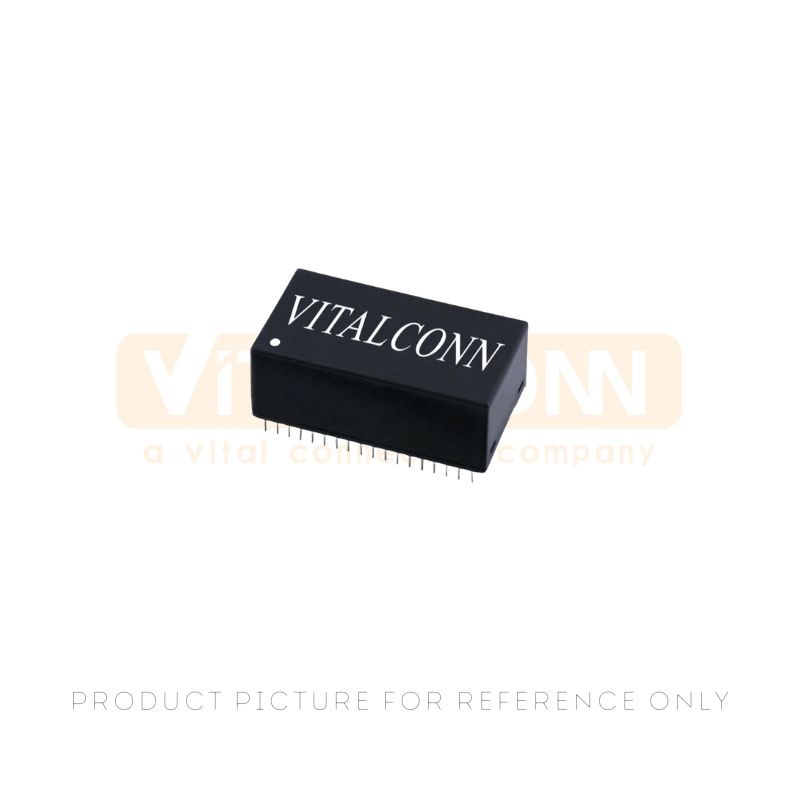

LAN Transformer Modules High Quality Quad Port Gigabit LAN Magnetics TG72010D1

LAN Transformer Modules High Quality Quad Port Gigabit LAN Magnetics TG72010D1

Discover reliable LAN Transformer Modules for high performance Gigabit networking applications, providing superior signal integrity and strong EMI isolation.

  • Part Number :

    TG72010D1

  • Product Category :

    LAN Magnetics
Inquire Now
PDF Download

Product Overview

Engineered for reliable network hardware, the TG72010D1 module optimizes signal transmission and reduces electromagnetic interference. Utilizing advanced LAN Magnetics design, it provides exceptional isolation, stability, and full IEEE 802.3ab compliance for high-density 1000 BASE-T Ethernet applications across diverse commercial networking setups.



Product Specifications / Attributes

Specification Parameter Value / Detail
Model Number TG72010D1
Network Standard 1000 BASE-T Ethernet
IEEE Compliance IEEE 802.3ab Standard
Port Configuration Quad Port (4-Port)
Operating Temperature 0°C to +70°C
Storage Temperature -25°C to +85°C
Inductance (OCL) 350 uH Min @ 100kHz, 100mV with 8mA DC Bias
Isolation Voltage (HI-POT) 1500 Vrms
Turns Ratio 1CT : 1CT
Insertion Loss (1-100 MHz) -1.0 dB MAX
Return Loss (1-30 MHz) -18.0 dB MIN
Cross Talk (100 MHz) -30 dB MIN

Features&Benefits

  • IEEE Standard Complies with IEEE 802.3ab standard for reliable Gigabit 1000 BASE-T connectivity.
  • Quad Port Density Integrates 4-port functional channels to save critical PCB layout space efficiently.
  • Signal Suppression Delivers low crosstalk and excellent differential-to-common-mode rejection for maximum transmission clarity.
  • High Isolation Supports 1500 Vrms HI-POT voltage rating to protect delicate network IC components safely.
  • Environmental Safety RoHS compliant structure ensures eco-friendly hardware integration for Quad Port Ethernet Magnetics.



Packing Details

If you need detailed information about our packaging specifications and requirements, please feel free to contact us directly. We will be happy to provide you with the details.



Applications

  • Network Switches Ideal for multi-port Gigabit enterprise network switch designs.
  • Industrial Routers Ensures robust transmission for industrial gateways.
  • Network Interface Cards Delivers reliable port isolation on high-density NICs.
  • Server Storage Units Maintains clean signal throughput for enterprise servers.
  • Telecommunication Hardware Provides high stability for telecommunications terminal equipment.



Frequently Asked Questions (FAQ)

  • Q: What standards do these LAN Transformer Modules comply with?Q: What standard does this LAN Transformer Modules product meet?
         A: The TG72010D1 fully complies with the IEEE 802.3ab standard for 1000 BASE-T applications, ensuring reliable Gigabit Ethernet data processing, high signal integrity, and broad compatibility with modern networking PHY chipsets.
  • Q: What isolation protection does this product provide?
     A: Equipped with advanced Quad Port Ethernet Magnetics technology, this component offers a high isolation rating of 1500 Vrms HI-POT, effectively safeguarding sensitive motherboard circuits against high voltage spikes and common-mode noise.
  • Q: What is the operational temperature range of the TG72010D1?
    A: This component operates efficiently within a standard temperature range of 0°C to +70°C and supports a wide storage temperature range of -25°C to +85°C for reliable performance.
