Consumer Connectors Card Sockets Connectors SD Memory Card ConnectorSD 4.0 Card Slot Connector Push Pull VTC102014992
This is a surface-mount (SMD) card connector designed for SD 4.0 memory cards. It features a manual push-in, pull-out mechanism for card handling.
Part Number :
VTC102014992Product Category :
Card SocketsCard Socket Type :
ConnectorCompatible Card :
SD 4.0Removal Method :
Push in, pull outCard Detect Switch :
YesNumber of Positions :
19
Product Overview
The VTC102014992 is a standard SD 4.0 card slot connector that provides a reliable and simple interface for high-speed data storage in electronic devices. Its push-pull design offers a durable and cost-effective solution for applications where frequent card swapping is expected.
Product Specifications / Attributes
⦁Connector Type: Connector
⦁Compatible Card: SD 4.0
⦁Removal Method: Push in, pull out
⦁Mounting Type: Surface Mount Device (SMD)
⦁Card Detect Switch: Yes
⦁Number of Positions: 19
⦁Contact Finish: Gold Plated
⦁Contact Finish Thickness: Gold Flash
Features&Benefits
1. Manual Push-Pull Operation: Provides a straightforward and reliable method for inserting and removing SD cards.
2. Card Detection: Includes a built-in switch to detect the presence of a card, enabling proper system handshake.
3. High-Speed Compatibility: Designed for the SD 4.0 standard, supporting fast data transfer rates.
4. Gold Flash Plating: Contact surfaces are plated with a thin layer of gold over nickel for good conductivity and oxidation resistance.
5. SMD Footprint: Suitable for automated pick-and-place assembly on printed circuit boards (PCBs).
Applications
This connector is ideal for integration into various electronic devices that require removable, high-capacity storage, such as:
⦁Industrial PCs and embedded computing systems
⦁Network attached storage (NAS) and routers
⦁Digital video recorders (DVRs) and surveillance equipment
⦁Medical imaging and diagnostic devices
⦁Automotive dashboard systems and infotainment units
Frequently Asked Questions (FAQ)
Q1: What type of SD card does this connector support?
A1: It is designed specifically for the SD 4.0 memory card standard.
Q2: How do I remove the card from this slot?
A2: This connector uses a manual push-pull mechanism. To remove the card, you simply pull it straight out from the slot.
Q3: Does this connector indicate when a card is fully inserted?
A3: Yes, it is equipped with a card detect switch that signals the host device when a card is properly seated in the slot.
This USB Type C receptacle is designed for horizontal mounting with a 16-pin configuration, supporting USB 2.0 data transfer speeds. It features gold-plated terminals (3µ thickness) and a mid-surface mount design with a 0.8mm offset height. The connector is packaged on tape and reel (T&R) for automated assembly.
Read More
This is a USB Type C female (receptacle) connector designed for surface-mount technology (SMT) applications. It features a single-row 16-pin configuration with a board-mount height of 0.8mm, housed in a black PA plastic body with nickel-plated contacts.
Read More
The UC22-4E1H1A103-0HR-02 is a USB Type C female connector (receptacle) designed for horizontal, surface-mount installation on printed circuit boards (PCBs). It features a single-row, 16-pin configuration compliant with USB 2.0 standards. A key characteristic of this model is its 2.1mm recessed (offset) mounting height, which allows for a lower profile integration compared to standard board-mounted connectors .
Read More
This is a horizontal surface-mount USB Type C female receptacle with 16 pins, designed for USB 2.0 data transfer and power delivery applications. It features a standard center height and is compatible with automated pick-and-place processes.
Read More
This is a USB Type C female jack designed for USB 2.0 applications. It features a horizontal orientation, surface mount (SMT) termination, and a long body length of 6.5mm with an onboard mounting height of 0.5mm.
Read More
This is a USB Type C female receptacle with a single row of 16 pins, designed for USB 2.0 applications. It features a horizontal surface mount (SMT) style, an integrated shell design, and a raised center height of approximately 5.9mm.
Read More

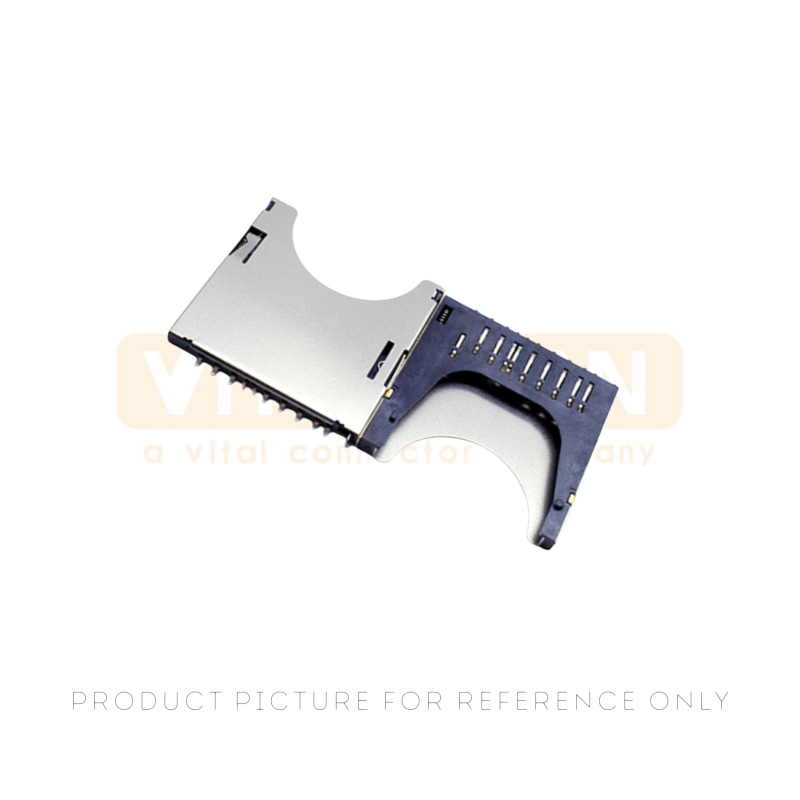

This is an SD card push-type connector designed for internal soldering applications. It features an LCP (Liquid Crystal Polymer) housing with black glue and utilizes stainless steel components for durability.
Read More
This is an SD card connector of the "NO PUSH" type, designed for external soldering applications. It features an LCP (Liquid Crystal Polymer) housing with black glue, C5210 terminals, and a durable stainless steel shell.
Read More

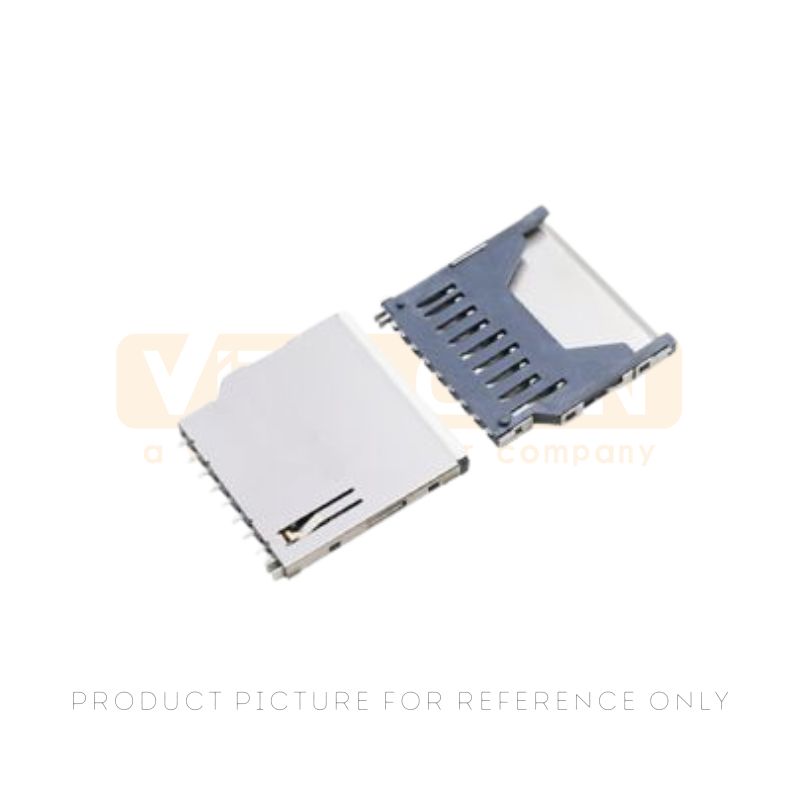

This is an SD card push-type connector designed for external soldering applications. It may feature an LCP (Liquid Crystal Polymer) housing with black glue and utilize stainless steel components for durability
Read More

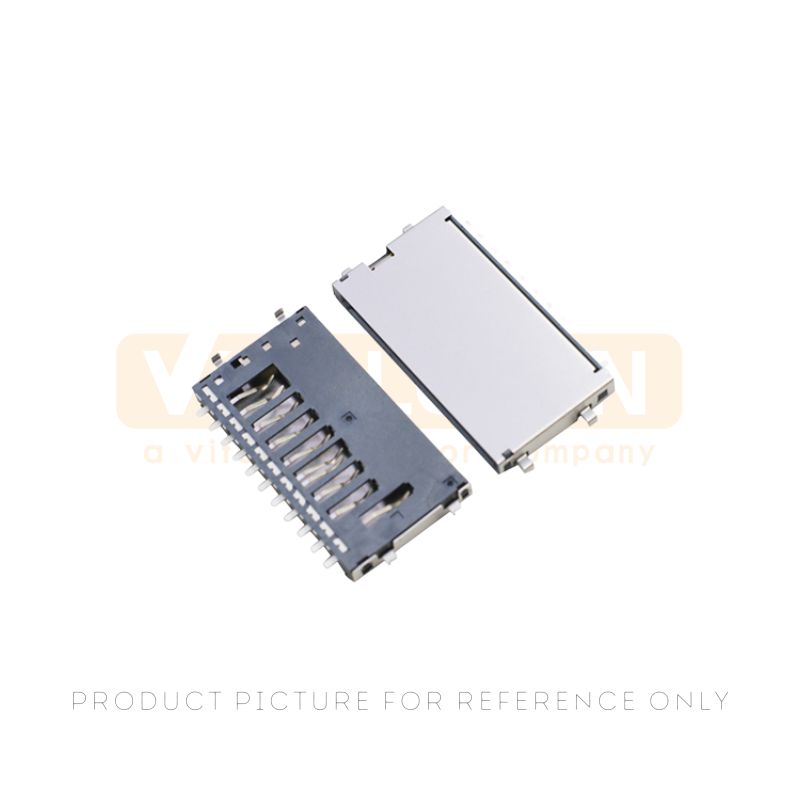

This is a flush-mount (off-set) SD card connector of the "NO PUSH" type. It features an LCP (Liquid Crystal Polymer) housing with black glue, C5191 copper alloy contacts, and a durable stainless steel shell.
Read More

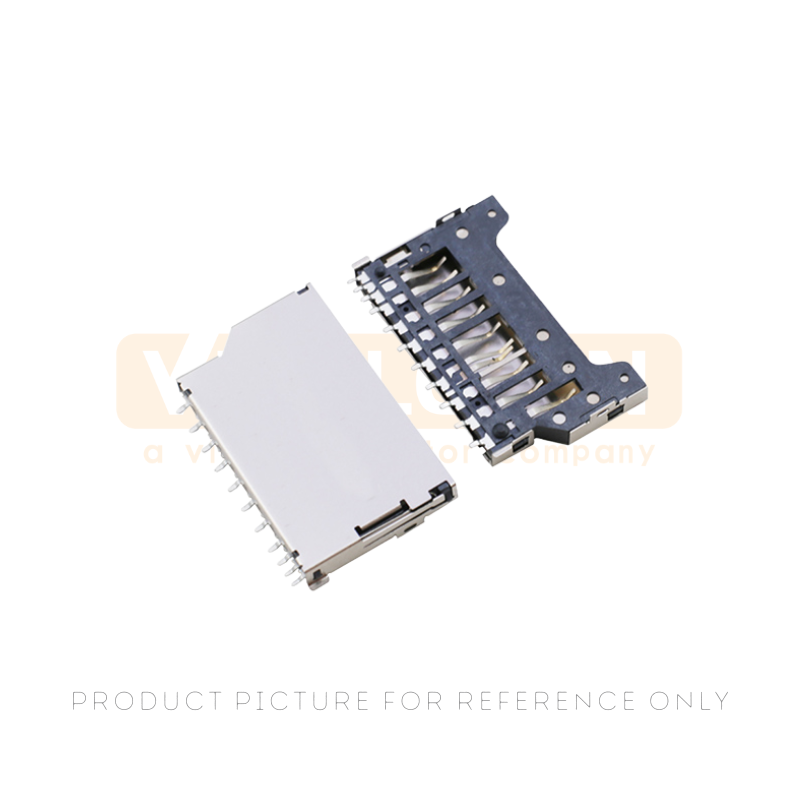

This is a surface-mount SD card connector with a specified height of 3.45mm. It features a housing made from LCP (Liquid Crystal Polymer) with black glue and utilizes C5191 copper alloy terminals.
