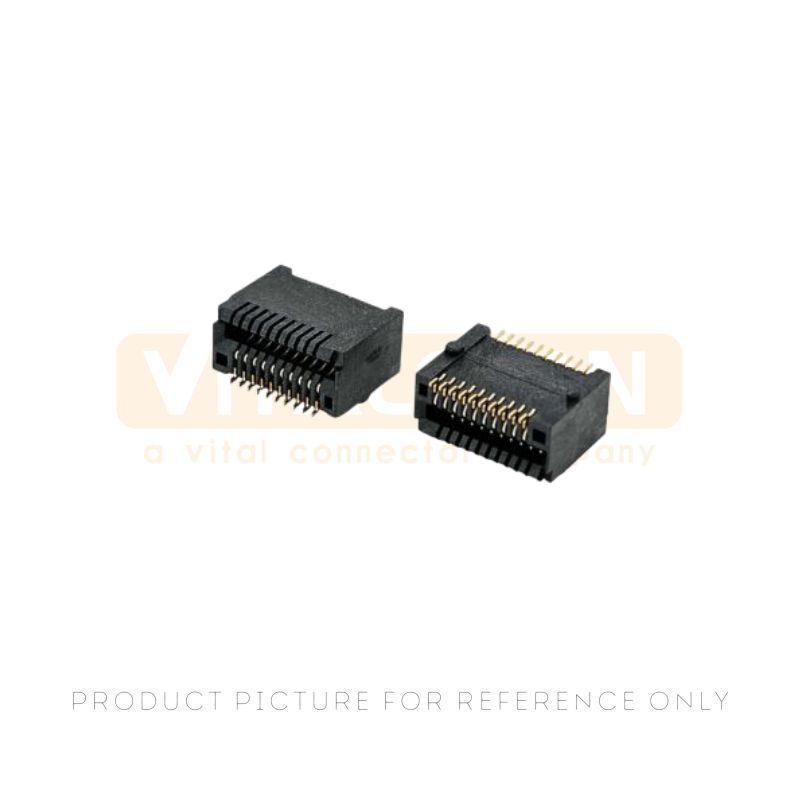

SFP+ 1x1 20 Pin Connector High Speed Surface Mount S2C2100D00B（Cross out TE 1888247-1）

Product Overview

The SFP+ 1x1 20 pin connector S2C2100D00B provides dependable electrical connection for high-speed transceivers. Built with durable phosphor bronze contacts, 15u gold plating, and a black UL94 V-0 LCP insulator, it supports operating temperatures between -40C and +95C while enduring up to 100 mating cycles.

Product Specifications

Product Features

• • High-Temperature LCP Housing: Built with UL94 V-0 rated thermoplastic insulator to withstand peak reflow profile temperatures up to 265C.
  • Gold Plated Contacts: Features 15 microinch gold plating on mating areas ensuring low contact resistance and long-term signal integrity.
  • Durable Mechanical Design: Built to withstand up to 100 mating cycles with maximum insertion force under 40N.
  • Wide Operating Range: Operates reliably from -40C to +95C in demanding commercial and industrial networking applications.
  • Automated SMT Assembly: Supplied in tape and reel packaging to facilitate seamless automated pick-and-place surface mount processes for this high-speed SFP cage connector socket.

Packing Details

If you need detailed information about our packaging specifications and requirements, please feel free to contact us directly. We will be happy to provide you with the details.

Applications

• Optical Transceivers: SFP and SFP+ module interface ports.
• Ethernet Switches: High-speed network routers and top-of-rack switches.
• Storage Area Networks: Fibre Channel host bus adapters and SAN switches.
• Telecommunications: Wireless base station transport units and broadband gateways.
• Network Interface Cards: Enterprise server NICs and high-density line cards.



Frequently Asked Questions (FAQ)

Q: What reflow soldering profile does this SFP+ 1x1 20 pin connector support?
A: The connector features a high-temperature LCP housing that withstands peak reflow soldering temperatures of 255C to 265C for 5 to 10 seconds during automated SMT assembly processes.

Q: How does the surface mount SFP transceiver socket ensure long-term contact reliability?
A: Manufactured with phosphor bronze contacts plated with 15 microinches of gold over a 50 microinch nickel underplate, it guarantees initial contact resistance under 20 milliohms over 100 mating cycles.

Q: Is this SFP+ 20 pin connector suitable for industrial temperature environments?
A: Yes, it is rated for operating temperatures ranging from -40C to +95C and storage temperatures from -55C to +105C, ensuring reliable performance in demanding industrial telecommunication systems.
