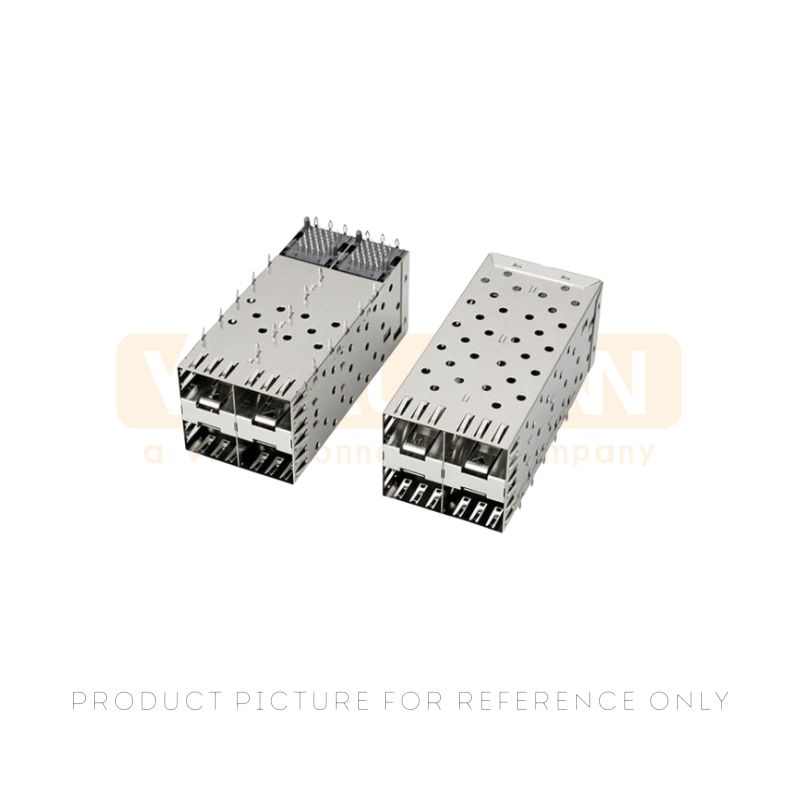

SFP 2x2 Combo Connector High Speed Dual Row Cage Assembly S1N3B23000CA4（Cross out TE 2110304-1）

Product Overview

The SFP 2x2 combo connector S1N3B23000CA4 delivers robust signal integrity and superior electromagnetic interference shielding for high-density networking applications. Designed with a dual-row 2x2 port layout, integrated grounding pins, copper alloy nickel-plated cage, and high-temperature LCP housing, it ensures reliable high-speed data transmission across operating temperatures ranging from -40C to +85C.

Product Specifications

Product Features

• • Integrated Grounding Pin Design: Enhances structural rigidity and grounding continuity to maintain high signal integrity in dense board configurations using this high performance SFP cage assembly.
  • Robust EMI Shielding: Features a 0.25 mm nickel-plated copper alloy cage to minimize electromagnetic radiation and external cross-talk.
  • High-Temperature Housing: Built with UL94 V-0 rated liquid crystal polymer withstands rigorous lead-free soldering processes.
  • Premium Contact Plating: 30 microinch gold plating ensures low contact resistance, excellent wear resistance, and reliable multi-mating durability.
  • Integrated Light Pipes: Features clear polycarbonate light pipe channels to enable efficient status LED visual monitoring.



Packing Details

If you need detailed information about our packaging specifications and requirements, please feel free to contact us directly. We will be happy to provide you with the details.

Applications

• Data Center Switches: High-density top-of-rack switches and aggregation routers.
• Enterprise Networking: Core gateways, SAN infrastructure, and high-speed optical transceivers.
• Telecommunications: Base stations, broadband access nodes, and edge storage arrays.
• Server Storage: High-performance server line cards and network interface cards.
• Industrial Automation: Heavy-duty Gigabit Ethernet transmission systems.

Frequently Asked Questions (FAQ)

Q: How does the SFP 2x2 combo connector improve port density and signal stability?
A: The dual-row 2x2 structure doubles available port count within compact board space, while integrated grounding pins and a full nickel-plated copper shield minimize cross-talk and preserve signal integrity.

Q: What operating conditions can this SFP dual row cage connector withstand?
A: Engineered with high-temperature LCP and durable phosphor bronze contacts, it operates reliably between -40C and +85C, making it ideal for harsh telecommunication and server room environments.

Q: Is the connector compliant with standard manufacturing and assembly lines?
A: Yes, it features RoHS compliance, standard tray packaging (90 pcs/box), and matte tin solder tails suited for automated surface-mount and press-fit assembly processes.
