SFP+ 2x1 Cage for SFP Cage Connector Assembly S2N3A23000BA4（Cross out TE 1-2007492-8）

Product Overview

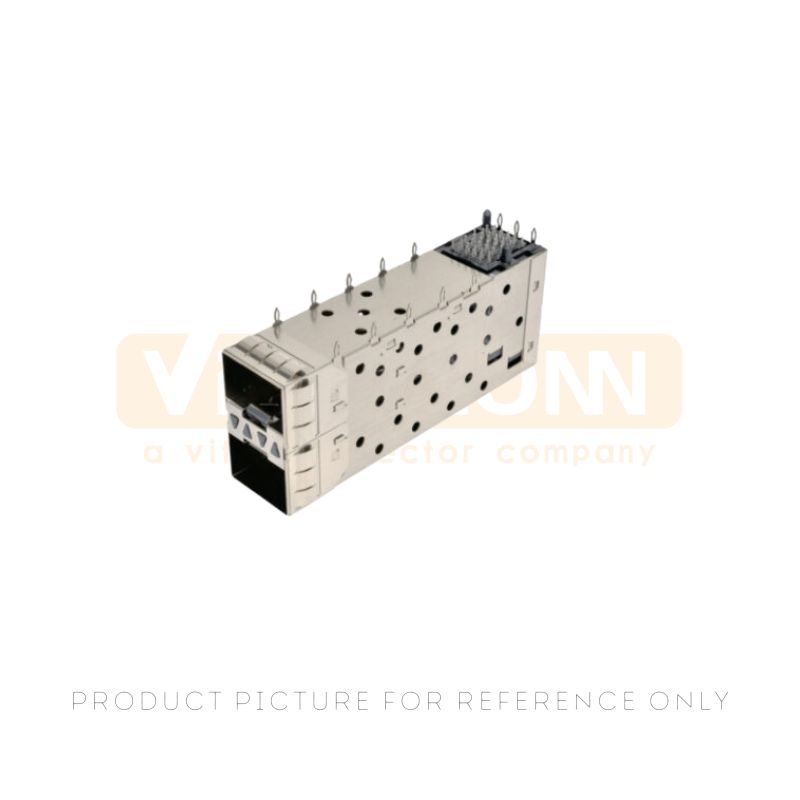

SFP+ 2X1 Cage with Connector provides a compact, stacked dual-port solution for high-density networking hardware. Designed with a nickel silver cage, clear polycarbonate light pipes, and high-temperature LCP connector housing, it delivers robust EMI protection, reliable press-fit PCB mounting, and low contact resistance across operating temperatures from -40°C to +85°C.

Product Specifications

Product Features

• • Stacked Dual-Port Design: SFP+ 2X1 Cage with Connector doubles port density while saving valuable host board space.
  • Nickel Silver Shielding: Provides superior EMI resistance and structural strength for high-speed transmission.
  • Integrated Light Pipes: Clear polycarbonate light pipes facilitate real-time visual port status indication.
  • Gold Contact Plating: 15u" gold mating contacts ensure exceptional signal conductivity and corrosion resistance.
  • Wide Thermal Range: Built to operate dependably under harsh temperature conditions from -40°C to +85°C.

Packing Details

If you need detailed information about our packaging specifications and requirements, please feel free to contact us directly. We will be happy to provide you with the details.

Applications

• High-Density Switches: Enterprise Top-of-Rack network switches and routers.
• Data Center Servers: Multi-port 10G network interface cards (NICs).
• Storage Systems: High-speed Storage Area Network (SAN) controllers.
• Telecommunications: Optical line terminals and cellular backhaul equipment.
• Network Security: High-bandwidth firewall appliances and data monitoring hardware.

Frequently Asked Questions (FAQ)

Q: What are the main material advantages of this stacked sfp+ 2x1 cage with connector?
A: This stacked sfp+ 2x1 cage with connector uses a durable nickel silver cage for EMI shielding, UL94 V-0 LCP plastic housing, and 15u" gold-plated phosphor bronze contacts for long-term conductivity.

Q: How does a nickel silver emi shielded sfp+ cage enhance system signal stability?
A: A nickel silver emi shielded sfp+ cage effectively contains high-frequency electromagnetic noise, prevents crosstalk between adjacent ports, and maintains ground continuity with the chassis bezel.

Q: What is the operating temperature rating for this dual port stacked cage connector?
A: This dual port stacked cage connector operates reliably across an extended industrial temperature range of -40°C to +85°C.
