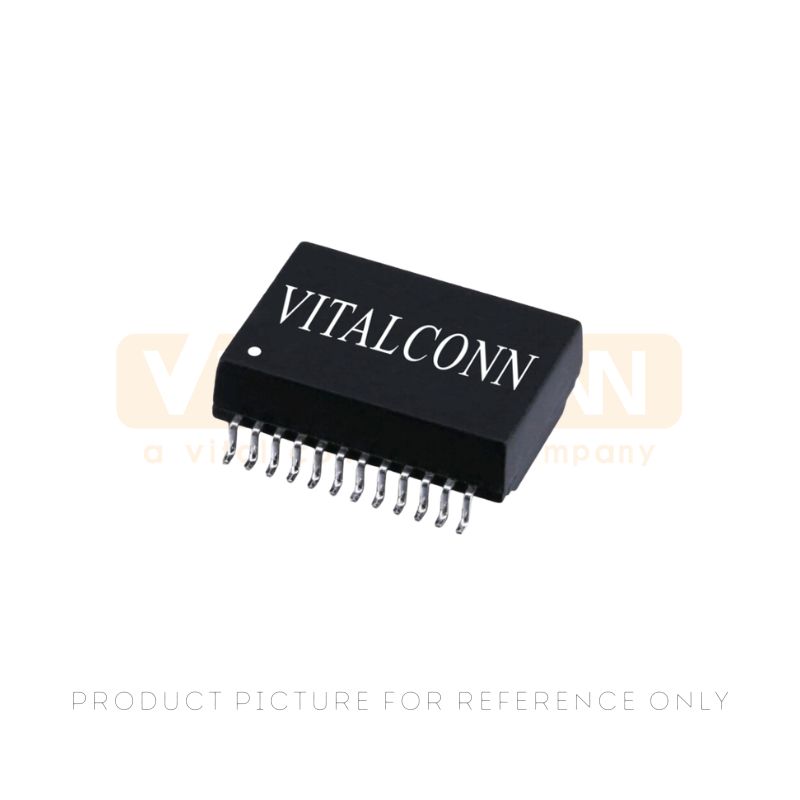

Networking Connectors LAN Transformer ModulesSMT 10/100 LAN Transformer Modules 24-Pin SMD 1500V Isolation Industrial Temperature TH24020S1
TH24020S1 is a 24-pin SMT 10/100 LAN transformer module with 1500 VAC isolation, -40C to +85C operating range, and 350 uH OCL. Engineered for Fast Ethernet switches, factory automation, and outdoor networking equipment requiring reliable magnetic performance and RoHS compliant construction.
Part Number :
TH24020S1Product Category :
LAN Magnetics
Product Overview
These Industrial LAN Transformer Modules support reliable 10/100 Base-T data transmission in demanding environments. With a 24-pin SMT footprint, 1CT:1CT turns ratio, 350 uH OCL, and -40C to +85C operating range, the TH24020S1 fits industrial switches, factory automation, outdoor controllers, and embedded networking equipment.
Product Specifications / Attributes
|
Ethernet Standard |
10/100 Base-T |
|
Turns Ratio |
1CT:1CT |
|
OCL (Inductance) |
350 uH Min @100kHz, 100mV with 8mA DC Bias |
|
Insertion Loss |
-1.15 dB Max (1-100 MHz) |
|
Return Loss |
-16 to -12 dB Min @100 ohm (1-80 MHz) |
|
Cross Talk |
-45 / -35 dB Min (0.3-60 / 60-100 MHz) |
|
Common Mode Rejection |
-40 / -30 / -25 dB Min (1-30 / 60 / 100 MHz) |
|
Hi-Pot Isolation |
1500 VAC |
|
Operating Temperature |
-40C to +85C |
|
Package Type |
24-pin SMD (15.1 x 7.5 x 6.0 mm) |
|
Solder Rating |
260C / 3-5 Sec peak |
|
RoHS Compliance |
Yes |
Features&Benefits
· cost-sensitive industrial networking, automation, and control applications requiring proven magnetic performance.
· Industrial Temperature Range: Operates from -40C to +85C for outdoor controllers, factory automation systems, transportation equipment, and harsh-environment installations.
· 1500 VAC Hi-Pot Isolation: High dielectric strength ensures electrical safety, noise immunity, and reliable common-mode rejection in demanding network equipment deployments.
· 24-Pin SMD Footprint: Compact surface-mount package simplifies automated PCB assembly, reduces board space, and supports high-volume manufacturing for cost-optimized designs.
· RoHS Compliant Construction: Lead-free materials and environmentally responsible manufacturing meet international reliability standards for global OEM markets.
Packing Details
If you need detailed information about our packaging specifications and requirements, please feel free to contact us directly. We will be happy to provide you with the details.
Applications
· Industrial Ethernet switches and factory automation controllers operating in harsh environments
· Outdoor surveillance systems, security monitoring equipment, and access control devices
· Smart meters, building automation gateways, and utility monitoring for smart grid deployments
· Embedded networking modules for industrial PCs and SCADA remote terminal units
· Transportation, railway communication, and outdoor telecom infrastructure equipment
Frequently Asked Questions (FAQ)
Q: What Ethernet standard does the TH24020S1 support?
A: The TH24020S1 supports 10/100 Base-T Fast Ethernet. As a member of the LAN Transformer Modules family, it delivers stable magnetic coupling, 350 uH OCL, and 1500 VAC isolation for industrial networking equipment and OEM designs.
Q: What is the operating temperature range of this transformer module?
A: This module operates from -40C to +85C, making it suitable for outdoor installations, factory automation, and transportation networking systems where extreme temperatures and environmental stress are common operational challenges.
Q: Is the TH24020S1 RoHS compliant for global markets?
A: Yes. The TH24020S1 is fully RoHS compliant with lead-free materials and meets international environmental standards. It is suitable for global OEM customers, industrial markets, and environmentally regulated deployment regions
