Networking Connectors LAN Transformer ModulesSMT Dual Port Gigabit LAN Transformer Modules IEEE 802.3 Compliant 1500V Isolation TG36010DE3

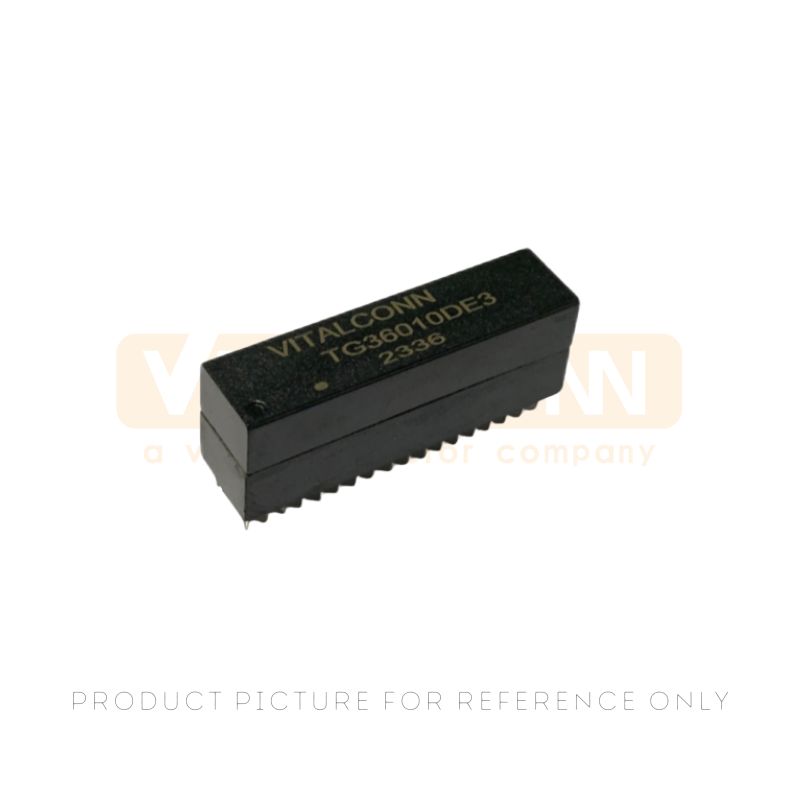

TG36010DE3 is a 36-pin SMT dual port Gigabit LAN transformer module compliant with IEEE 802.3 standard. It features 1500Vrms isolation, 350 uH OCL, 1:1 turns ratio, and supports 100/1000 BASE-T Ethernet for switches, routers, and network interface cards.
Part Number :
TG36010DE3Product Category :
LAN Magnetics
Product Overview
These Dual Port LAN Transformer Modules support simultaneous 100/1000 BASE-T data transmission across two independent channels. Built around LAN Transformer Modules architecture, this 36-pin SMD device delivers 350 uH OCL, 1:1 turns ratio, and full IEEE 802.3 compliance, fitting enterprise switches, routers, network interface cards, and telecom infrastructure.
Product Specifications / Attributes
|
Ethernet Standard |
100/1000 BASE-T Dual Port |
|
IEEE Compliance |
IEEE 802.3 |
|
Turns Ratio |
1:1 +/- 3% |
|
OCL (Inductance) |
350 uH Min @100kHz/0.1V with 8mA DC Bias |
|
Insertion Loss |
-1.0 dB Max (1-100 MHz) |
|
Return Loss |
-18 to -10 dB Min (1-100 MHz) |
|
Cross Talk |
-30 dB Min (1-100 MHz) |
|
Hi-Pot Isolation |
1500 Vrms |
|
Operating Temperature |
0C to +70C (Storage -25C to +125C) |
|
Package Type |
36-pin SMD (32.7 x 14.3 x 10.0 mm) |
|
DC Resistance (DCR) |
1.2 ohm Max |
|
RoHS Compliance |
Yes |
Features&Benefits
· Dual Port 100/1000 BASE-T Design: Two independent magnetic channels in one compact SMD package support simultaneous Gigabit Ethernet links for switches, routers, and multi-port network interface cards.
· IEEE 802.3 Standard Compliant: Meets the Gigabit Ethernet specification for reliable interoperability across enterprise networking equipment, telecom infrastructure, and OEM customer products.
· 1500Vrms Hi-Pot Isolation: Robust high-potential isolation between windings ensures electrical safety, signal integrity, and excellent common-mode rejection in demanding network environments.
· 36-Pin SMT Footprint: Compact surface-mount package simplifies automated PCB assembly, reduces required board space, and supports high-density port-count designs for modern switching platforms.
· RoHS Compliant Construction: Lead-free materials and environmentally responsible manufacturing processes meet international reliability standards for global OEM markets.
Packing Details
If you need detailed information about our packaging specifications and requirements, please feel free to contact us directly. We will be happy to provide you with the details.
Applications
· Enterprise Gigabit Ethernet switches and managed routers requiring dual port magnetic isolation
· Network interface cards and multi-port server adapters for data center connectivity
· Telecom infrastructure equipment and broadband access devices for service provider networks
· Industrial networking controllers and embedded computing platforms with dual Ethernet ports
· Power over Ethernet enabled devices, IP cameras, and wireless access point base stations
Frequently Asked Questions (FAQ)
Q: What Ethernet standards does the TG36010DE3 support?
A: The TG36010DE3 supports 100/1000 BASE-T Gigabit Ethernet across two independent channels. Compliant with IEEE 802.3, it fits enterprise switches, routers, and dual port network interface cards requiring reliable magnetic performance.
Q: How many ports does the TG36010DE3 integrate?
A: This module integrates two independent Gigabit Ethernet ports in a single 36-pin SMD package, allowing designers to reduce board space while delivering dual channel magnetic isolation for switches and multi-port networking equipment.
Q: What is the isolation voltage of this dual port transformer?
A: The TG36010DE3 provides 1500Vrms high-potential isolation between primary and secondary windings. It ensures electrical safety, signal integrity, and stable common-mode rejection across both Gigabit Ethernet channels in demanding networking equipment.
