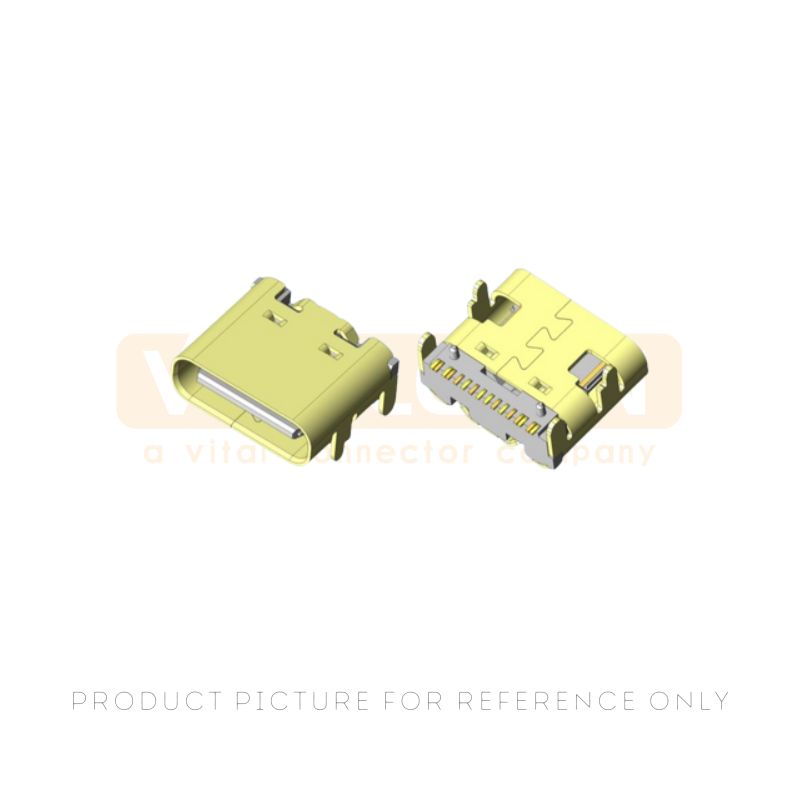

Cross-out ReferenceSMT USB Type-C Connector 16-Pin Top Mount 10000 Cycles Premium for Mobile Devices UC22-6E1H1A103-2HR-02(Cross out MOLEX 2171790002)
This USB Type-C Connector is a 16-pin top mount SMT receptacle designed for compact mobile and consumer electronics. It supports USB 3.2 signaling, 5V/5A VBUS power delivery, and 10000 mating cycles with gold-plated copper alloy contacts.
Part Number :
UC22-6E1H1A103-2HR-02Product Category :
USB Type-C Connector
Product Overview
This SMT USB Type-C Connector delivers reliable USB 3.2 signal and power transmission in a compact 16-pin top mount package. Featuring UL94 V-0 high-temperature housing, stainless steel shell, gold-plated copper alloy terminals, and 10000 mating cycles, it is engineered for smartphones, tablets, charging cables, and consumer electronic devices.
Product Specifications / Attributes
|
Attribute |
Value |
|
Product Model |
UC22-6E1H1A103-2HR-02 |
|
Product Type |
USB Type-C Receptacle, Top Mount |
|
Number of Pins |
16 Pins |
|
Mounting Type |
SMT Top Mount |
|
Pin Pitch |
0.50mm |
|
Body Length |
6.5mm |
|
Body Width |
8.94mm |
|
Housing Material |
High-Temperature Resistant Plastic, UL94 V-0 |
|
Terminal Material |
Copper Alloy with Gold Plating |
|
Shell Material |
Stainless Steel |
|
Rated Voltage |
5V DC/AC (RMS Max) |
|
Rated Current |
5A (VBUS/GND), 1.25A (CC), 0.25A (Others) |
Features&Benefits
· Compact 16-Pin Top Mount Design: Low-profile and compact, saving PCB space for slim devices and supporting high-volume SMT assembly.
· USB 3.2 High-Speed Signaling: Delivers fast charging and high-speed data transfer while maintaining full USB 2.0 backward compatibility.
· 10000 Mating Cycle Durability: Built for frequent connections, maintaining stable mating forces and reliable contact pressure over long-term use.
· Gold-Plated Copper Alloy Terminals: Features low contact resistance and corrosion protection, supporting high-current fast charging up to 5A.
· RoHS and UL94 V-0 Compliant: Withstands 260°C reflow soldering with flame-retardant materials, meeting global safety and environmental standards.
Packing Details
If you need detailed information about our packaging specifications and requirements, please feel free to contact us directly. We will be happy to provide you with the details.
Applications
· Smartphones & Tablets: Ideal for slim mobile devices, providing a compact Type-C interface that supports USB 3.2 high-speed data transmission and reliable fast power delivery.
· Power Banks & Chargers: Enables high-current VBUS power delivery, supporting fast-charge protocols for mobile devices and laptops with a stable 5V/5A output.
· Wearables & Audio: Offers a low-profile Type-C interface for earphone charging cases and fitness trackers, ensuring reliable charging in space-constrained designs.
· POS & Handheld Devices: Built for frequent mating cycles, providing durable Type-C connectivity for fast charging and seamless data synchronization in commercial devices.
· Hubs & Docking Stations: Designed for Type-C hubs and adapters, supporting USB 3.2 high-speed data transmission for multi-port expansion and productivity workstations.
Frequently Asked Questions (FAQ)
Q: What is the pin count and mounting style of the UC22-6E1H1A103-2HR-02?
A: This is a 16-pin top mount SMT receptacle. The compact 6.5mm body length and 8.94mm width make it suitable for slim consumer electronic enclosures where PCB space is limited and a low-profile top mount configuration is required for portable product designs.
Q: What USB standard does this receptacle support?
A: It supports USB 3.2 signaling and 5V/5A power delivery. With 10000 mating cycles and gold-plated contacts, it is well-suited for smartphones, tablets, charging cables, and portable consumer devices requiring reliable high-speed data and power transmission in compact form factor designs.
Q: What are the operating temperature and reflow conditions?
A: The connector operates from -25 degrees C to +85 degrees C. It is rated for IR reflow soldering with a peak board temperature of 260 degrees C maintained for 10 seconds, compatible with standard SMT production processes used in consumer electronics mass manufacturing environments.
