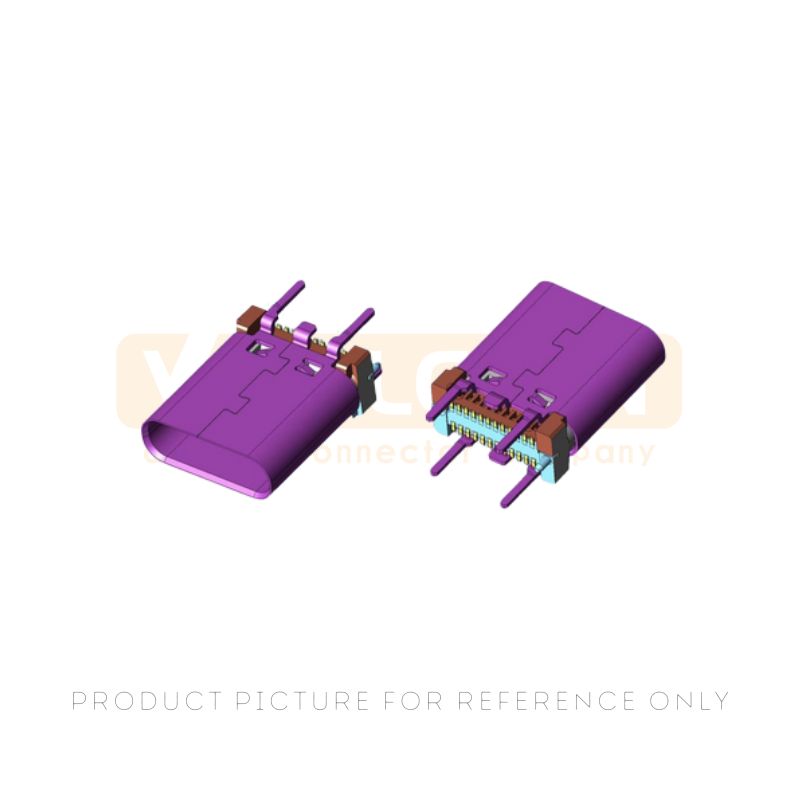

Cross-out ReferenceThrough-Hole USB Type-C Connector – 24-Pin Vertical Mount UC31-1A1H1R003-0HR-08 (Cross out MOLEX 2188470001)
This USB Type-C Connector is a 24-pin through-hole vertical receptacle engineered for industrial and embedded applications. It features stainless steel shell, gold-plated SUS301 contacts, and 10000 mating cycles for USB 3.2 signal and power transmission
Part Number :
UC31-1A1H1R003-0HR-08Product Category :
USB Type-C Connector
Product Overview
This Through-Hole USB Type-C Connector provides ruggedized vertical-mount USB 3.2 signal and power connectivity in industrial and embedded environments. Featuring LCP UL94 V-0 housing, SUS301 gold-plated contacts, stainless steel SUS304 latch and shell, and 11.1mm body height, it serves industrial controllers, embedded systems, automation terminals, and ruggedized equipment requiring reliable high-speed data and power transmission across demanding factory and field deployment conditions over extended service life cycles.
Product Specifications / Attributes
|
Attribute |
Value |
|
Product Model |
UC31-1A1H1R003-0HR-08 |
|
Product Type |
USB Type-C Receptacle, Through-Hole Vertical Mount |
|
Number of Pins |
24 Pins |
|
Mounting Type |
Through-Hole Vertical |
|
Pin Pitch |
0.50mm |
|
Body Height |
11.1mm |
|
Body Width |
8.66mm |
|
Housing Material |
LCP, UL94 V-0, Black |
|
Contact Material |
SUS301 with Gold Plating |
|
Shell Material |
Stainless Steel SUS304 |
|
Rated Voltage |
5V DC |
|
Mating Cycles |
10000 Cycles |
Features&Benefits
· Ruggedized 24-Pin Vertical Design: Provides robust vertical mounting and high mechanical stability for industrial controllers against vibration, shock, and frequent handling.
· USB 3.2 High-Speed Performance: Supports high-bandwidth data, power delivery, and DisplayPort alternate mode, while maintaining full USB 2.0 backward compatibility.
· SUS301 Gold-Plated Contacts: Ensures low contact resistance, excellent solderability, and long-term reliability under thermal cycling and mechanical stress.
· SUS304 Stainless Steel Latch & Shell: Delivers superior mechanical strength, EMI shielding, and corrosion resistance to maintain signal integrity in harsh environments.
· Industrial -25°C to +85°C Range: Features flame-retardant LCP housing, withstanding 260°C reflow soldering to ensure reliable operation in demanding industrial deployments.
Packing Details
If you need detailed information about our packaging specifications and requirements, please feel free to contact us directly. We will be happy to provide you with the details.
Applications
· Industrial Controllers & PLCs: Ideal for factory automation, providing a rugged vertical Type-C port for programming, diagnostics, and data transfer in control systems.
· Embedded Computing Systems: Ensures reliable 24-pin vertical connectivity for single-board computers, IoT gateways, and edge computing devices in industrial networks.
· Medical Monitoring Equipment: Delivers stable data acquisition and charging for clinical diagnostic instruments, meeting high standards of safety and operational reliability.
· Automotive Infotainment Systems: Supports high-speed data transfer and diagnostics in vehicle dashboards, telematics units, and driver assistance system modules.
· Test & Measurement Instruments: Provides durable vertical ports for HMI panels and field calibration tools, ensuring reliable operator access in harsh test environments.
Frequently Asked Questions (FAQ)
Q: What is the pin count and mounting style of the UC31-1A1H1R003-0HR-08?
A: This is a 24-pin through-hole vertical receptacle with 11.1mm body height. The vertical through-hole design with stainless steel shell is ideal for industrial and embedded applications where mechanical rigidity and reliable PCB mounting are required during field installation and routine maintenance operations.
Q: What USB standard does this receptacle support?
A: It supports USB 3.2 signaling and 5V power delivery. The 24-pin full-feature configuration supports high-speed data, fast charging, and alternate mode applications in industrial controllers, embedded systems, and ruggedized equipment requiring stable high-bandwidth connectivity across diverse operating conditions.
Q: What materials ensure durability in industrial environments?
A: The connector uses LCP UL94 V-0 housing, SUS301 gold-plated contacts, and SUS304 stainless steel latch and shell. These materials provide corrosion resistance, mechanical strength, and EMI shielding for reliable performance across -25 to +85 degrees C in demanding industrial deployment conditions.
