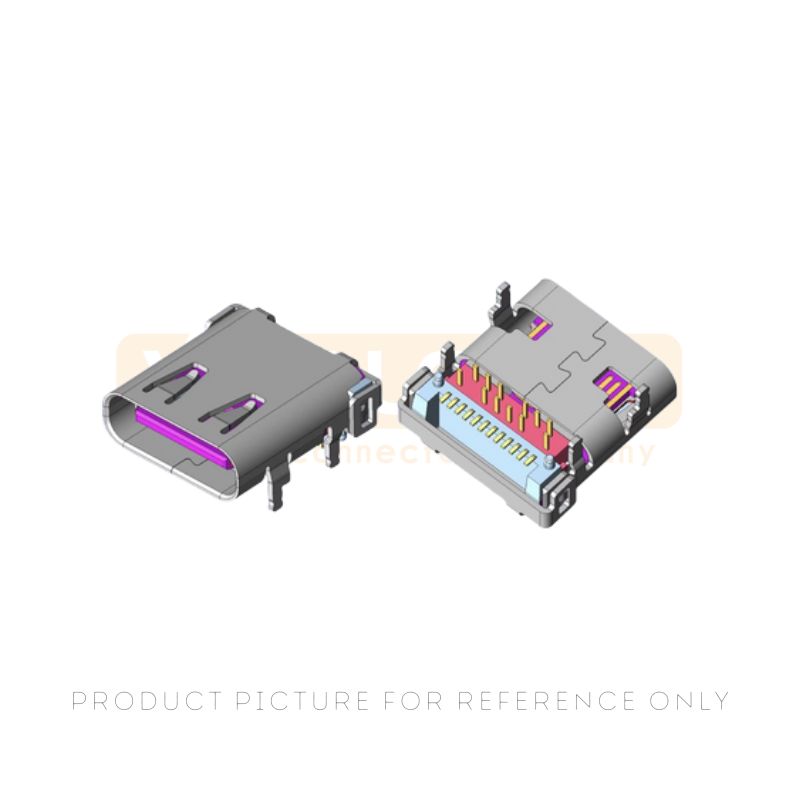

Cross-out ReferenceUSB Type-C Connector 24Pin DIP SMT UC32-2E1H1A103-0HR-05(Cross out MOLEX 2171830001)
The UC32-2E1H1A103-0HR-05 is a high-performance USB Type-C Connector featuring a hybrid DIP+SMT mounting configuration for enhanced mechanical stability and electrical reliability.
Designed for demanding industrial and consumer electronics applications, this 24-pin receptacle delivers USB 3.2 Gen2 data rates up to 10Gbps with support for power delivery up to 100W, making it an ideal USB Type-C Connector for next-generation connectivity solutions.
Part Number :
UC32-2E1H1A103-0HR-05Product Category :
USB Type-C Connector
Product Overview
VITALCONN presents the UC32-2E1H1A103-0HR-05, a robust USB Type-C DIP SMT USB Type-C Connector engineered for applications requiring both through-hole anchoring and surface-mount signal integrity.
The hybrid DIP+SMT design combines the mechanical strength of through-hole mounting with the high-density routing advantages of SMT, ensuring reliable performance in vibration-prone environments. This connector supports USB 3.2 Gen2 SuperSpeed 10Gbps data transfer and USB Power Delivery up to 100W (20V/5A), providing a future-proof interface for modern electronic designs.
Product Specifications / Attributes
|
Connector Type |
USB Type-C Receptacle (Female) |
|
Mounting Style |
Hybrid DIP + SMT |
|
Number of Positions |
24 Pin |
|
USB Standard |
USB 3.2 Gen2 (10Gbps) |
|
Power Delivery |
Up to 100W (20V/5A) |
|
Orientation |
Vertical / Top Mount |
|
Contact Material |
Copper Alloy, Gold Plated |
|
Housing Material |
LCP, UL94-V0 |
|
Operating Temperature |
-40C to +85C |
|
Mating Cycles |
10,000 Cycles Minimum |
|
FCN |
F9 |
|
Part Number |
UC32-2E1H1A103-0HR-05 |
Features&Benefits
Packing Details
If you need detailed information about our packaging specifications and requirements, please feel free to contact us directly. We will be happy to provide you with the details.
