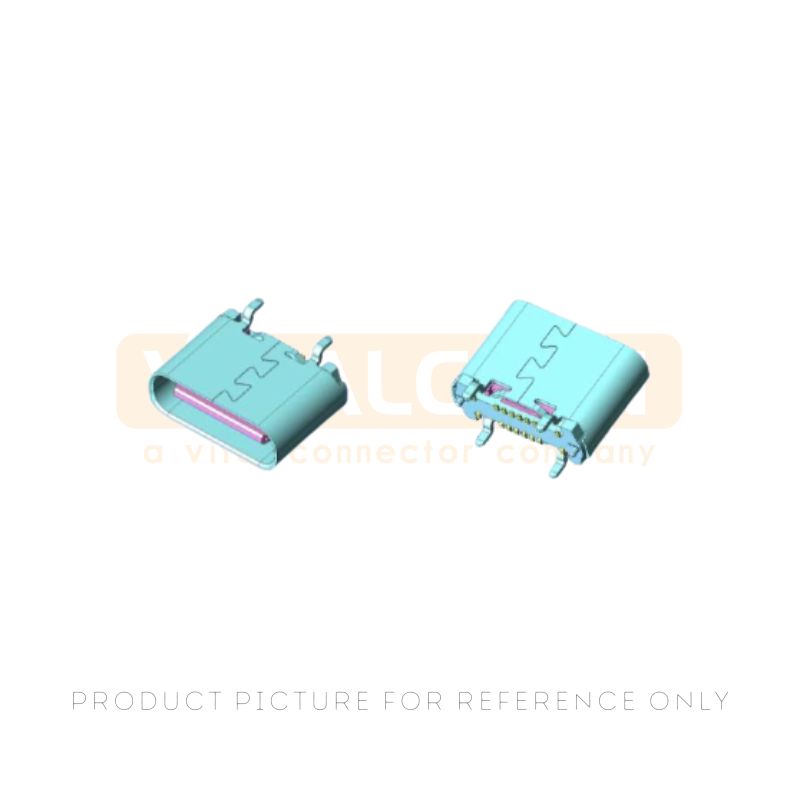

Cross-out ReferenceUSB Type-C Connector High Performance Vertical SMT Receptacle UC22-1A1H1A103-0HR-52(Cross out MOLEX 2171820003)
Source the high-performance USB Type-C Connector vertical SMT female receptacle UC22-1A1H1A103-0HR-52 featuring 16-pin design, 5A power rating, and 10000 durability cycles for compact electronic devices.
Part Number :
UC22-1A1H1A103-0HR-52Product Category :
USB Type-C Connector
Product Overview
The vertical USB-C connector UC22-1A1H1A103-0HR-52 is a 16-pin surface-mount female receptacle with a 6.4mm length profile. Engineered with PA9T UL94 V-0 housing and copper alloy contacts, it supports 5A current for VBUS/GND pins, delivering superior power and data transfer reliability for compact modern devices.
Product Specifications / Attributes
| Specification | Parameter Details |
| Product Type |
USB Type-C female connector |
| Pin Count |
16 Pins (A1-A12, B1-B12 layout) |
| Mounting Type |
Vertical Surface Mount (SMT) |
| Housing Material |
PA9T, UL94 V-0 Thermoplastic |
| Contact Material |
Copper Alloy C18150 |
| Shell Material |
SUS304 Stainless Steel |
| Contact Plating |
Au 3u" on functional area over Ni 50u" min |
| Current Rating |
5A max for VBUS/GND total; 1.25A for CC |
| Voltage Rating |
5V DC/AC (RMS max) |
| Durability |
10,000 Mating Cycles |
| Operating Temp |
-25°C to +85°C |
| Reflow Peak |
260°C for 10 seconds max |
Features&Benefits
High-Current Power: Supports 5A rating for VBUS and GND pins to deliver fast power delivery.
Rugged Durability: Rated for 10,000 insertion and removal cycles with stainless steel shell.
Vertical SMT Design: Optimizes PCB layout space through a vertical surface mount orientation.
Gold Contact Plating: Features 3u" gold plating for reliable conductivity and signal integrity.
High Temperature Tolerance: PA9T housing withstands 260°C peak IR reflow processing.
This premium 16 pin USB-C receptacle ensures stable performance across demanding electronic environments.
Packing Details
If you need detailed information about our packaging specifications and requirements, please feel free to contact us directly. We will be happy to provide you with the details.
Applications
Compact Smart Home devices and controllers.
Portable audio equipment and wearable technology.
Industrial control boards and automated instruments.
Power management units and charging docks.
Frequently Asked Questions (FAQ)
Q: What are the power ratings for this USB Type-C Connector?
A: The 16 pin USB-C receptacle handles up to 5A total current across its VBUS and GND pins. The CC pin supports 1.25A, while all other contacts carry up to 0.25A at a rated voltage of 5V DC/AC.
Q: What reflow soldering profile should be used for assembly?
A: Thanks to its PA9T UL94 V-0 housing material , this vertical USB-C connector supports IR reflow soldering processes with a peak temperature of 260°C maintained for up to 10 seconds on the board.
Q: What is the packaging specification for bulk orders?
A: Connectors are packed in Tape & Reel format containing 450 pieces per reel. A master outer carton holds 10 reels (4,500 pieces total) with standard box dimensions of 340 × 340 × 320 mm.
This high-precision Nano SIM interface is a premium solution within our card sockets connectors lineup, specifically designed to offer reliable cellular connectivity for modern, ultra-slim electronic devices with a 1.50mm profile.
Read More
This precision-engineered Micro SD interface is a high-performance solution within our card sockets connectors series, featuring a ultra-low 1.28mm profile and a reliable push-push mechanism for secure memory card management in compact electronic devices.
Read More
This high-precision Micro SD memory interface is a critical component of our card sockets connectors series, specifically engineered to provide a reliable and space-efficient storage solution for modern mobile electronics.
Read More
This high-performance Micro SD interface is a specialized solution within our card sockets connectors range, featuring a short-body design and an integrated detection switch to ensure reliable storage performance in compact electronic applications.
Read More
This high-precision Micro SD memory interface is a premier solution in our card sockets connectors series, featuring a streamlined 1.95mm profile and a reliable push-push mechanism for secure card retention and easy ejection.
Read More
This premium Micro SIM interface is a sophisticated component within our card sockets connectors lineup, engineered with a reliable push-push mechanism to facilitate easy card insertion and ejection in compact electronic hardware.
Read More
