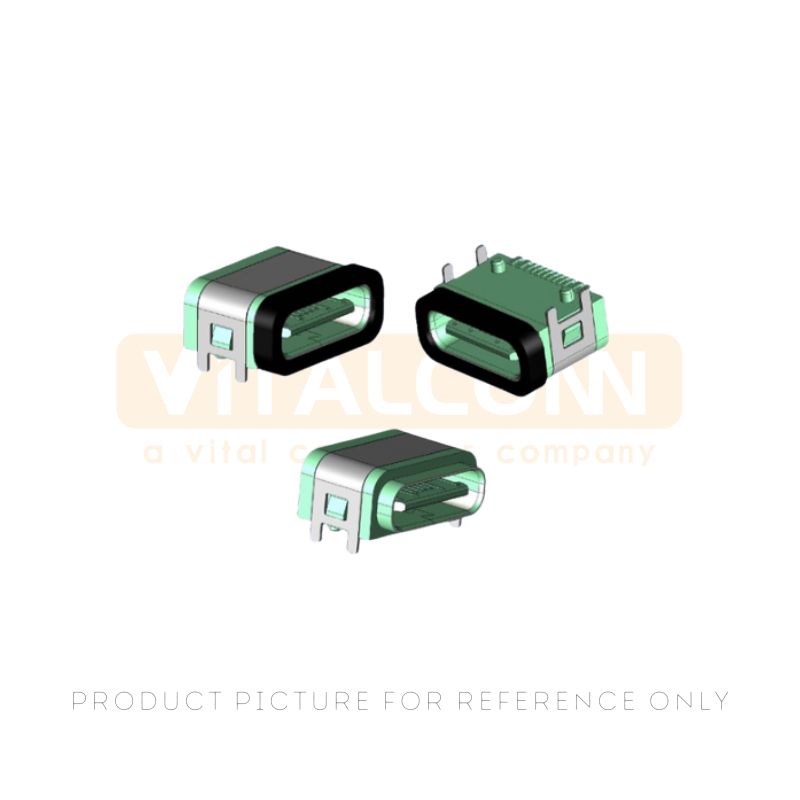

Cross-out ReferenceUSB Type-C Connector High Performance Waterproof SMT Receptacle UC22-2A1H1E001-0HR-27(Cross out Amphenol 12402255Q112A)
Shop our reliable IPX5 waterproof USB Type-C Connector engineered for top-mount SMT assembly, 3A current rating, and 10000 durability cycles.
Part Number :
UC22-2A1H1E001-0HR-27Product Category :
USB Type-C Connector
Product Overview
Our top-mount Waterproof USB-C Connector delivers excellent power transfer and durability. Built with high-temperature thermoplastic housing and stainless steel shielding, it ensures reliable signal integrity in harsh conditions. Perfect for compact consumer electronics and industrial devices needing tight sealing protection.
Product Specifications / Attributes
| Parameter | Specification |
| Product Type |
Waterproof USB Type-C Connector |
| Part Number |
UC22-2A1H1E001-0HR-27 |
| Pin Configuration |
6 Pins (A5, A9, A12, B5, B9, B12) |
| Mounting Type |
Top-Mount SMT |
| Waterproof Rating |
IPX5 |
| Current Rating |
3.0A (VBUS/GND), 1.25A (CC), 0.25A (Others) |
| Voltage Rating |
5V DC/AC RMS Max |
| Contact Resistance |
40mΩ/pin Max |
| Durability |
10,000 Cycles |
| Operating Temp |
-25°C to +85°C |
| IR Reflow Temp |
260°C Peak for 10 Seconds |
| Housing Material |
High Temperature Plastic, UL94 V-0 (LCP) |
Features&Benefits
IPX5 Sealing: Features a red UV glue outer gasket for liquid resistance.
3A Power Rating: Supports fast power delivery on VBUS and GND lines.
High Durability: Built for 10,000 insertion and removal cycles.
6-Pin SMT Layout: Compact top-mount design optimizes PCB board space.
Robust Shielding: Premium SMT Type-C Connector with stainless steel outer shell.
Packing Details
If you need detailed information about our packaging specifications and requirements, please feel free to contact us directly. We will be happy to provide you with the details.
Applications
Consumer Electronics: Wearables, portable audio devices, and smart handheld gadgets.
Industrial Systems: Rugged field instruments, portable sensors, and outdoor monitors.
Medical Devices: Portable diagnostic tools and handheld patient care equipment.
Automotive Accessories: In-vehicle charging ports and compact dashboard modules.
Smart Home Devices: Outdoor security hardware and smart door lock modules.
Frequently Asked Questions (FAQ)
Q: What is the sealing rating of this 6-pin USB Type-C Connector?
A: It features an IPX5 waterproof rating with a specialized red UV glue gasket, making it ideal for protecting devices against water splashes and environmental moisture.
Q: What are the electrical power ratings for this Waterproof USB-C Connector?
A: It supports up to 3.0A total for VBUS and GND pins, 1.25A for CC pins, and 0.25A for all other contacts, operating at 5V DC/AC RMS max.
Q: What reflow soldering conditions does this SMT Type-C Connector withstand?
A: The connector housing is made of UL94 V-0 high-temperature plastic (LCP), capable of withstanding peak IR reflow temperatures of 260°C for up to 10 seconds.
