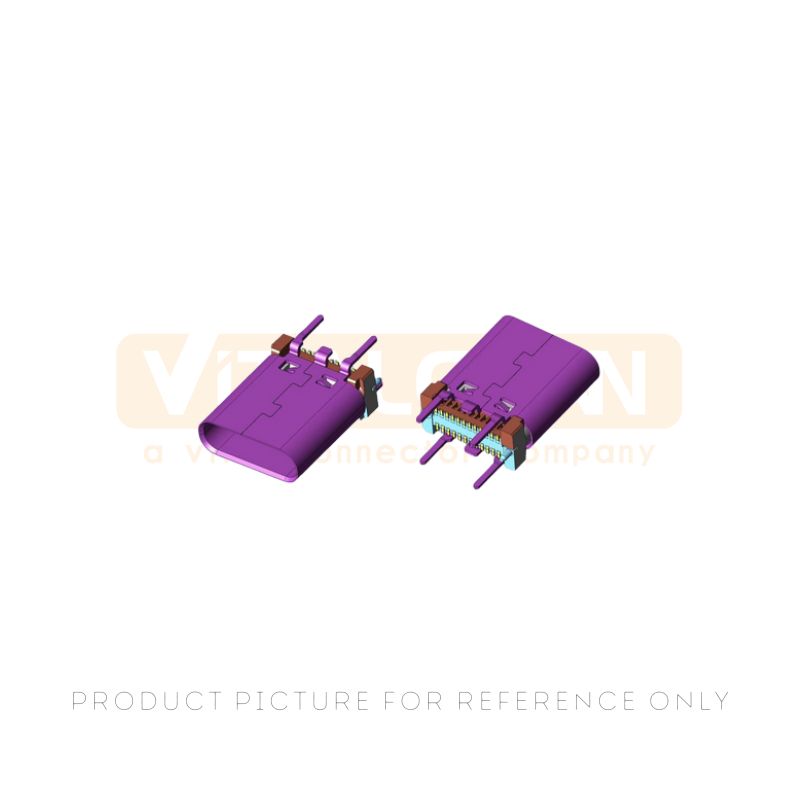

Cross-out ReferenceUSB Type-C Connector Vertical Surface Mount 24 Pin UC31-2A1H1K003-1HR-05(Cross out Amphenol 12402320E212A)
This high-performance USB Type-C Connector delivers reliable vertical SMT board mounting, supporting up to 3.0A current rating and exceptional durability for modern electronic applications.
Part Number :
UC31-2A1H1K003-1HR-05Product Category :
USB Type-C Connector
Product Overview
The UC31-2A1H1K003-1HR-05 vertical USB Type-C Connector features a compact 24-pin dual-row layout, LCP housing, and copper alloy contacts. Designed for vertical surface-mount assembly without shell feet, it ensures stable power and high-speed data transmission across various compact electronic devices.
Product Specifications / Attributes
| Specification | Value |
| Product Type |
Vertical USB Type-C Connector |
| Part Number |
UC31-2A1H1K003-1HR-05 |
| Pin Count |
24 Pins |
| Current Rating |
3.0A |
| Voltage Rating |
5.0V AC |
| Housing Material |
LCP UL94 V-0 (Black) |
| Contact Material |
Copper Alloy (C7025) |
| Front Shell Material |
Stainless Steel (SUS304) |
| Mating Durability |
10,000 Cycles |
| Operating Temperature |
-25°C to +85°C |
| IR Reflow Peak |
260°C for 10 seconds |
| Mounting Type |
Vertical SMT without shell feet |
Features&Benefits
Vertical Orientation: Vertical USB Type-C Connector design saves valuable board space.
High Durability: Built to withstand 10000 mating cycles reliably.
Robust Materials: LCP housing and SUS304 shell offer excellent heat resistance.
Efficient Power: Supports 3.0A current rating for safe power delivery.
Reflow Ready: Capable of withstand 260°C peak IR reflow temperature.
Packing Details
If you need detailed information about our packaging specifications and requirements, please feel free to contact us directly. We will be happy to provide you with the details.
Applications
Consumer Electronics: Smartphones, tablets, and mobile devices.
Computing Hardware: Laptops, mini PCs, and peripheral docks.
Smart Home Devices: IoT hubs, smart speakers, and controllers.
Industrial Equipment: Portable instruments and embedded systems.
Charging Modules: Power banks and custom charging docks.
Frequently Asked Questions (FAQ)
Q: What is the current rating for this vertical USB Type-C Connector?
A: This connector supports a standard current rating of 3.0A and a voltage rating of 5.0V, making it suitable for fast charging and reliable power delivery in compact electronic assemblies.
Q: What soldering process is recommended for this 24 pin USB Type-C Connector?
A: The connector is designed for surface-mount technology (SMT) and can withstand IR reflow soldering with a peak temperature of 260°C maintained for up to 10 seconds.
Q: How durable is this high speed USB Type-C Connector?
A: It features a high durability specification rated for up to 10,000 mating cycles, equipped with SUS304 stainless steel shell components for superior structural integrity.
