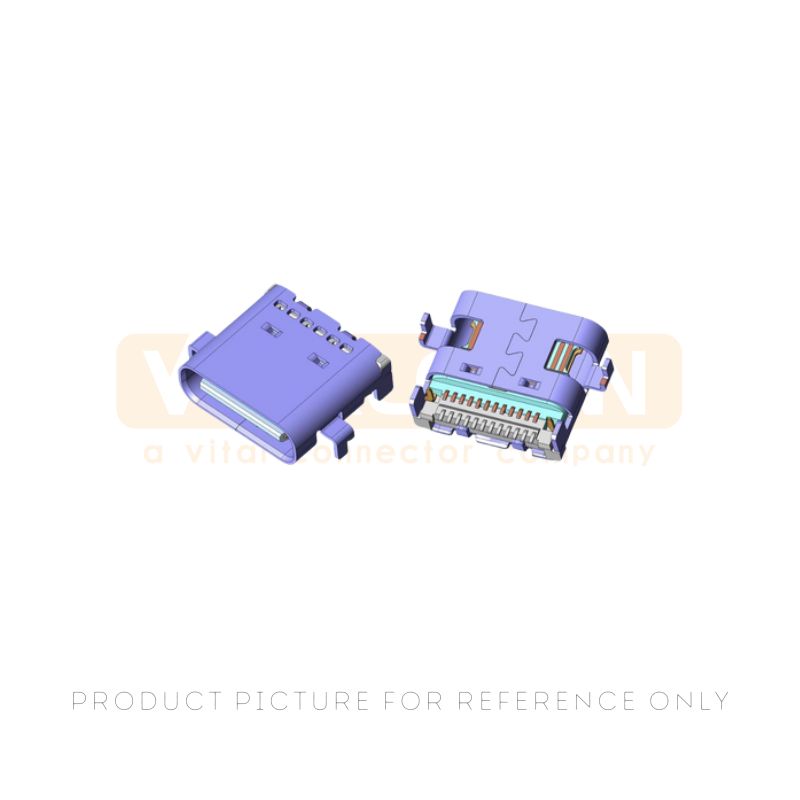

Cross-out ReferenceUSB Type-C Connector High Speed SMT Mid Mount UC32-4E1H1A103-0HR-08(Cross out MOLEX 2171841001)
Find the reliable USB Type-C Connector for compact electronics. Featuring 24Pin SMT mid-mount design, 5.0A current rating, and 10,000 mating cycles durability.
Part Number :
UC32-4E1H1A103-0HR-08Product Category :
USB Type-C Connector
Product Overview
Engineered for superior performance, our SMT USB Type-C Connector features a 24-pin mid-mount structure to save PCB vertical space. Built with high-temperature plastic, copper alloy contacts, and stainless-steel shielding, it delivers exceptional 5.0A power capacity and extreme mechanical durability across demanding applications.
Product Specifications / Attributes
| Specification | Value / Detail |
| Product Type | Mid-Mount USB Type-C Connector |
| Part Number | UC32-4E1H1A103-0HR-08 |
| Pin Count / Type | 24 Pins, SMT Type |
| Mounting Profile | Mid-Mount 0.8mm |
| Current / Voltage Rating | 5.0A / 5.0V |
| Housing Material | High Temp Plastic (UL94 V-0) |
| Contact Material | Copper Alloy (Au Flash Plated) |
| Shield / Shell | Stainless Steel (Ni Plated) |
| Durability | 10,000 Mating Cycles |
| Operating Temperature | -25°C to +85°C |
| IR Reflow Peak | 260°C for 10 seconds |
| Compliance | RoHS Compliant |
Features&Benefits
Compact Design: Mid-mount 0.8mm profile saves critical PCB board height.
High Power: Supports up to 5.0A current rating for fast charging.
Rugged Build: Tested for over 10,000 insertion and removal cycles.
Robust Shielding: Stainless steel front shell and EMI plate ensure protection.
Reliable Contact: Gold-plated copper alloy pins deliver optimum signal integrity.
Packing Details
If you need detailed information about our packaging specifications and requirements, please feel free to contact us directly. We will be happy to provide you with the details.
Applications
Frequently Asked Questions (FAQ)
Q: What are the primary electrical ratings for this USB Type-C Connector?
A: It supports a current rating of 5.0A and a voltage rating of 5.0V AC/DC, making it suitable for both high-speed data transfer and fast charging applications.
Q: What soldering process is recommended for this SMT USB Type-C Connector?
A: It is designed for standard IR reflow processes, capable of enduring a peak board temperature of 260°C for up to 10 seconds.
Q: How is the Mid-Mount USB Type-C Connector packaged for automated assembly?
A: Products are packaged in carrier tape and reels containing 900 pieces per reel, vacuum-sealed with desiccant for standard SMT pick-and-place lines.
