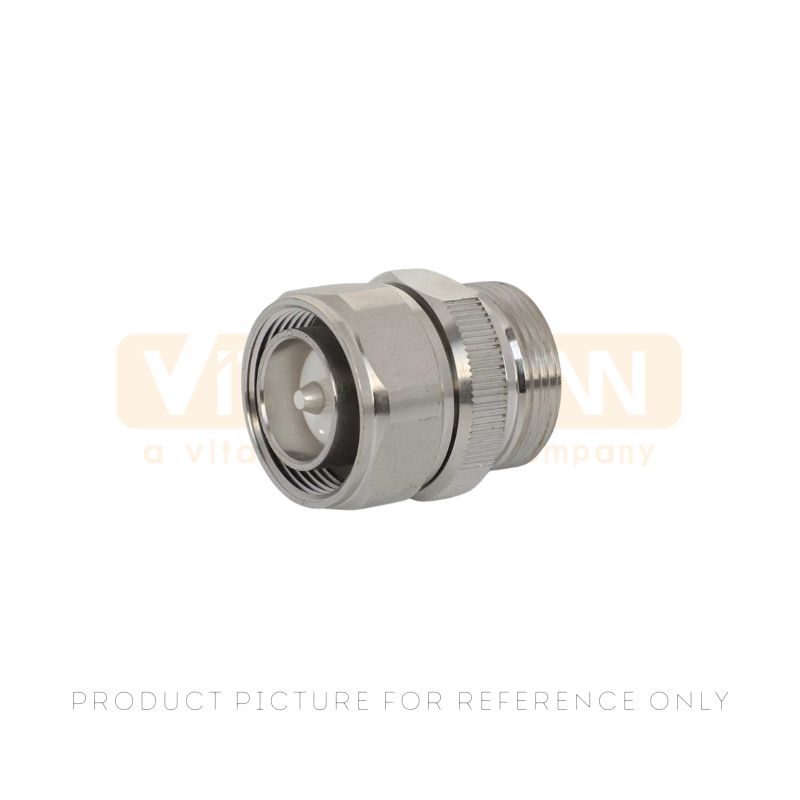

7/16 DIN Male to DIN Female High Power Precision Test RF Adapter DIN(M)-DIN(F)

7/16 DIN Male to DIN Female High Power Precision Test RF Adapter DIN(M)-DIN(F)

This professional-grade DIN Male to DIN Female Test RF Adapter is meticulously engineered to provide a seamless and reliable signal transition between 7/16 DIN connector standards, ensuring superior electrical stability for high-power measurement applications.

  • Part Number :

    DIN(M)-DIN(F)

  • Product Category :

    Test RF Adapter
Inquire Now

Product Overview

The DIN(M)-DIN(F) is a premium 50 Ohm Precision Test RF Adapter designed for rigorous telecommunications infrastructure and laboratory verification. Featuring a precision-machined 40mm body, it offers a stable and low-loss interface for hardware configurations where mechanical robustness and high-power handling are critical.



Product Specifications / Attributes

  • Characteristic Impedance: 50Ω.
  • Frequency Range: DC to 6GHz.

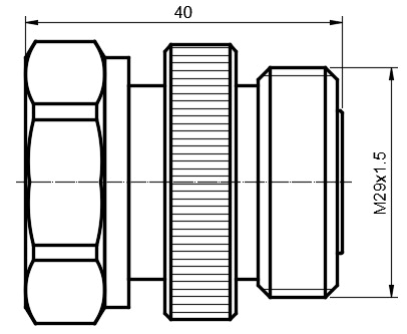

  • Interface A (DIN Male): Standard M29x1.5 threading.
  • Interface B (DIN Female): Standard M29 compatible interface.
  • Total Length: 40mm.
  • This DC to 6GHz Test RF Adapter is manufactured to strict industrial tolerances to ensure repeatable performance across its entire operational bandwidth.



Features&Benefits

  • High Power Handling: Built as a high-durability M29 to M29 Test RF Adapter, specifically designed to manage the signal integrity requirements of high-power RF environments.
  • Rugged Construction: Utilizes precision-machined threads and premium metallic components to maintain electrical integrity through repeated mating cycles.
  • Signal Stability: Optimized for minimal signal reflection and low insertion loss, making it ideal for calibration and verification tasks.
  • Industry Standard: Features the standard 7/16 DIN interface for full compatibility with global wide-area network hardware.



Packing Details

If you need detailed information about our packaging specifications and requirements, please feel free to contact us directly. We will be happy to provide you with the details.



Applications

  • Telecommunications infrastructure (4G/5G base stations) and signal routing.
  • RF and microwave laboratory testing and high-power measurement.
  • Automated Test Equipment (ATE) system integration.
  • Wireless network installation, instrument calibration, and field verification.



Frequently Asked Questions (FAQ)

  • Q: What is the frequency range supported by this Test RF Adapter?
  • A: This model is designed for high-performance signal transmission across a frequency range from DC up to 6GHz.
  • Q: What is the total length of the DIN(M)-DIN(F) model?
  • A: The adapter features a precision-machined body with a total axial length of 40mm.
  • Q: Is this product suitable for high-power telecommunications applications?
  • A: Yes, as a dedicated Test RF Adapter with a 7/16 DIN interface, it is specifically built for robust performance in high-power infrastructure environments.

Hot Tags :

50 Ohm Precision Test RF Adapter

DC to 6GHz Test RF Adapter

M29 to M29 Test RF Adapter
