N Female to eNEX 10 Male Low PIM Test RF Adapter N(F)-eNEX10(M)

N Female to eNEX 10 Male Low PIM Test RF Adapter N(F)-eNEX10(M)

This precision-engineered N Female to eNEX 10 Male Test RF Adapter is a specialized interface solution meticulously designed for ultra-low intermodulation and high electrical stability in advanced telecommunications and measurement systems.

  • Part Number :

    N(F)-eNEX 10(M)

  • Product Category :

    rf adapter & cable assembly
Inquire Now

Product Overview

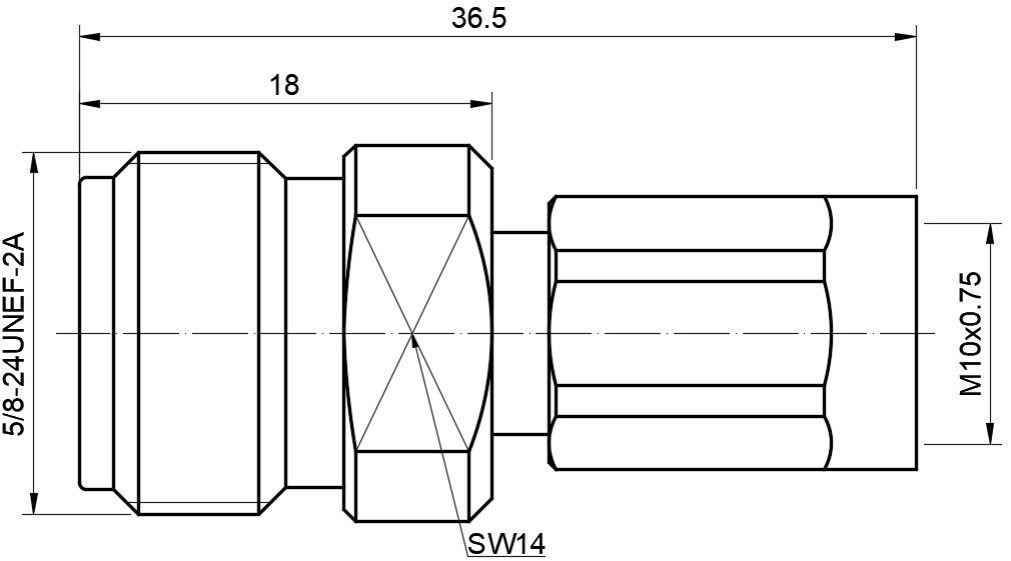

The N(F)-eNEX 10(M) is a professional 50 Ohm Low PIM Test RF Adapter designed to bridge the gap between N-type and eNEX 10 connector standards. With a total axial length of 36.5mm and an integrated SW14 wrench flat, it ensures a secure, repeatable, and low-loss connection for both laboratory and field verification.



Product Specifications / Attributes

  • Characteristic Impedance: 50Ω.
  • Frequency Range: DC to 6GHz.
  • VSWR (Voltage Standing Wave Ratio): ≤ 1.15.
  • Passive Intermodulation (IM3): ≤ -165dBc @ 2x20W @ 3GHz.
  • Dielectric Withstanding Voltage: 1000V.
  • Insulation Resistance: 5000MΩ.
  • This DC to 6GHz Test RF Adapter utilizes high-grade brass and phosphor bronze components with PTFE insulation to maintain superior signal integrity across its entire bandwidth.



Features&Benefits

  • Superior PIM Performance: This Brass Phosphor Bronze Test RF Adapter is optimized for minimal signal reflection and ultra-low passive intermodulation, making it ideal for high-power wireless infrastructure testing.
  • Robust Mechanical Design: Features precision-machined 5/8-24UNEF-2A and M10x0.75 threads to maintain electrical integrity through repeated mating cycles.
  • Integrated Installation Support: Includes a built-in SW14 wrench flat that allows for precise and secure torque application during mounting onto test equipment.
  • Space-Efficient Profile: The compact 36.5mm profile allows for easy integration into high-density test fixtures and telecommunications base station panels.



Packing Details

If you need detailed information about our packaging specifications and requirements, please feel free to contact us directly. We will be happy to provide you with the details.



Applications

  • 4G/5G base station testing and telecommunications infrastructure.
  • Passive Intermodulation (PIM) measurement and verification.
  • High-power RF and microwave signal routing.
  • RF laboratory testing, instrument calibration, and field verification.
  • Automated Test Equipment (ATE) system integration.



Frequently Asked Questions (FAQ)

  • Q: What is the Passive Intermodulation (PIM) rating for this model?
  • A: This specific Test RF Adapter features an exceptional Third-Order Intermodulation (IM3) rating of ≤ -165dBc @ 2x20W @ 3GHz, which is critical for precision measurement.
  • Q: What metallic materials ensure the reliability of the N(F)-eNEX 10(M)?
  • A: The adapter is constructed using premium Brass and Phosphor Bronze for the metallic components to provide excellent mechanical durability and electrical conductivity.
  • Q: Does this adapter include features for secure manual installation?
  • A: Yes, the body features an integrated SW14 wrench flat that allows for accurate torque application when mounting the component onto measurement instruments.

Hot Tags :

50 Ohm Low PIM Test RF Adapter

DC to 6GHz Test RF Adapter

Brass Phosphor Bronze Test RF Adapter
