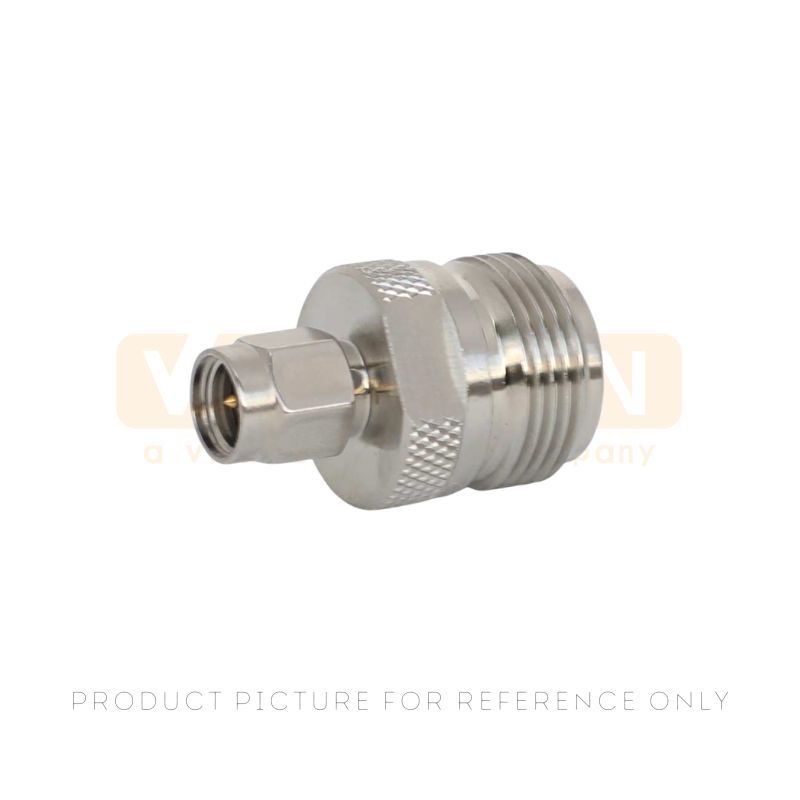

N Female to SMA Male Precision High Performance Test RF Adapter N(F)-SMA(M)

N Female to SMA Male Precision High Performance Test RF Adapter N(F)-SMA(M)

This high-performance N Female to SMA Male Test RF Adapter is meticulously engineered to provide a seamless and reliable interface between different connector standards, ensuring superior signal integrity for precision high-frequency measurement applications.

  • Part Number :

    N(F)-SMA(M)

  • Product Category :

    Test RF Adapter
Inquire Now

Product Overview

The N(F)-SMA(M) is a professional-grade 50 Ohm Precision Test RF Adapter designed for rigorous laboratory and infrastructure verification. Featuring a total body length of 27.3mm and high-precision machining, it offers a stable and low-loss interface for high-density hardware configurations where electrical performance is critical.



Product Specifications / Attributes

  • Characteristic Impedance: 50Ω.
  • Frequency Range: DC to 6GHz.
  • VSWR (Voltage Standing Wave Ratio): ≤1.15.
  • Dielectric Withstanding Voltage: 500V.
  • Insulation Resistance: 5000MΩ.
  • Materials: Brass and Beryllium Copper with PTFE insulation.
  • This DC to 6GHz Test RF Adapter features a standard 5/8-24UNEF-2A interface on the N-type side and includes an integrated SW14 wrench flat to ensure secure and accurate installation.



Features&Benefits

  • Superior Signal Performance: Optimized for a low VSWR of 1.15 or less to minimize signal reflection and transmission loss in sensitive RF circuits.
  • Robust Construction: Manufactured as a high-quality Brass Beryllium Copper Test RF Adapter, ensuring excellent electrical conductivity and mechanical durability for repeated mating cycles in professional environments.

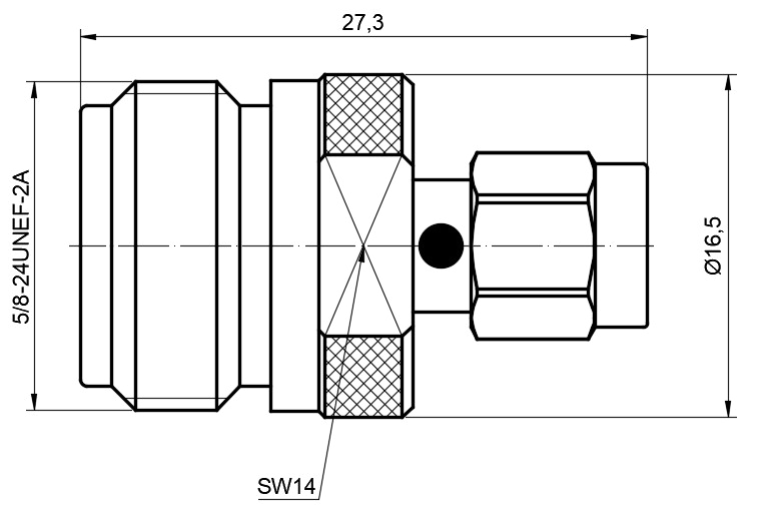

  • Precision Engineering: Built to strict industrial tolerances with a maximum diameter of Ø16.5mm, making it suitable for compact test setups.



Packing Details

If you need detailed information about our packaging specifications and requirements, please feel free to contact us directly. We will be happy to provide you with the details.



Applications

  • RF and microwave laboratory testing and instrument calibration.
  • Telecommunications infrastructure (base stations) and signal routing.
  • Wireless communication module verification (5G, IoT).
  • Automated Test Equipment (ATE) system integration.
  • Research and development for high-speed data transmission hardware.



Frequently Asked Questions (FAQ)

  • Q: What is the maximum frequency supported by this Test RF Adapter?
  • A: This specific model is designed for high-performance signal transmission across a frequency range of DC up to 6GHz.
  • Q: What metallic materials are used to ensure the reliability of the N(F)-SMA(M)?
  • A: It is constructed using high-quality Brass and Beryllium Copper for the metallic components to ensure superior electrical performance and durability.
  • Q: Does this adapter include features for secure manual tightening?
  • A: Yes, it features an integrated SW14 wrench flat that allows for precise and secure torque application during mounting onto test equipment.
