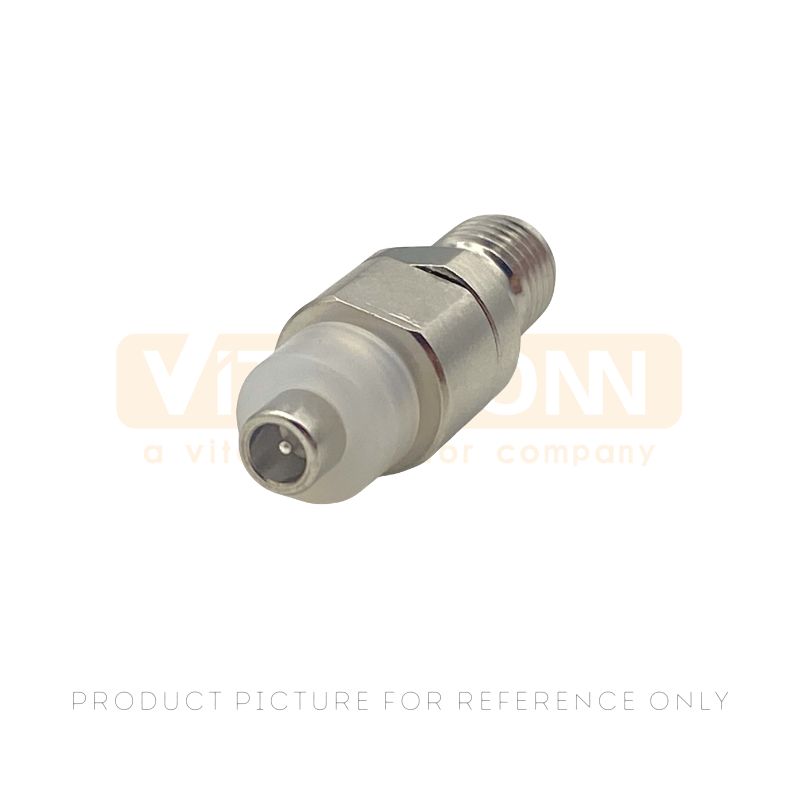

SMA Female to eEBC Male Precision High Performance Test RF Adapter SMA(F)-eEBC(M)-01

SMA Female to eEBC Male Precision High Performance Test RF Adapter SMA(F)-eEBC(M)-01

This professional-grade SMA Female to eEBC Male Test RF Adapter is meticulously engineered to provide a seamless and reliable interface between different connector standards, ensuring superior signal integrity for precision high-frequency measurement applications.

  • Part Number :

    SMA(F)-eEBC(M)-01

  • Product Category :

    Test RF Adapter
Inquire Now

Product Overview

The SMA(F)-eEBC(M)-01 is a premium 50 Ohm Precision Test RF Adapter designed for rigorous laboratory and infrastructure verification. Built with high-precision machining, it offers a stable and low-loss interface for high-density hardware configurations where both electrical performance and mechanical space are critical factors.



Product Specifications / Attributes

  • Characteristic Impedance: 50Ω.
  • Frequency Range: DC to 6GHz.
  • VSWR (Voltage Standing Wave Ratio): ≤1.15.
  • Dielectric Withstanding Voltage: 500V.
  • Insulation Resistance: 1000MΩ.

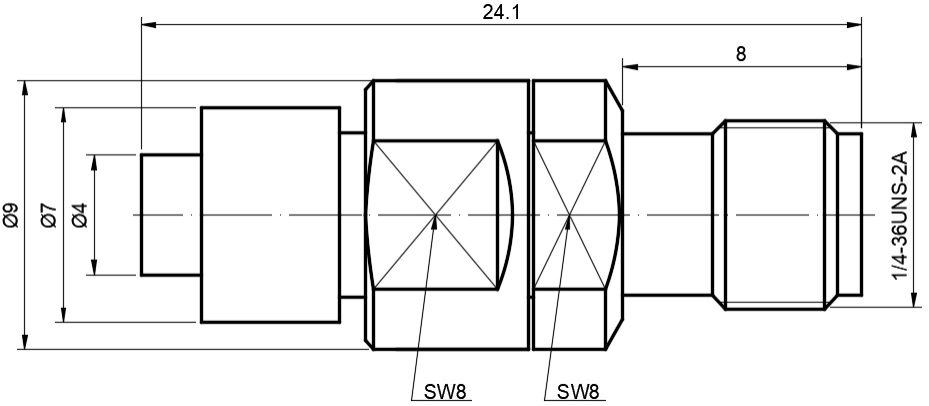

  • This DC to 6GHz Test RF Adapter features standard 1/4-36UNS-2A threads on the SMA interface to ensure repeatable performance and secure mating cycles.



Features&Benefits

  • Superior Signal Integrity: Optimized for a low VSWR of 1.15 or less to minimize signal reflection and transmission loss in sensitive RF circuits.
  • Robust Construction: Manufactured as a high-quality Brass Beryllium Copper Test RF Adapter, ensuring excellent electrical conductivity and mechanical durability for repeated mating cycles in professional environments.
  • Precision Engineering: Built with a combination of high-grade metallic contacts and PTFE insulation to guarantee consistent dielectric stability across its entire operational bandwidth.
  • Secure Installation: Includes integrated wrench flats that allow for precise and secure torque application during mounting onto test equipment.



Packing Details

If you need detailed information about our packaging specifications and requirements, please feel free to contact us directly. We will be happy to provide you with the details.



Applications

  • RF and microwave laboratory testing and instrument calibration.
  • Telecommunications infrastructure (base stations) and signal routing.
  • Wireless communication module verification (5G, IoT).
  • Automated Test Equipment (ATE) system integration.
  • Research and development for high-speed data transmission hardware.



Frequently Asked Questions (FAQ)

  • Q: What is the maximum frequency supported by this Test RF Adapter?
  • A: This specific model is designed for high-performance signal transmission across a frequency range from DC up to 6GHz.
  • Q: What materials are used to ensure the reliability of the SMA(F)-eEBC(M)-01?
  • A: It is constructed using premium Brass and Beryllium Copper for the metallic components and PTFE for internal insulation to ensure superior electrical integrity.
  • Q: Is this adapter suitable for precision measurement environments?
  • A: Yes, as a dedicated Test RF Adapter with an optimized VSWR of ≤1.15, it is specifically engineered for accuracy in sensitive high-frequency test setups.
