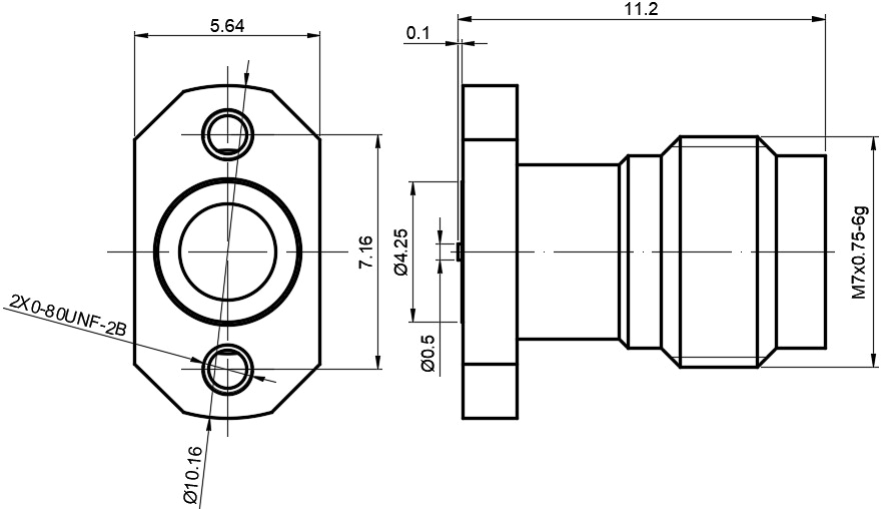

RF Adapter&Cable Assembly Solderless RF Connector2.4mm Female Solderless RF Connector DC to 50GHz 50 Ohm 2.4-KFD01G
The VITALCONN 2.4-KFD01G is a precision 2.4mm female Solderless RF Connector rated for operation up to 50 GHz, making it an ideal choice for millimeter-wave test and measurement applications.
Constructed with a rugged stainless steel body, gold-plated beryllium copper center contact, and high-performance PEEK dielectric, this clamp-style solderless connector ensures outstanding electrical repeatability and mechanical reliability in demanding lab and production environments.
Part Number :
2.4-KFD01GProduct Category :
rf adapter & cable assembly
Product Overview
VITALCONN's 2.4-KFD01G brings laboratory-grade performance to field-deployable RF systems with its true 50 GHz-capable Solderless RF Connector design. The precision 2.4mm air-dielectric interface achieves a VSWR of 1.25 or less across the full DC-to-50 GHz band, making it suitable for the most demanding millimeter-wave measurements.
The solderless clamp mechanism enables rapid cable assembly changes without specialized soldering equipment, while the PEEK dielectric provides superior thermal stability compared to traditional PTFE in high-frequency applications.
Product Specifications / Attributes
|
Parameter |
Value |
|
Characteristic Impedance |
50 Ω |
|
Frequency Range |
DC to 50 GHz |
|
VSWR |
≤ 1.25 (DC to 50 GHz) |
|
Insulation Resistance |
≥ 1000 MΩ |
|
Connector Interface |
2.4 mm (compatible with 1.85 mm) |
|
Gender |
Female (Jack) |
|
Body Material |
Stainless Steel (Passivated) |
|
Contact Material |
Beryllium Copper (Gold-plated) |
|
Dielectric Material |
PEEK |
|
Assembly Method |
Clamp / Solderless (Field Replaceable) |
Features&Benefits
● Extended frequency coverage up to 50 GHz supports full V-band millimeter-wave measurements
●Solderless clamp assembly preserves cable dielectric integrity for maximum phase stability
● PEEK dielectric offers superior thermal and mechanical stability over traditional PTFE materials
●Stainless steel body with passivated finish withstands repeated mating cycles in test environments
●Gold-plated beryllium copper center contact provides consistent low-loss RF performance
●Air-dielectric 2.4mm interface design achieves mode-free operation through the full frequency range
●Mechanically mateable with 1.85mm connectors for seamless integration into existing test setups
●Field-replaceable architecture enables quick connector changes without factory return or specialized tools
Packing Details
If you need detailed information about our packaging specifications and requirements, please feel free to contact us directly. We will be happy to provide you with the details.
