RF Adapter&Cable Assembly Test Load RF Adapter / Connector50 Ohm 6GHz 2W SMA Test Load RF Connector SMA-JRD-2W
The SMA-JRD-2W is a 50-ohm SMA termination Test Load RF Connector designed for DC to 6GHz RF and microwave applications.
With an average power rating of 2W and VSWR of 1.1 or less, this precision RF load provides accurate signal termination for laboratory test setups, production line calibration, and system-level impedance matching in RF engineering environments.
Part Number :
SMA-JRD-2WProduct Category :
rf adapter & cable assembly

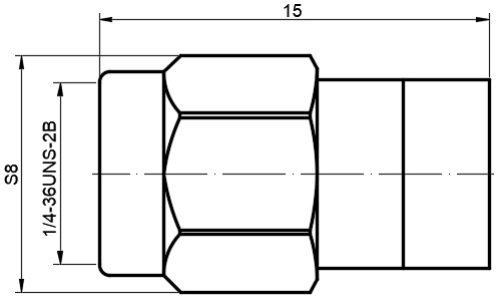

Product Overview
Engineered as a precision 50 Ohm DC 6GHz Test Load RF Connector, the SMA-JRD-2W delivers reliable RF signal termination with brass construction and PTFE dielectric insulation.
The SMA interface ensures broad compatibility with standard RF test cables and adapters, while the 2W average power handling capability makes it suitable for low-power device testing, antenna system calibration, and vector network analyzer verification.
Product Specifications / Attributes
|
Characteristic Impedance |
50 Ω |
|
Frequency Range |
DC ~ 6 GHz |
|
Average Power |
2 W |
|
VSWR |
≤ 1.1 |
|
Dielectric Withstanding Voltage |
500 V |
|
Insulation Resistance |
1000 MΩ |
|
Body Material |
Brass |
|
Dielectric Material |
PTFE (Polytetrafluoroethylene) |
|
Connector Interface |
SMA |
|
Operating Temperature |
-55°C to +165°C |
|
RoHS Compliant |
Yes |
Features&Benefits
● 50-ohm precision impedance matching ensures accurate RF signal termination across DC to 6GHz band
● VSWR of 1.1 maximum minimizes signal reflection for reliable measurement accuracy in test bench setups
● 2W average power rating supports low-power device characterization and calibration applications
● Brass body with PTFE dielectric provides robust mechanical stability and consistent electrical performance
● SMA interface offers universal compatibility with standard RF cables, adapters, and test fixtures
● Compact form factor ideal for portable field test kits and dense laboratory instrument panels
Packing Details
If you need detailed information about our packaging specifications and requirements, please feel free to contact us directly. We will be happy to provide you with the details.
Applications
● Vector network analyzer (VNA) calibration and verification
● RF power amplifier output termination
● Antenna system impedance matching and testing
● Production-line RF module calibration
● Laboratory signal generator and spectrum analyzer setups
● Telecommunication base station maintenance and field testing
