RF Adapter&Cable Assembly Test Load RF Adapter / Connector50 Ohm 6GHz 5W N Type Test Load RF Connector N-JRD-5W
The N-JRD-5W is a 50-ohm N-type termination Test Load RF Connector engineered for DC to 6GHz RF and microwave applications.
Featuring an average power rating of 5W and a sliding coupling nut mechanism, this precision RF load delivers accurate signal termination for high-power laboratory testing, production calibration, and field measurement in RF and telecommunication systems.
Part Number :
N-JRD-5WProduct Category :
rf adapter & cable assembly
Product Overview
Designed as a high-power 50 Ohm 5W N Type Test Load RF Connector, the N-JRD-5W combines brass construction with PTFE dielectric to ensure stable 50-ohm termination across the full DC to 6GHz band.
The innovative sliding coupling nut allows forward and backward movement, enabling quick connect-disconnect operation in production test environments while maintaining secure RF contact during measurement.

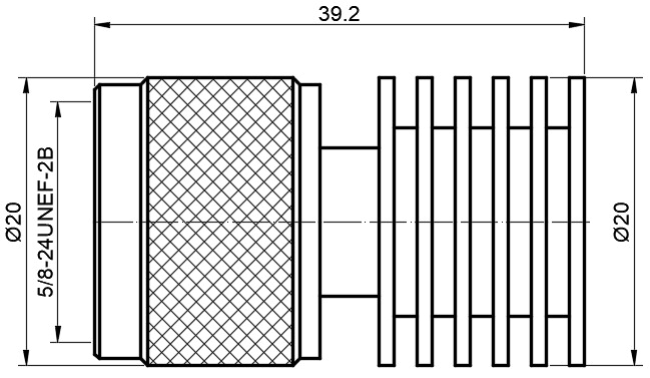

Product Specifications / Attributes
|
Characteristic Impedance |
50 Ω |
|
Frequency Range |
DC ~ 6 GHz |
|
Average Power |
5 W |
|
VSWR |
≤ 1.15 |
|
Dielectric Withstanding Voltage |
500 V |
|
Insulation Resistance |
1000 MΩ |
|
Body Material |
Brass |
|
Dielectric Material |
PTFE (Polytetrafluoroethylene) |
|
Connector Interface |
N Type |
|
Coupling Nut |
Sliding (forward and backward) |
|
Operating Temperature |
-55°C to +165°C |
|
RoHS Compliant |
Yes |
Features&Benefits
● 50-ohm precision impedance ensures accurate RF signal termination from DC to 6GHz
● 5W average power rating supports medium-power device testing and system calibration
● VSWR of 1.15 maximum provides reliable measurement accuracy for RF engineering applications
● Sliding coupling nut enables quick-connect operation for high-throughput production test lines
● Brass body with PTFE dielectric delivers mechanical robustness and consistent electrical performance
● N-type interface ensures compatibility with standard N-connector RF cables and test assemblies
Packing Details
If you need detailed information about our packaging specifications and requirements, please feel free to contact us directly. We will be happy to provide you with the details.
Applications
● RF power amplifier testing and output termination
● Vector network analyzer (VNA) calibration
● Base station and antenna system maintenance
● Production-line RF module verification
● Telecommunication system impedance matching
● Laboratory RF and microwave measurement setups
